Technical details
Playback media: Y
Audio in (mini jack): Yes
Compliance certificates: REACH, TÜV mark, WEEE, CB, EAC, RoHS, CE
Sustainability certificates: ErP
Features
Suitable for indoor use: Yes
Design
Panel mounting interface: 200 x 200 mm
VESA mounting: Yes

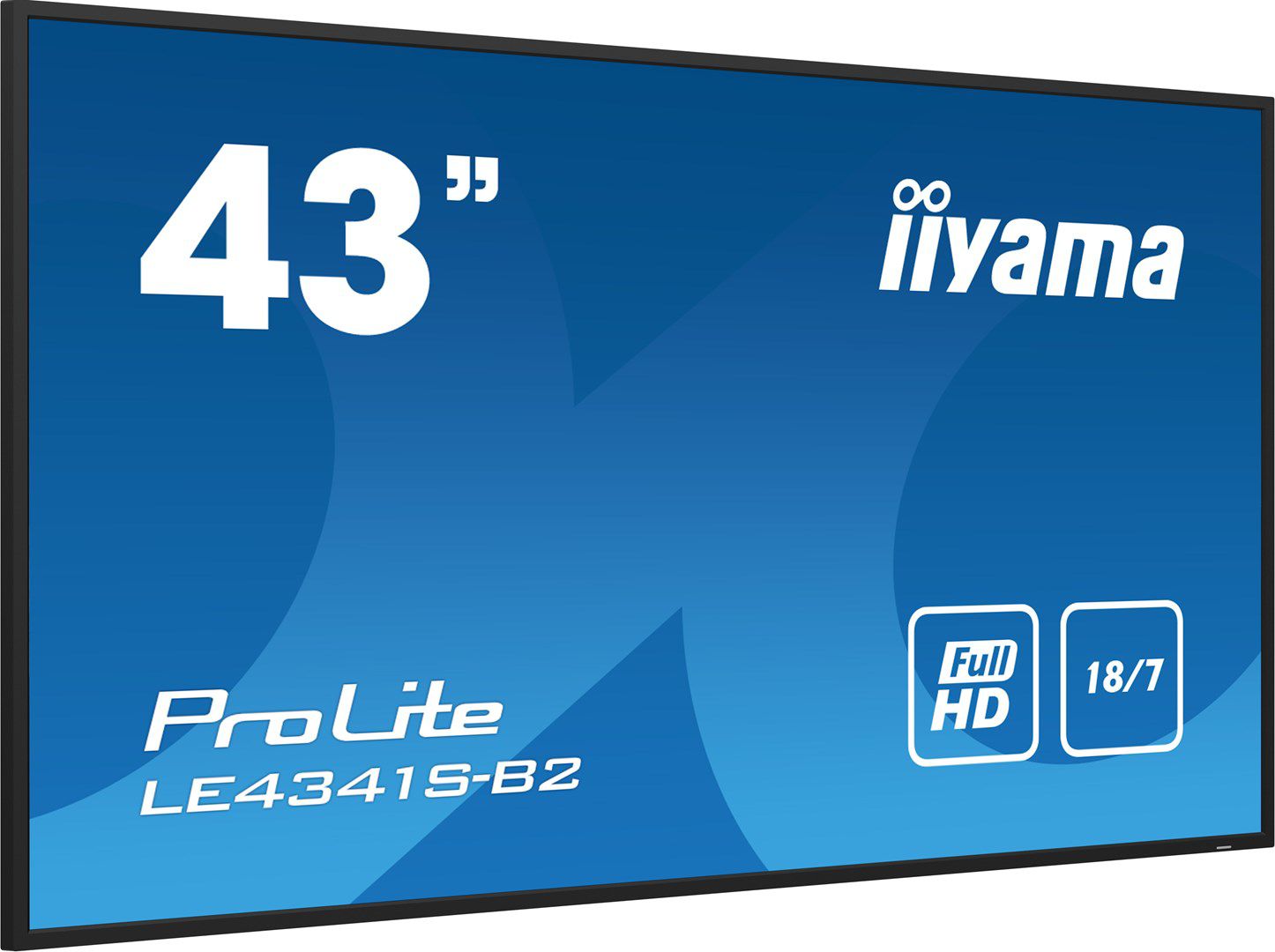

Product design: Digital signage flat panel
Product colour: Black
Orientation: Horizontal
Bezel width (bottom): 1.4 cm
Bezel width (side): 1.4 cm
Bezel colour: Black
Bezel width (top): 1.4 cm
Power
Power consumption (typical): 53 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (standby): 0.3 W
Power consumption (off): 0.3 W
Energy efficiency scale: A to G
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 53 kWh
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Weight & dimensions
Depth: 54 mm
Height: 557.5 mm
Width: 968 mm
Weight: 8.4 kg
Display depth: 54 mm
Display height: 557.5 mm
Display weight: 8.4 kg
Display width: 968 mm
Network
Ethernet LAN: Yes
Performance
HDCP: Yes
Number of OSD languages: 11
On Screen Display (OSD) languages: German, Italian, Dutch, Russian, Czech, Japanese, Polish, English, Spanish, Traditional Chinese, French
On Screen Display (OSD): Yes
Mean time between failures (MTBF): 50000 h
Operating hours (hours/days): 18/7
HDCP version: 2.2
Packaging data
Package height: 683 mm
Package width: 1075 mm
Package depth: 127 mm
Packaging content
Cables included: HDMI, AC, RS-232
Batteries included: No
Remote control included: Yes
Display
Panel type: IPS
Horizontal scan range: 30 - 83 kHz
Display diagonal (metric): 108 cm
Response time: 8 ms
Contrast ratio (typical): 1200:1
Pixel pitch: 0.49 x 0.49 mm
Viewing angle, vertical: 178°
Display technology: LCD
Display diagonal: 108 cm (42.5")
Display number of colours: 1.07 billion colours
Display resolution: 1920 x 1080 pixels
Native aspect ratio: 16:9
Viewing angle, horizontal: 178°
HD type: Full HD
Native refresh rate: 60 Hz
Display brightness: 350 cd/m²
Active display area (W x H): 940.9 x 529.3 mm
Haze rate: 1%
Audio
Built-in speaker(s): Yes
RMS rated power: 20 W
Number of built-in speakers: 2
Ports & interfaces
HDMI version: 2.0
USB port: Yes
HDMI ports quantity: 3
Ethernet LAN (RJ-45) ports: 1
USB version: 2.0
Audio (L/R) in: 1
USB ports quantity: 1
VGA (D-Sub) input ports: 1
Remote (IR) output: 1
RS-232C: Yes
Audio (L/R) out: 1
Remote (IR) input: 1
Other features
Quick start guide: Yes
Power supply type: Internal
Cable management: Yes
