Technical details
Playback media: Y
Compliance certificates: RoHS, CE, TÜV mark, REACH, CB, EAC, WEEE
Audio in (mini jack): Yes
Warranty period: 5 year(s)
OPS slot: 1
Sustainability certificates: ErP
Design
Bezel colour: Black
Product colour: Black

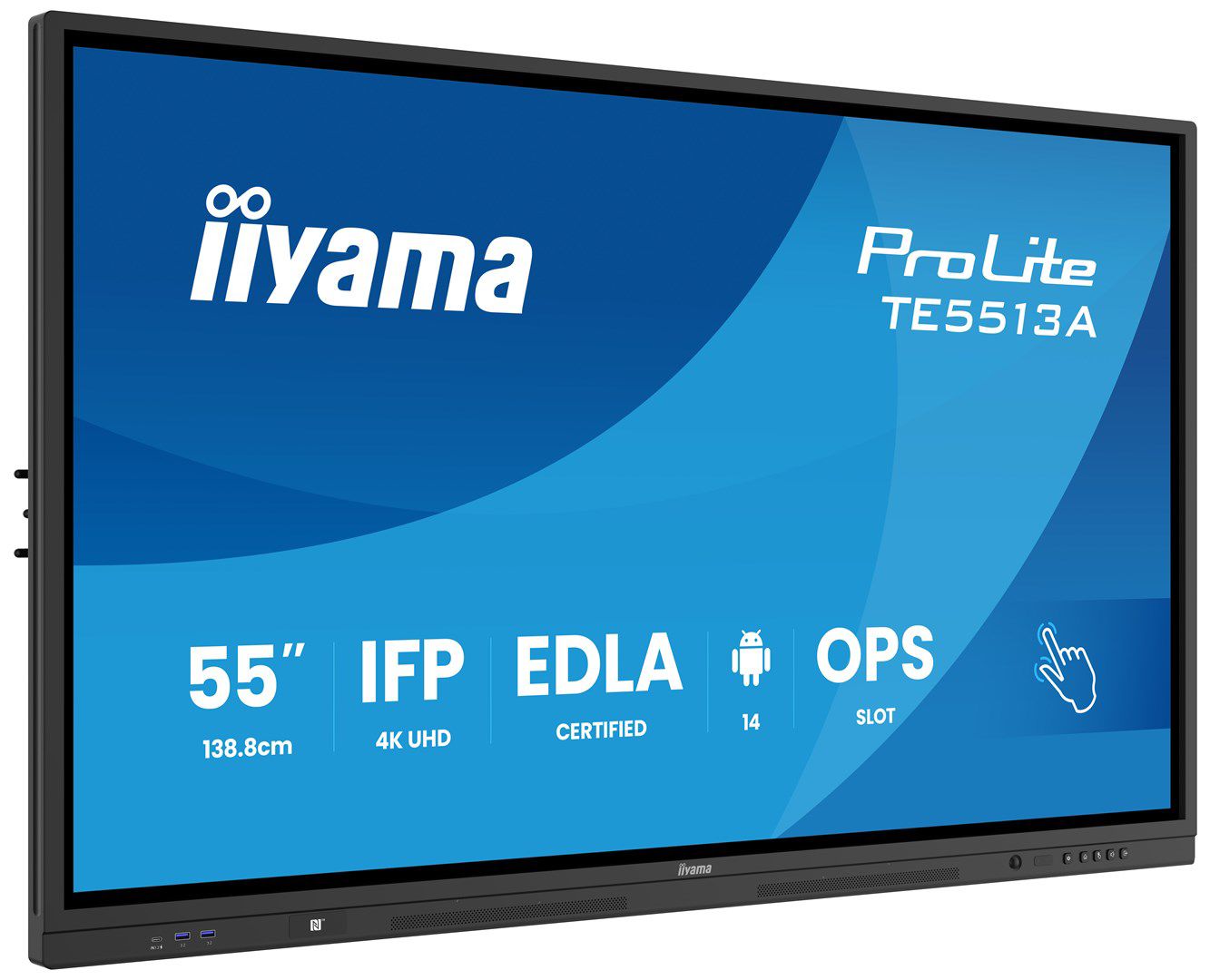

Product design: Interactive flat panel
VESA mounting: Yes
Placement supported: Indoor
Panel mounting interface: 400 x 400
Anti-glare screen: Yes
Orientation: Horizontal
Positioning accuracy: 1 mm
Power
Power consumption (off): 0.3 W
AC input frequency: 50/60 Hz
Power consumption (standby): 0.5 W
AC input voltage: 100 - 240 V
Power consumption (typical): 125 W
Energy consumption (SDR) per 1000 hours: 125 kWh
Energy efficiency scale: A to G
Energy efficiency class (HDR): Not available
Energy efficiency class (SDR): G
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Weight & dimensions
Weight: 28.7 kg
Width: 1267 mm
Height: 765.4 mm
Depth: 86 mm
Display depth: 86 mm
Display height: 765.4 mm
Display weight: 28.7 kg
Display width: 1267 mm
Network
Wi-Fi standards: Wi-Fi 6 (802.11ax)
Ethernet LAN data rates: 1000
Wi-Fi: Yes
Ethernet LAN: Yes
Performance
On Screen Display (OSD): Yes
HDCP: Yes
Purpose: Education
On Screen Display (OSD) languages: Ukrainian, Finnish, Polish, Swedish, Hungarian, Lithuanian, Spanish, English, Norwegian, Russian, Czech, Estonian, German, Italian, Dutch, Danish, LAT, CAT, French
Operating hours (hours/days): 18/7
HDCP version: 2.2
Mean time between failures (MTBF): 50000 h
Number of OSD languages: 13
Packaging data
Package depth: 185 mm
Package height: 865 mm
Package weight: 34.8 kg
Package width: 1385 mm
Packaging content
Cables included: USB, HDMI, AC
Remote control included: Yes
Stylus pen: Yes
Number of stylus pens: 4
Display
Response time: 8 ms
HD type: 4K Ultra HD
Horizontal scan range: 30 - 135 kHz
Display resolution: 3840 x 2160 pixels
Display diagonal: 138.7 cm (54.6")
Viewing angle, horizontal: 178°
Contrast ratio (typical): 1200:1
Display diagonal (metric): 138.8 cm
Viewing angle, vertical: 178°
Touchscreen: Yes
Panel type: IPS
Display number of colours: 1.07 billion colours
Pixel pitch: 0.315 x 0.315 mm
Native aspect ratio: 16:9
Display brightness: 450 cd/m²
Surface hardness: 7H
Native refresh rate: 60 Hz
Touchscreen technology: PureTouch-IR
Active display area (W x H): 1210 x 680 mm
Glass thickness: 3.2 mm
Number of simultaneous touchpoints: 40
Audio
Built-in speaker(s): Yes
Number of built-in speakers: 2
RMS rated power: 60 W
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
DisplayPorts quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB port: Yes
DisplayPort version: 1.2
HDMI version: 2.0
HDMI ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2
OPS module slot: Yes
Audio Return Channel (ARC): Yes
HDMI output ports quantity: 1
USB ports quantity: 6
USB Power Delivery (USB PD): Yes
HDMI input ports quantity: 1
USB Power Delivery up to: 100 W
RS-232C: Yes
USB Type-C DisplayPort Alternate Mode: Yes
Compatible operating systems: All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Other features
Bluetooth: Yes
Quick start guide: Yes
Power supply type: Internal
Bluetooth version: 5.0
Computer system
Processor cores: 4
On-board graphics card model: ARM Mali-G52
Built-in processor: Yes
Operating system installed: Android
Internal memory: 8 GB
Processor frequency: 1.4 GHz
Computer system: Yes
Internal storage capacity: 128 GB
Processor architecture: ARM Cortex-A73
Operating system version: 14
