Power
Input voltage: 5 V
Power source type: USB, Battery
Battery capacity: 2600 mAh
Operational conditions
Operating temperature (T-T): 0 - 50 °C
Weight & dimensions
Depth: 100.4 mm
Width: 150.3 mm
Weight: 614 g
Height: 185.3 mm
Performance
Housing material: Thermoplastic urethane (TPU), Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Protection features: Drop proof, Waterproof, Dustproof
International Protection (IP) code: IP67
Product colour: Yellow, Black
LED indicators: Yes
Vibration function: Yes
Buzzer: Yes
Packaging data
Charging base: Yes
Ports & interfaces
Connectivity technology: Wired & Wireless
Standard interfaces: USB
Bluetooth: Yes
Scanning

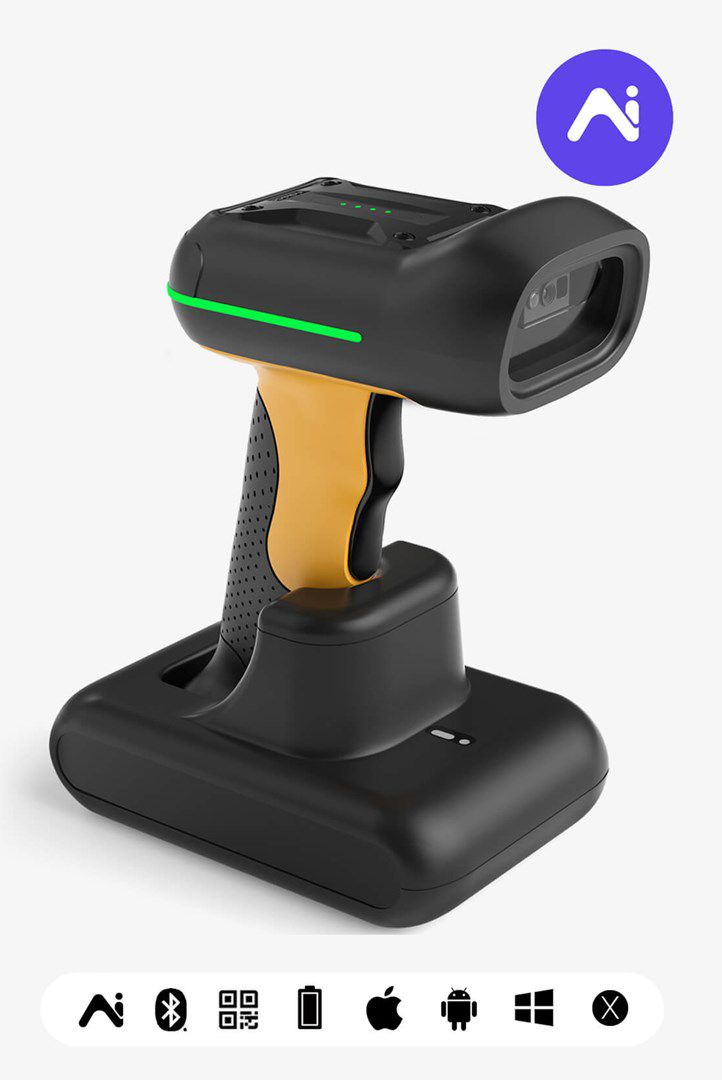

Type: Handheld bar code reader
Scanner type: 1D/2D
Sensor type: CMOS
2D (matrix & stacked) barcodes supported: QR Code, Data Matrix, Aztec Code, PDF417
Maximum scan width: 40 cm
Linear (1D) barcodes supported: Code 93, Industrial 2 of 5, GS1 Databar Limited, Codabar, ISSN, MSI, Matrix 2 of 5, GS1 DataBar, IATA, Code 11, EAN-13, EAN-8, UPC-A, GS1-128 (UCC/EAN-128), UPC-E, ISBN, Interleaved 2 of 5, GS1 DataBar Expanded, Code 39 (ASCII), Code 128, Standard 2 of 5
Trigger mode: Auto-induction, Manual
Tilt reading angle: 55 - 55°
Depth of field range: 30 cm
Optical sensor resolution (W x H): 640 x 480 pixels
