Design
Built-in display: No
LED indicators: Power, WAN, LAN, Data
Product colour: Black
Reset button: Yes

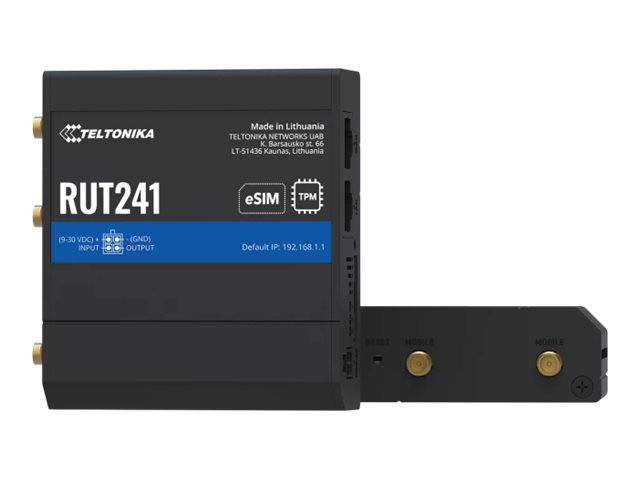

Device type: Cellular network router
Mounting: Wall/Pole/DIN-rail mounting
Housing material: Aluminium
Market positioning: Industrial
Power
Power source type: DC
Power consumption (typical): 6.5 W
Input voltage: 9 V
Security
Security algorithms: WPA3-SAE, AES-CCMP, WPA3-EAP, TKIP, OWE, WPA-PSK, WPA2-Enterprise-PEAP, EAP-TLS, WPA-EAP, WPA2-PSK
Network address translation (NAT): Yes
Firewall: Yes
DMZ support: Yes
Port forwarding: Yes
Operational conditions
Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 75 °C
Weight & dimensions
Depth: 83 mm
Width: 25 mm
Weight: 125 g
Height: 74 mm
Performance
Web-based management: Yes
Antennas quantity: 3
Antenna type: External
Antenna connector type: SMA
Built-in processor: Yes
GPS (satellite): No
Packaging content
Cables included: LAN (RJ-45)
Wireless LAN features
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi: Yes
WLAN data transfer rates supported: 300 Mbit/s
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
USB port: No
Mobile network
Data network: LTE, 4G, 3G, 2G
Short Message Service (SMS): Yes
4G standard: LTE
Ethernet LAN features
Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.11g, IEEE 802.11n, IEEE 802.3az, IEEE 802.11b
Ethernet LAN data rates: 10, 100
DHCP client: Yes
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN: Yes
IP routing: Yes
DHCP server: Yes
