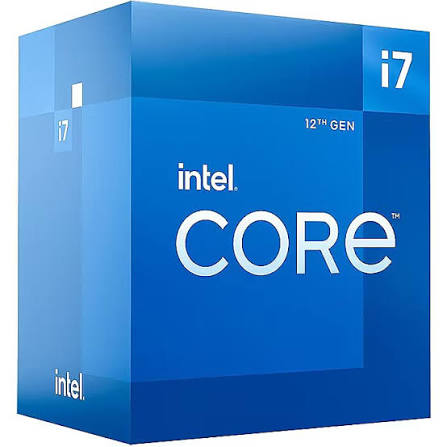

Intel Core i7-12700F processor 25 MB Smart Cache Box

Technical details
Status: Launched
Target market: Gaming, Content Creation
Launch date: Q1'22

Processor
Efficient cores: 4
Maximum number of DMI lanes: 8
Maximum turbo power: 180 W
Efficient-core base frequency: 1.6 GHz
Performance cores: 8
Box: Yes
Performance-core boost frequency: 4.8 GHz
Processor generation: 12th gen Intel® Core™ i7
Efficient-core boost frequency: 3.6 GHz
Performance-core base frequency: 2.1 GHz
Cooler included: Yes
Processor base power: 65 W
Processor cache: 25 MB
Processor family: Intel® Core™ i7
Processor model: i7-12700F
Processor boost frequency: 4.9 GHz
Processor cores: 12
Processor codename: Alder Lake
Processor operating modes: 64-bit
Processor threads: 20
Processor socket: LGA 1700
Processor manufacturer: Intel
Processor ARK ID: 134592
Processor cache type: Smart Cache
Memory bandwidth supported by processor (max): 76.8 GB/s
Bus type: DMI4

Graphics
On-board graphics card model: Not available
Discrete graphics card model: Not available
Discrete graphics card: No
On-board graphics card: No

Features
Export Control Classification Number (ECCN): 5A992CN3
Market segment: Desktop
Direct Media Interface (DMI) Revision: 4.0
Commodity Classification Automated Tracking System (CCATS): G167599
Use conditions: PC/Client/Tablet
Embedded options available: No
Maximum number of PCI Express lanes: 20
PCI Express slots version: 5.0, 4.0
PCI Express configurations: 1x16+1x4, 2x8+1x4
Thermal Monitoring Technologies: Yes
CPU configuration (max): 1
Execute Disable Bit: Yes
Scalability: 1S
Supported instruction sets: SSE4.1, AVX 2.0, SSE4.2
Idle States: Yes

Memory
Non-ECC: Yes
Maximum internal memory supported by processor: 128 GB
Memory types supported by processor: DDR5-SDRAM, DDR4-SDRAM
Memory bandwidth (max): 76.8 GB/s
Memory channels: Dual-channel

Operational conditions
Tjunction: 100 °C

Weight & dimensions
Processor package size: 45 x 37.5 mm

Processor special features
Intel® Boot Guard: Yes
Intel® Deep Learning Boost (Intel® DL Boost): Yes
Mode-based Execute Control (MBE): Yes
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0: Yes
Intel Turbo Boost Max Technology 3.0: Yes
Intel® Standard Manageability (ISM): Yes
Intel® Speed Shift Technology: Yes
Intel® Control-flow Enforcement Technology (CET): Yes
Intel® Thread Director: Yes
Intel® Volume Management Device (VMD): Yes
Intel® Turbo Boost Max Technology 3.0 frequency: 4.9 GHz
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Enhanced Intel SpeedStep Technology: Yes
Intel® Optane™ Memory Ready: Yes
Intel® AES New Instructions (Intel® AES-NI): Yes
Intel® Hyper Threading Technology (Intel® HT Technology): Yes
Intel® Turbo Boost Technology: 2.0
Intel® Secure Key: Yes
Intel 64: Yes
Intel Virtualization Technology (VT-x): Yes
Intel VT-x with Extended Page Tables (EPT): Yes
Intel® OS Guard: Yes

Other features
Maximum internal memory: 128 GB

Logistics data
Harmonized System (HS) code: 85423119
