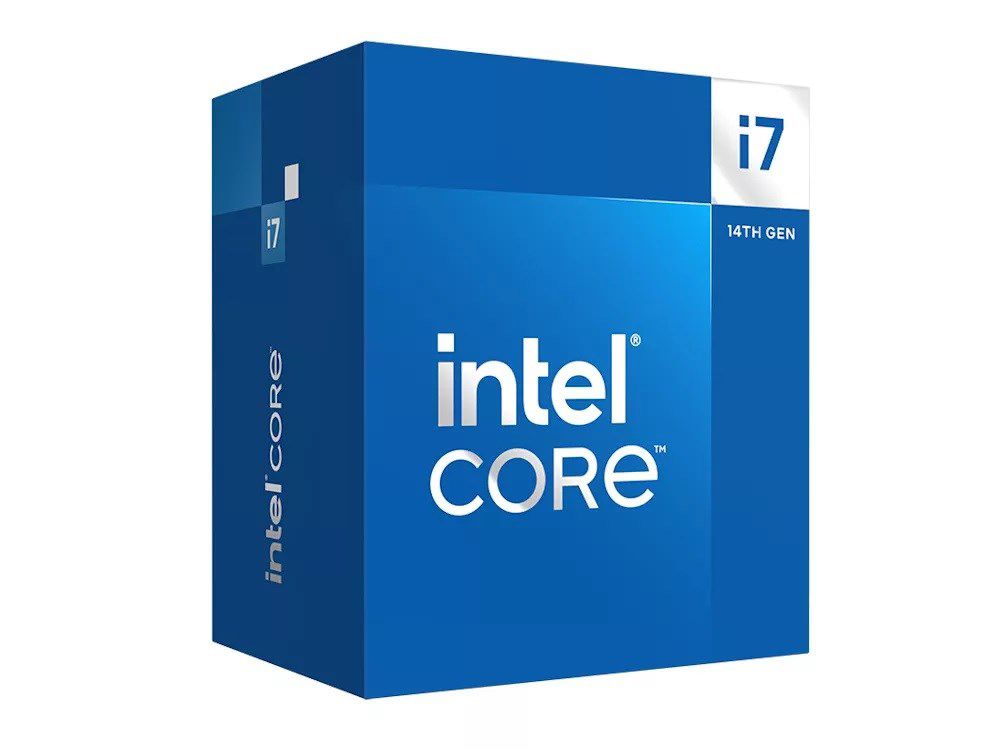

Intel Core i7-14700F processor 33 MB Smart Cache Box

Technical details
Status: Launched
Launch date: Q1'24

Processor
Performance cores: 8
Maximum turbo power: 219 W
Processor base power: 65 W
Processor generation: Intel® Core™ i7 (14th gen)
Efficient-core base frequency: 1.5 GHz
Efficient-core boost frequency: 4.2 GHz
Maximum number of DMI lanes: 8
Efficient cores: 12
Performance-core base frequency: 2.1 GHz
Performance-core boost frequency: 5.3 GHz
Memory bandwidth supported by processor (max): 89.6 GB/s
Processor cache type: Smart Cache
Stepping: B0
Processor operating modes: 64-bit
Box: Yes
Processor cores: 20
Processor model: i7-14700F
Processor codename: Raptor Lake
Processor manufacturer: Intel
Processor ARK ID: 236854
Processor socket: LGA 1700
Processor threads: 28
Processor boost frequency: 5.4 GHz
Processor cache: 33 MB
Processor family: Intel® Core™ i7
Cooler included: Yes

Graphics
On-board graphics card: No
Discrete graphics card model: Not available
On-board graphics card model: Not available
Discrete graphics card: No

Features
Direct Media Interface (DMI) Revision: 4.0
Use conditions: PC/Client/Tablet
Export Control Classification Number (ECCN): 5A992C
Commodity Classification Automated Tracking System (CCATS): 740.17B1
PCI Express slots version: 5.0, 4.0
Supported instruction sets: SSE4.2, SSE4.1, AVX 2.0
Thermal Monitoring Technologies: Yes
Idle States: Yes
CPU configuration (max): 1
PCI Express configurations: 1x16+1x4, 2x8+1x4
Embedded options available: No
Market segment: Desktop
Maximum number of PCI Express lanes: 20
Execute Disable Bit: Yes
Scalability: 1S

Memory
Maximum internal memory supported by processor: 192 GB
Memory types supported by processor: DDR4-SDRAM, DDR5-SDRAM
Memory bandwidth (max): 89.6 GB/s
Memory channels: Dual-channel

Operational conditions
Tjunction: 100 °C

Weight & dimensions
Processor package size: 45 x 37.5 mm

Processor special features
Intel® Control-flow Enforcement Technology (CET): Yes
Intel® Turbo Boost Max Technology 3.0 frequency: 5.4 GHz
Intel® Thread Director: Yes
Intel® Standard Manageability (ISM): Yes
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0: Yes
Intel® Hyper Threading Technology (Intel® HT Technology): Yes
Intel VT-x with Extended Page Tables (EPT): Yes
Intel 64: Yes
Intel® OS Guard: Yes
Intel® AES New Instructions (Intel® AES-NI): Yes
Intel® Turbo Boost Technology: 2.0
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel Virtualization Technology (VT-x): Yes
Intel® Speed Shift Technology: Yes
Intel® Boot Guard: Yes
Mode-based Execute Control (MBE): Yes
Enhanced Intel SpeedStep Technology: Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
Intel Turbo Boost Max Technology 3.0: Yes
Intel® Secure Key: Yes
Intel® Volume Management Device (VMD): Yes

Other features
Maximum internal memory: 192 GB
L2 cache: 28672 KB

Logistics data
Harmonized System (HS) code: 8542310001
