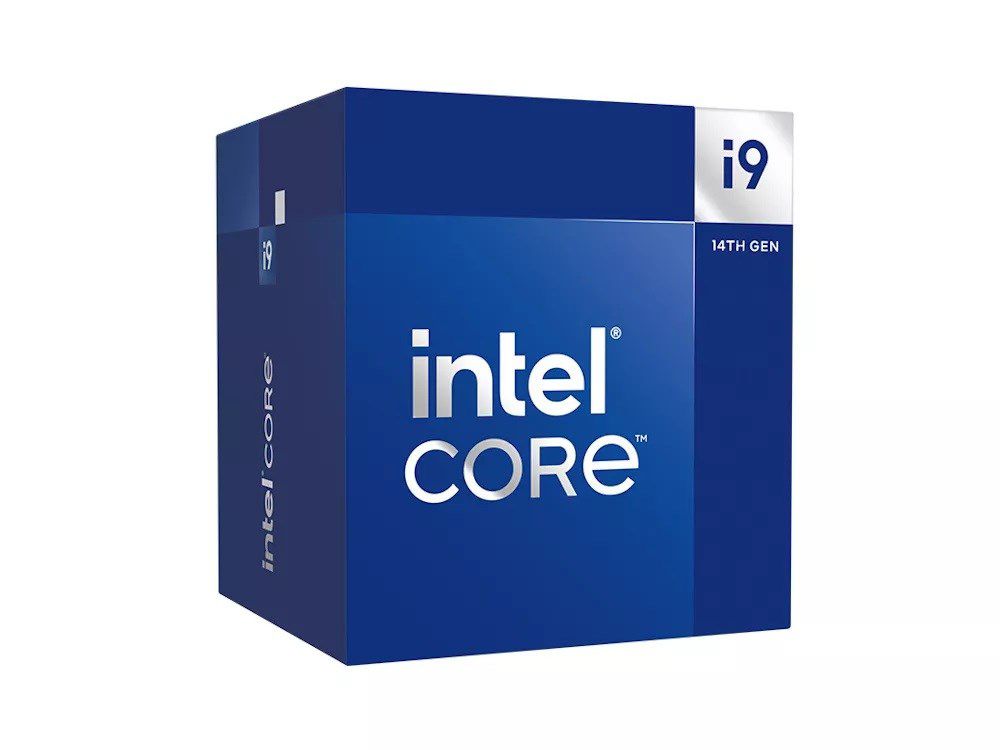

Intel Core i9-14900F processor 36 MB Smart Cache Box

Technical details
Status: Launched
Launch date: Q1'24

Processor
Processor threads: 32
Processor ARK ID: 236853
Processor operating modes: 64-bit
Processor cache type: Smart Cache
Stepping: B0
Processor codename: Raptor Lake
Maximum turbo power: 219 W
Processor cache: 36 MB
Performance cores: 8
Processor manufacturer: Intel
Processor model: i9-14900F
Efficient cores: 16
Processor socket: LGA 1700
Memory bandwidth supported by processor (max): 89.6 GB/s
Processor generation: Intel® Core™ i9 (14th gen)
Processor base power: 65 W
Performance-core boost frequency: 5.4 GHz
Performance-core base frequency: 2 GHz
Processor cores: 24
Processor family: Intel® Core™ i9
Box: Yes
Maximum number of DMI lanes: 8
Cooler included: Yes

Graphics
Discrete graphics card model: Not available
On-board graphics card: No
Discrete graphics card: No
On-board graphics card model: Not available

Features
Thermal Monitoring Technologies: Yes
PCI Express slots version: 5.0, 4.0
Supported instruction sets: SSE4.2, SSE4.1, AVX 2.0
Direct Media Interface (DMI) Revision: 4.0
PCI Express configurations: 1x16+1x4, 2x8+1x4
Market segment: Desktop
CPU configuration (max): 1
Execute Disable Bit: Yes
Commodity Classification Automated Tracking System (CCATS): 740.17B1
Idle States: Yes
Embedded options available: No
Maximum number of PCI Express lanes: 20
Use conditions: PC/Client/Tablet
Scalability: 1S
Export Control Classification Number (ECCN): 5A992C

Memory
Memory types supported by processor: DDR5-SDRAM, DDR4-SDRAM
Memory bandwidth (max): 89.6 GB/s
Maximum internal memory supported by processor: 192 GB
Memory channels: Dual-channel

Operational conditions
Tjunction: 100 °C

Weight & dimensions
Processor package size: 45 x 37.5 mm

Processor special features
Intel® AES New Instructions (Intel® AES-NI): Yes
Intel® OS Guard: Yes
Mode-based Execute Control (MBE): Yes
Intel® Standard Manageability (ISM): Yes
Intel® Volume Management Device (VMD): Yes
Intel® Hyper Threading Technology (Intel® HT Technology): Yes
Enhanced Intel SpeedStep Technology: Yes
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel Virtualization Technology (VT-x): Yes
Intel VT-x with Extended Page Tables (EPT): Yes
Intel 64: Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
Intel® Thread Director: Yes
Intel Turbo Boost Max Technology 3.0: Yes
Intel® Secure Key: Yes
Intel® Thermal Velocity Boost: Yes
Intel® Speed Shift Technology: Yes
Intel® Control-flow Enforcement Technology (CET): Yes
Intel® Turbo Boost Max Technology 3.0 frequency: 5.6 GHz
Intel® Turbo Boost Technology: 2.0
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0: Yes
Intel® Adaptive Boost Technology: Yes
Intel® Thermal Velocity Boost Frequency: 5.8 GHz
Intel® Boot Guard: Yes

Other features
Maximum internal memory: 192 GB
L2 cache: 32768 KB

Logistics data
Harmonized System (HS) code: 8542310001

Safety warning
Warnings: Protect against overheating., Avoid contact with liquid., Do not install on a switched-on device.
