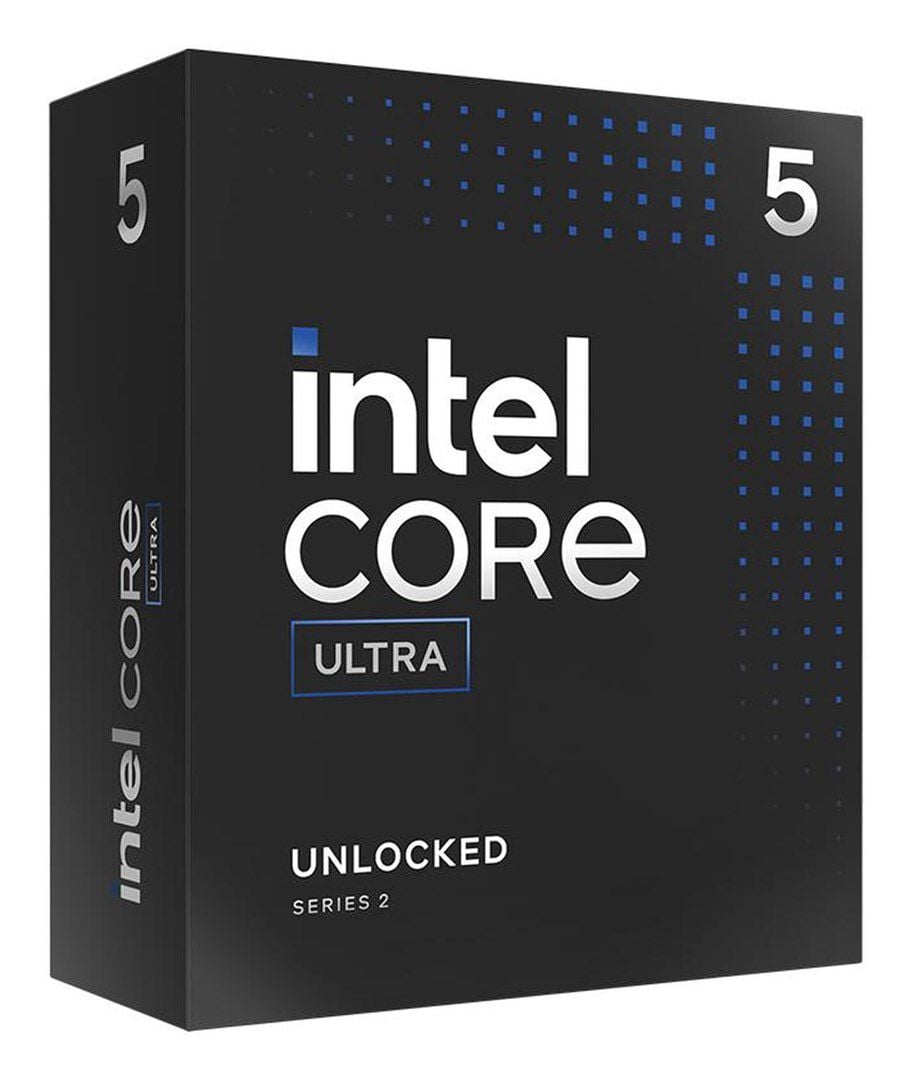

Intel Core Ultra 5 225 processor 20 MB Smart Cache Box

Technical details
OpenCL version: 3.0
Launch date: Q1'25
Status: Launched

Processor
Processor threads: 10
Performance cores: 6
Processor manufacturer: Intel
Performance-core base frequency: 3.3 GHz
Processor family: Intel Core Ultra 5
Efficient cores: 4
Processor socket: FCLGA1851
Processor ARK ID: 241070
Processor codename: Arrow Lake
Processor cache: 20 MB
Maximum number of DMI lanes: 8
Processor cache type: Smart Cache
Processor operating modes: 64-bit
Processor cores: 10
Processor base power: 65 W
Maximum turbo power: 121 W
Performance-core boost frequency: 4.9 GHz
Box: Yes
AI software frameworks supported by CPU: OpenVINO, Windows ML, DirectML, ONNX RT, WebNN
Processor model: 225
Processor generation: Intel Core Ultra (Series 2)

Graphics
Number of displays supported (on-board graphics): 4
On-board graphics card outputs supported: DisplayPort 2.1, HDMI 2.1, Embedded DisplayPort (eDP) 1.4b
Discrete graphics card: No
On-board graphics card ID: 0x7D67
On-board graphics card base frequency: 300 MHz
On-board graphics card OpenGL version: 4.5
On-board graphics card dynamic frequency (max): 1800 MHz
On-board graphics card refresh rate at maximum resolution (HDMI): 60 Hz
On-board graphics card refresh rate at maximum resolution (DisplayPort): 60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel): 60 Hz
On-board graphics card DirectX version: 12.0
On-board graphics card: Yes
Discrete graphics card model: Not available
Xe-cores: 2
On-board graphics card model: Intel Graphics

Features
Scalability: 1S
Embedded options available: Yes
Supported instruction sets: AVX 2.0, SSE4.1, SSE4.2
Idle States: Yes
Direct Media Interface (DMI) Revision: 4.0
Maximum number of PCI Express lanes: 24
Market segment: Desktop
Use conditions: PC/Client/Tablet
Execute Disable Bit: Yes
PCI Express slots version: 4.0, 5.0
Thermal Monitoring Technologies: Yes

Memory
Maximum internal memory supported by processor: 192 GB
Memory channels: Dual-channel
Memory types supported by processor: DDR5-SDRAM
Memory clock speeds supported by processor: 6400 MHz

Processor special features
Intel® Thread Director: Yes
Intel® Turbo Boost Technology: 2.0
Intel 64: Yes
Enhanced Intel SpeedStep Technology: Yes
Intel® Secure Key: Yes
Intel VT-x with Extended Page Tables (EPT): Yes
Intel® Thunderbolt 4: Yes
Intel® Volume Management Device (VMD): Yes
Intel® AES New Instructions (Intel® AES-NI): Yes
Intel® OS Guard: Yes
Intel® Speed Shift Technology: Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
Intel® Standard Manageability (ISM): Yes
Intel Trusted Execution Technology: Yes
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel Virtualization Technology (VT-x): Yes
Mode-based Execute Control (MBE): Yes
Intel® Quick Sync Video Technology: Yes
Intel® Deep Learning Boost (Intel® DL Boost) on GPU: Yes
Intel® Control-flow Enforcement Technology (CET): Yes
Intel® Boot Guard: Yes

Other features
Graphics output: DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
L2 cache: 22528 KB
Maximum internal memory: 192 GB

Safety warning
Warnings: Ensure that the CPU is properly mounted in the CPU socket to avoid damage., Do not dispose of the processors in the normal rubbish bin - they require special disposal due to their potential environmental impact.

Neural processor unit (NPU)
Neural processor unit (NPU): Intel AI Boost
AI software frameworks supported by NPU: WebNN, ONNX RT, OpenVINO, Windows ML, DirectML
GPU performance up to: 4 TOPs
Windows Studio effects support: Yes
Sparsity support: Yes
Total processor performance up to: 23 TOPs
NPU performance up to: 13 TOPs
