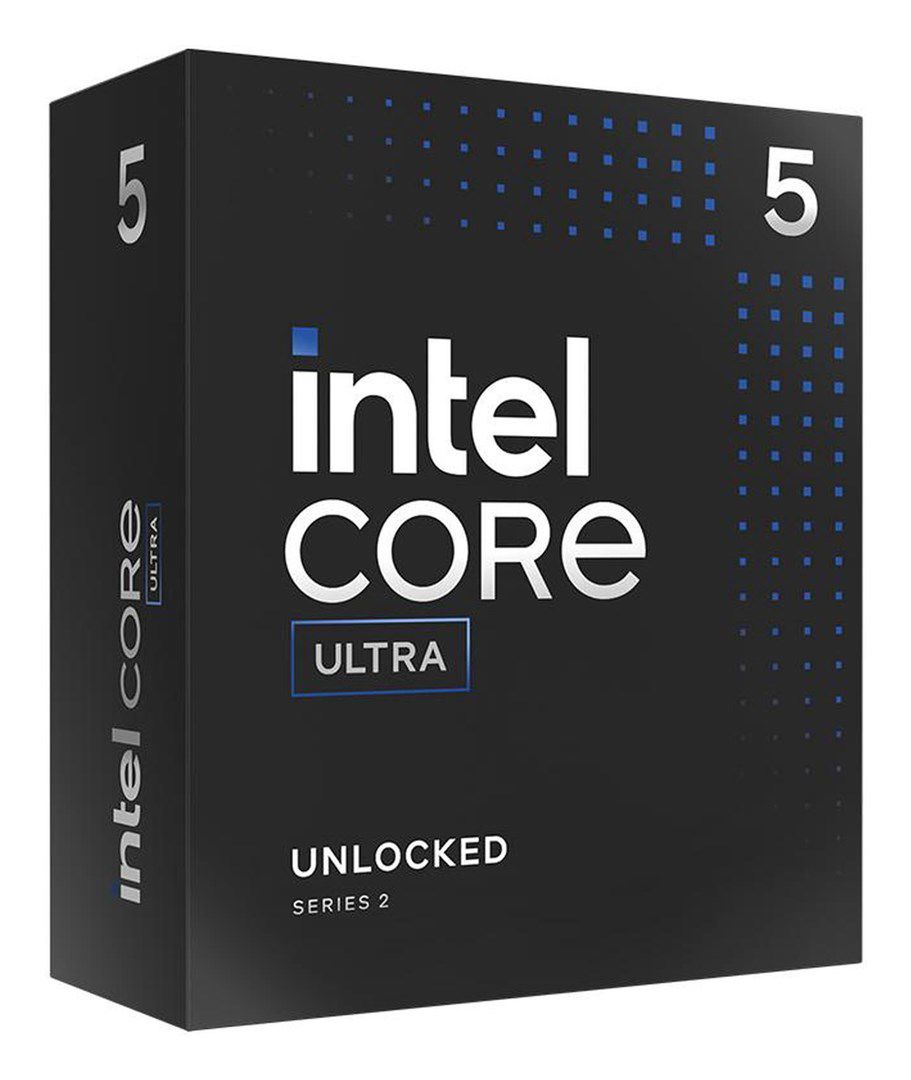

Intel Core Ultra 5 225F processor 20 MB Smart Cache Box

Technical details
Status: Launched
Launch date: Q1'25

Processor
Processor codename: Arrow Lake
Processor model: 225F
Processor generation: Intel Core Ultra (Series 2)
Processor ARK ID: 241069
Processor base power: 65 W
Processor operating modes: 64-bit
Processor threads: 10
Performance-core base frequency: 3.3 GHz
Processor family: Intel Core Ultra 5
Maximum number of DMI lanes: 8
Processor manufacturer: Intel
Performance cores: 6
Processor socket: FCLGA1851
Maximum turbo power: 121 W
Performance-core boost frequency: 4.9 GHz
Processor cores: 10
Processor cache type: Smart Cache
Efficient cores: 4
AI software frameworks supported by CPU: OpenVINO, Windows ML, DirectML, ONNX RT, WebNN
Processor cache: 20 MB
Box: Yes

Graphics
On-board graphics card: No
Discrete graphics card: No
Discrete graphics card model: Not available
On-board graphics card model: Not available

Features
Market segment: Desktop
Embedded options available: No
Supported instruction sets: AVX 2.0, SSE4.1, SSE4.2
Use conditions: PC/Client/Tablet
Execute Disable Bit: Yes
Direct Media Interface (DMI) Revision: 4.0
Thermal Monitoring Technologies: Yes
Scalability: 1S
PCI Express slots version: 4.0, 5.0
Idle States: Yes
Maximum number of PCI Express lanes: 24

Memory
Memory types supported by processor: DDR5-SDRAM
Maximum internal memory supported by processor: 192 GB
Memory clock speeds supported by processor: 6400 MHz
Memory channels: Dual-channel

Processor special features
Intel® Standard Manageability (ISM): Yes
Intel Trusted Execution Technology: Yes
Intel® Thread Director: Yes
Intel® Volume Management Device (VMD): Yes
Intel 64: Yes
Intel® Boot Guard: Yes
Intel® Secure Key: Yes
Intel® Turbo Boost Technology: 2.0
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel Virtualization Technology (VT-x): Yes
Mode-based Execute Control (MBE): Yes
Intel® Control-flow Enforcement Technology (CET): Yes
Intel® AES New Instructions (Intel® AES-NI): Yes
Intel® OS Guard: Yes
Enhanced Intel SpeedStep Technology: Yes
Intel® Speed Shift Technology: Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
Intel® Thunderbolt 4: Yes
Intel VT-x with Extended Page Tables (EPT): Yes

Other features
Maximum internal memory: 192 GB
L2 cache: 22528 KB

Safety warning
Warnings: Ensure that the CPU is properly mounted in the CPU socket to avoid damage., Do not dispose of the processors in the normal rubbish bin - they require special disposal due to their potential environmental impact.

Neural processor unit (NPU)
Windows Studio effects support: Yes
AI software frameworks supported by NPU: WebNN, OpenVINO, DirectML, ONNX RT, Windows ML
Sparsity support: Yes
Total processor performance up to: 19 TOPs
NPU performance up to: 13 TOPs
Neural processor unit (NPU): Intel AI Boost
