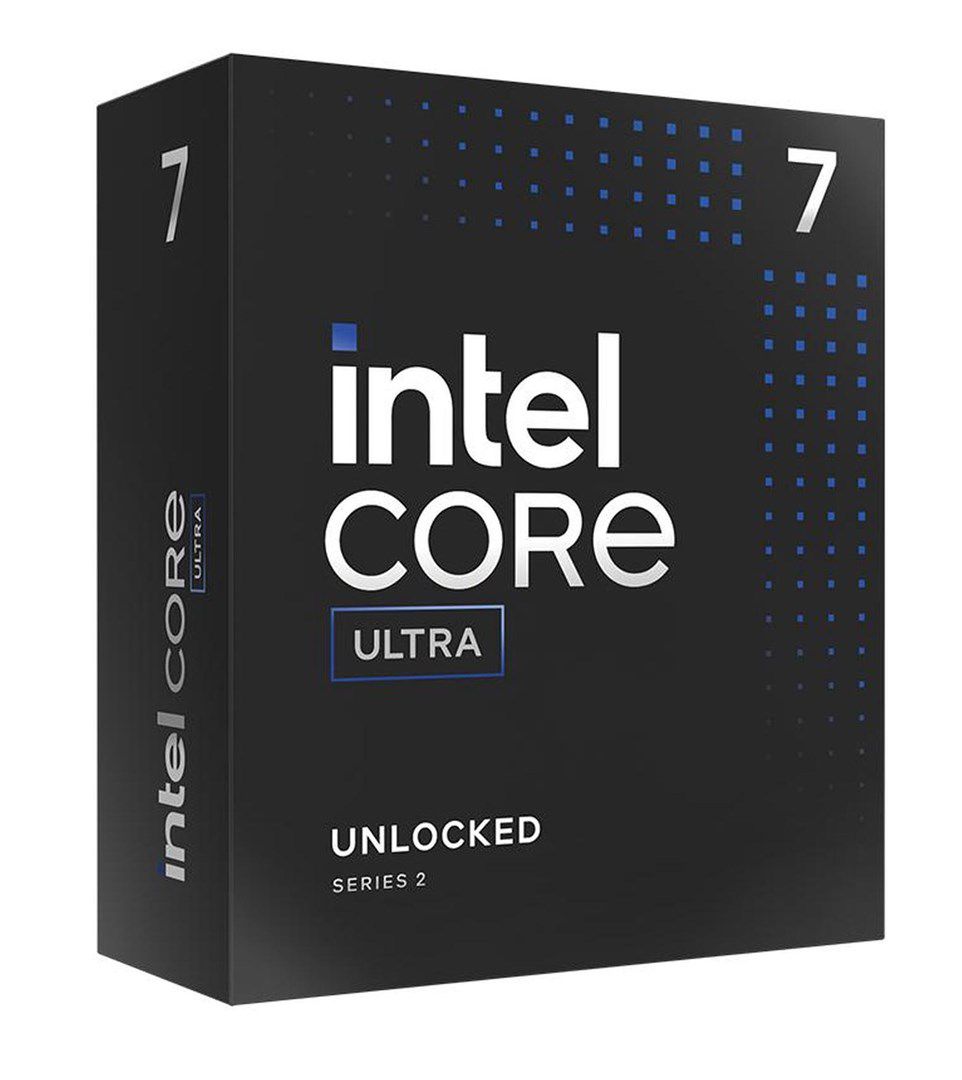

Intel Core Ultra 7 265F processor 30 MB Smart Cache Box

Technical details
Launch date: Q1'25
Status: Launched

Processor
Maximum number of DMI lanes: 8
Maximum turbo power: 182 W
Performance cores: 8
Processor generation: Intel Core Ultra (Series 2)
Processor base power: 65 W
Efficient cores: 12
Performance-core boost frequency: 5.2 GHz
Performance-core base frequency: 2.4 GHz
Processor cache type: Smart Cache
AI software frameworks supported by CPU: DirectML, ONNX RT, Windows ML, WebNN, OpenVINO
Processor cores: 20
Processor model: 265F
Processor family: Intel Core Ultra 7
Processor cache: 30 MB
Processor socket: FCLGA1851
Processor threads: 20
Processor operating modes: 64-bit
Processor manufacturer: Intel
Box: Yes
Processor codename: Arrow Lake
Processor ARK ID: 241064

Graphics
Discrete graphics card: No
Discrete graphics card model: Not available
On-board graphics card model: Not available
On-board graphics card: No

Features
Use conditions: PC/Client/Tablet
Direct Media Interface (DMI) Revision: 4.0
Maximum number of PCI Express lanes: 24
PCI Express slots version: 5.0, 4.0
Supported instruction sets: SSE4.2, SSE4.1, AVX 2.0
Thermal Monitoring Technologies: Yes
Idle States: Yes
Market segment: Desktop
Embedded options available: No
Scalability: 1S
Execute Disable Bit: Yes

Memory
Memory types supported by processor: DDR5-SDRAM
Memory clock speeds supported by processor: 6400 MHz
Maximum internal memory supported by processor: 192 GB
Memory channels: Dual-channel

Processor special features
Intel® Control-flow Enforcement Technology (CET): Yes
Intel® Standard Manageability (ISM): Yes
Intel® Thread Director: Yes
Intel® Thunderbolt 4: Yes
Intel® Turbo Boost Max Technology 3.0 frequency: 5.3 GHz
Intel VT-x with Extended Page Tables (EPT): Yes
Mode-based Execute Control (MBE): Yes
Intel® Boot Guard: Yes
Intel Trusted Execution Technology: Yes
Intel Turbo Boost Max Technology 3.0: Yes
Intel® Volume Management Device (VMD): Yes
Intel® Speed Shift Technology: Yes
Intel® OS Guard: Yes
Intel® AES New Instructions (Intel® AES-NI): Yes
Intel® Secure Key: Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
Intel 64: Yes
Intel® Turbo Boost Technology: 2.0
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel Virtualization Technology (VT-x): Yes
Enhanced Intel SpeedStep Technology: Yes

Other features
L2 cache: 36864 KB
Maximum internal memory: 192 GB

Safety warning
Warnings: Do not touch the processor pins to avoid electrostatic damage., Avoid shocks and drops so as not to damage delicate components., Ensure that the processor is adequately cooled to prevent overheating.

Neural processor unit (NPU)
Neural processor unit (NPU): Intel AI Boost
AI software frameworks supported by NPU: ONNX RT, WebNN, DirectML, Windows ML, OpenVINO
NPU performance up to: 13 TOPs
Windows Studio effects support: Yes
Sparsity support: Yes
Total processor performance up to: 25 TOPs
