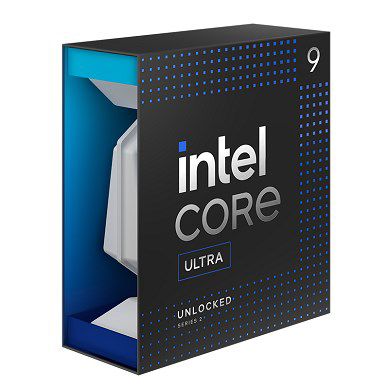

Intel Core Ultra 9 285 processor 36 MB Smart Cache Box

Technical details
OpenCL version: 3.0
Launch date: Q1'25
Status: Launched

Processor
Processor cores: 24
Box: Yes
AI software frameworks supported by CPU: DirectML, ONNX RT, Windows ML, WebNN, OpenVINO
Processor model: 285
Processor family: Intel Core Ultra 9
Maximum number of DMI lanes: 8
Performance cores: 8
Performance-core base frequency: 2.5 GHz
Processor generation: Intel Core Ultra (Series 2)
Performance-core boost frequency: 5.4 GHz
Efficient cores: 16
Processor cache type: Smart Cache
Processor operating modes: 64-bit
Maximum turbo power: 182 W
Processor ARK ID: 241061
Processor socket: FCLGA1851
Processor manufacturer: Intel
Processor threads: 24
Processor codename: Arrow Lake
Processor cache: 36 MB
Processor base power: 65 W

Graphics
Discrete graphics card: No
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel): 60 Hz
On-board graphics card DirectX version: 12.0
On-board graphics card: Yes
Number of displays supported (on-board graphics): 4
On-board graphics card dynamic frequency (max): 2000 MHz
On-board graphics card outputs supported: HDMI 2.1, Embedded DisplayPort (eDP) 1.4b, DisplayPort 2.1
Discrete graphics card model: Not available
On-board graphics card model: Intel Graphics
On-board graphics card refresh rate at maximum resolution (DisplayPort): 60 Hz
On-board graphics card refresh rate at maximum resolution (HDMI): 60 Hz
On-board graphics card OpenGL version: 4.5
Xe-cores: 4
On-board graphics card ID: 0x7D67
On-board graphics card base frequency: 300 MHz

Features
Supported instruction sets: SSE4.2, SSE4.1, AVX 2.0
PCI Express slots version: 4.0, 5.0
Embedded options available: Yes
Direct Media Interface (DMI) Revision: 4.0
Execute Disable Bit: Yes
Market segment: Desktop
Thermal Monitoring Technologies: Yes
Idle States: Yes
Maximum number of PCI Express lanes: 24
Scalability: 1S
Use conditions: PC/Client/Tablet, Workstation

Memory
Maximum internal memory supported by processor: 192 GB
Memory channels: Dual-channel
Memory types supported by processor: DDR5-SDRAM
Memory clock speeds supported by processor: 6400 MHz
ECC: Yes

Processor special features
Intel® Secure Key: Yes
Intel® Boot Guard: Yes
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel Virtualization Technology (VT-x): Yes
Intel Trusted Execution Technology: Yes
Intel vPro® Enterprise Platform Eligibility: Yes
Intel® Deep Learning Boost (Intel® DL Boost) on GPU: Yes
Intel 64: Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
Intel® Threat Detection Technology (TDT): Yes
Intel® Standard Manageability (ISM): Yes
Intel® Remote Platform Erase (RPE): Yes
Intel® Speed Shift Technology: Yes
Intel® Thermal Velocity Boost: Yes
Mode-based Execute Control (MBE): Yes
Intel® Active Management Technology (Intel® AMT): Yes
Intel® Virtualization Technology with Redirect Protection (VT-rp): Yes
Intel® Thermal Velocity Boost Frequency: 5.6 GHz
Intel® Turbo Boost Max Technology 3.0 frequency: 5.5 GHz
Intel® Quick Sync Video Technology: Yes
Intel® Volume Management Device (VMD): Yes
Intel® Total Memory Encryption - Multi Key: Yes
Intel® Thunderbolt 4: Yes
Intel® Stable IT Platform Program (SIPP): Yes
Enhanced Intel SpeedStep Technology: Yes
Intel® One-Click Recovery: Yes
Intel Turbo Boost Max Technology 3.0: Yes
Intel® Thread Director: Yes
Intel® AES New Instructions (Intel® AES-NI): Yes
Intel VT-x with Extended Page Tables (EPT): Yes
Intel® Control-flow Enforcement Technology (CET): Yes
Intel® Hardware Shield Eligibility: Yes
Intel® Turbo Boost Technology: 2.0
Intel® OS Guard: Yes

Other features
L2 cache: 40960 KB
Graphics output: DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
Maximum internal memory: 192 GB

Safety warning
Warnings: Avoid contact with liquid., Do not install on a switched-on device., Protect against overheating.

Neural processor unit (NPU)
NPU performance up to: 13 TOPs
AI software frameworks supported by NPU: WebNN, Windows ML, OpenVINO, DirectML, ONNX RT
Windows Studio effects support: Yes
GPU performance up to: 8 TOPs
Neural processor unit (NPU): Intel AI Boost
Sparsity support: Yes
Total processor performance up to: 36 TOPs
