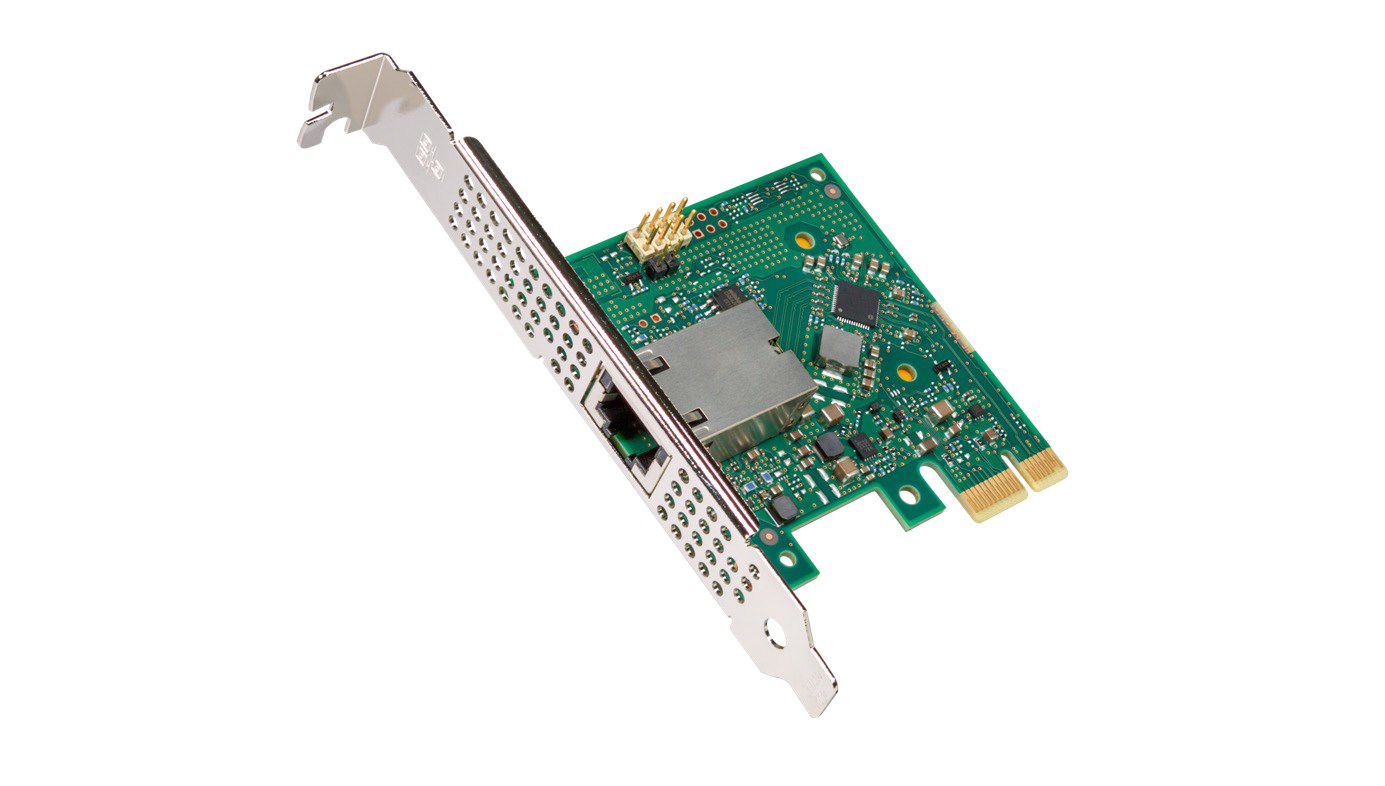

Intel I226-T1 Internal Ethernet 2500 Mbit /s

Technical details
Compliance certificates: Federal Communications Commission (FCC), RoHS, CE, BSMI, KCC, VCCI

Design
Product colour: Silver, Green
Internal: Yes
Component for: PC/Server
LED indicators: Link, Activity

Power
Power consumption (typical): 1.4 W

Operational conditions
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 0 - 55 °C

Weight & dimensions
Width: 68.7 mm
Depth: 65.3 mm

Network
Jumbo frames support: Yes
Ethernet LAN data rates: 100 Mbit/s, 2500 Mbit/s, 10, 1000
Maximum data transfer rate: 2500 Mbit/s
Ethernet LAN: Yes
Maximum operating distance: 100 m
Networking standards: IEEE 802.3z, IEEE 802.3x, IEEE 802.3
Wi-Fi: No
Ethernet interface type: 2.5 Gigabit Ethernet

Ports & interfaces
PCI Card form factor: Full-height (low-profile)
PCI version: 3.1
Interface: Ethernet
Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Host interface: PCI Express

Other features
Launch date: Q3'23
Cabling type: CAT5e, CAT6, CAT6A
Network interface card cable medium: Copper
Export Control Classification Number (ECCN): 5A991.B.4.A
Ethernet adapter ARK ID: 225771
Market segment: Desktop

Logistics data
Harmonized System (HS) code: 8517620090

Sustainability
Sustainability compliance: Yes
