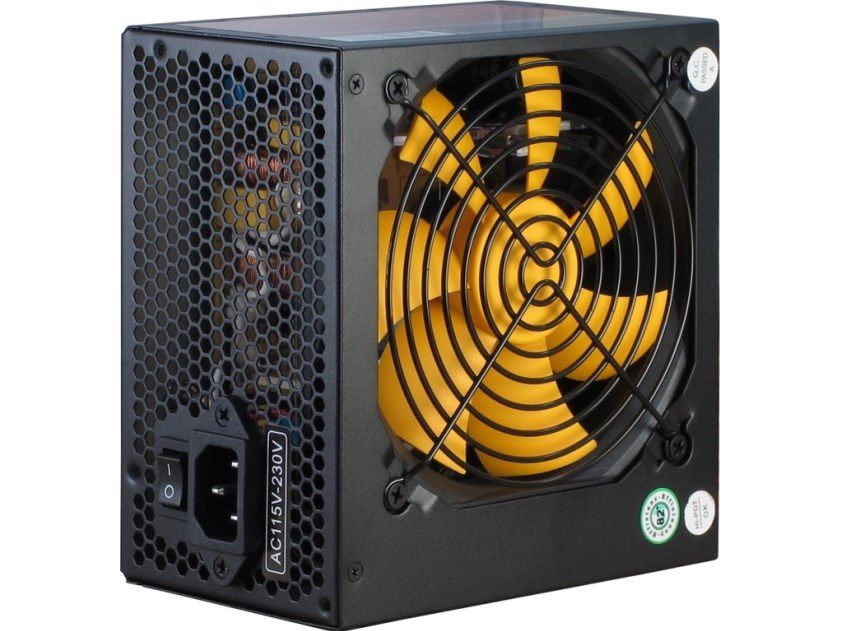

Design Product colour: Black Number of fans: 1 fan(s) On/off switch: Yes Cooling type: Active Fan location: Top Fan diameter: 12 cm
Power AC input frequency: 47 - 63 Hz Combined power (-12V): 3.6 W Power Factor Correction (PFC) type: Active Max output current (+12V1): 17 A Max output current (+12V2): 18 A Combined power (+3.3V): 103 W AC input voltage: 115 - 230 V Combined power (+5V): 103 W Maximum input current (@110V): +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V Max output current (+5Vsb): 3 A Max output current (+5V): 15 A Max output current (-12V): 0.3 A Combined power (+5Vsb): 15 W Max output current (+3.3V): 15 A Total power: 420 W
Weight & dimensions Weight: 1.1 kg Width: 150 mm Depth: 140 mm Height: 86 mm
Performance ATX version: 2.31 Purpose: PC Noise level: 21 dB Power supply unit (PSU) form factor: ATX
Packaging data Manual: Yes Package height: 170 mm Package weight: 1.42 kg Package width: 240 mm Package depth: 95 mm Package type: Box
Ports & interfaces Floppy drive power connector: 1 Peripheral (Molex) power connectors (4-pin): 2 ATX power connector (20+4 pin): Yes Cabling type: Non-Modular CPU power connector (4+4 pin): Yes Motherboard power connector: 20+4 pin ATX Floppy disk drive connector: Yes Number of SATA power connectors: 3
Logistics data Harmonized System (HS) code: 84733020
