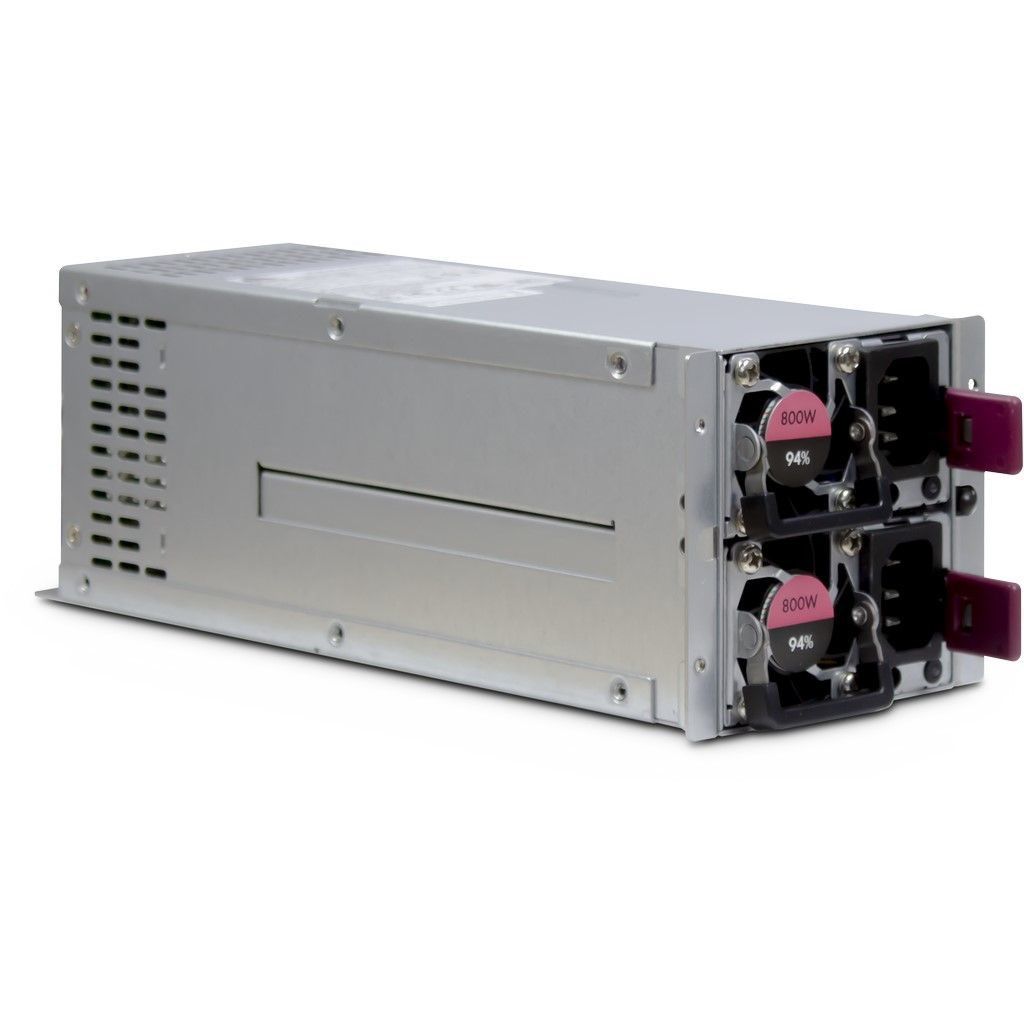

Design LED indicators: Status Product colour: Silver Fan diameter: 4 cm Number of fans: 2 fan(s) Cooling type: Active
Power AC input voltage: 100 - 240 V AC input frequency: 50 - 60 Hz Input current: 15 A Max output current (+3.3V): 30 A Total power: 800 W Power protection features: Over power, Over current, Short circuit, Over voltage, Overheating Max output current (+5Vsb): 4 A Max output current (+5V): 25 A Combined power (+3.3V): 150 W Efficiency: 87% Max output current (-12V): 1 A Max output current (+12V): 66.5 A
Weight & dimensions Weight: 3.1 kg Width: 100 mm Depth: 270 mm Height: 84 mm
Performance Power supply unit (PSU) form factor: 2U Mean time between failures (MTBF): 100000 h 80 PLUS certification: 80 PLUS Platinum Purpose: Server
Packaging data Package weight: 3.42 kg
Ports & interfaces Floppy disk drive connector: Yes Number of SATA power connectors: 2 Peripheral (Molex) power cable length: 550 mm, 400 Peripheral (Molex) power connectors (4-pin): 6 Motherboard power connector: 20+4 pin ATX Motherboard power cable length: 40 cm SATA power cable length: 400, 550 CPU power connector (4+4 pin): Yes ATX power connector (20+4 pin): Yes CPU power cable length: 40 cm Floppy drive power connector: 1
Logistics data Harmonized System (HS) code: 84733020
