Design
Product colour: Black
Form factor: Tube/dome
Mounting type: Wall/ceiling
Housing material: Metal, Plastic
International Protection (IP) code: IP67
Power
Power consumption (Power over Ethernet (PoE)): 4.5 W
Power consumption (typical): 3.7 W
Power source type: DC, PoE
DC output voltage: 12
Operational conditions
Storage temperature (T-T): -40 - 60 °C
Operating temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Management features
Web-based management: Yes
Web browser: Yes
Weight & dimensions
Height: 85.6 mm
Width: 94 mm
Depth: 94 mm
Weight: 320 g
Network
Wi-Fi: No
Networking standards: IEEE 802.3af
Bluetooth: No
Ethernet interface type: 10 Megabit Ethernet, 100 Megabit Ethernet
4G LTE: No
System requirements
Mobile operating systems supported: Android, iOS
Performance
Wide Dynamic Range (WDR): DWDR
Signal-to-Noise Ratio (SNR): 56 dB
Connectivity technology: Wired

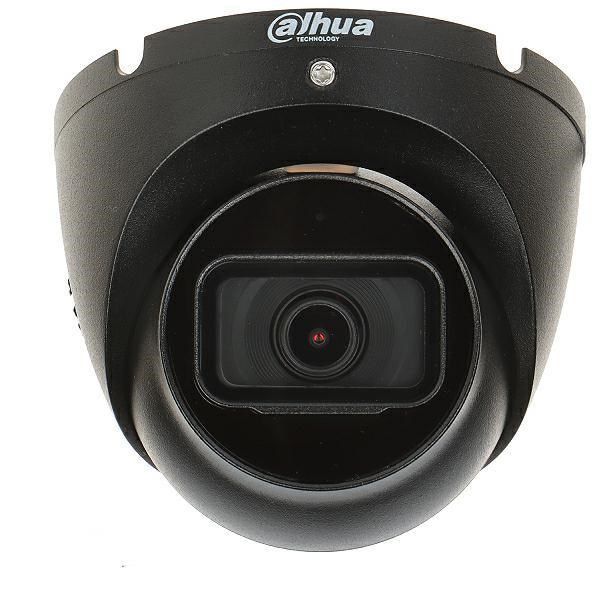

Type: IP security camera
Placement supported: Outdoor
Packaging content
Number of cameras: 1
Audio
Two-way talk: N
Built-in loudspeaker: No
Audio codecs: G.711a, G.711Mu, G726
Built-in microphone: Yes
Storage
RAM capacity: 128 MB
ROM capacity: 16 MB
Camera
Lens viewing angle, horizontal: 106°
Adjustment shutter speed: Auto/Manual
Horizontal rotation angle: 0 - 360°
Viewing angle, diagonal: 125°
Vertical rotation angle: 0 - 78°
People detection : Yes
Minimum illumination: 0.03 lx
Lens viewing angle, vertical: 56°
Motion detection : Yes
Camera shutter speed: 1/3 - 1/100000 s
Image sensor
Progressive scan: Yes
Sensor type: CMOS
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Number of sensors: 1
Video
Maximum resolution: 2880 x 1620 pixels
Total megapixels: 5 MP
Video streaming: Yes
Video compression formats: H.265+, H.264+, H.264, M-JPEG, H.265
Frame rate: 20 fps
Night vision
Number of illumination LEDs: 1
Night vision distance: 30 m
LED type: IR
Night vision: Yes
Lens system
Focal length range: 2.8 mm
Lens type: Fixed focal length lens
Maximum aperture number: 2
Closest focusing distance: 0.8 m
Number of lenses: 1
