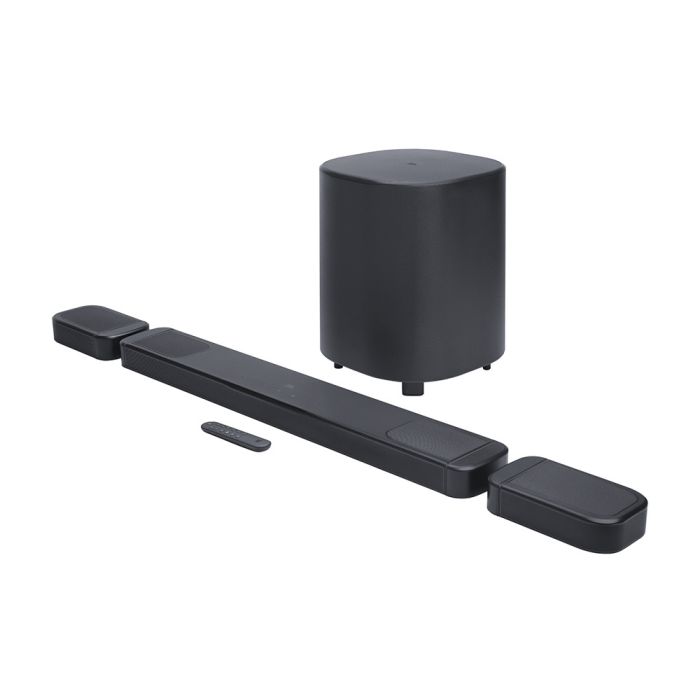

JBL BAR 1000 MK2

TRUE PANORAMIC SPATIAL SOUND WITH REMOVABLE WIRELESS SPEAKERS

Elevate your 3D spatial sound experience with dynamic and immersive sound height.

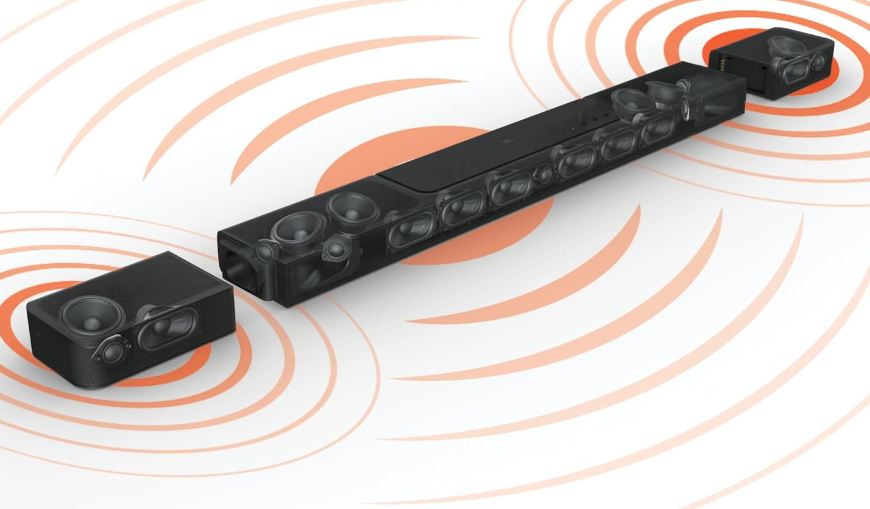

Four upward-facing speakers in the soundbar and wireless rear speakers create true Dolby Atmos® sound.
No cables. No power plugs.
Simply lift the removable surround speakers from the soundbar—you can do it with one hand—
and place them behind you where you want to sit to create a true surround sound setup. It's that simple.

Whether you're watching your favorite series or hosting a movie night, the long battery life of the speakers will ensure
immersive, cinematic surround sound for hours.
When you're done, simply place them back on the soundbar to charge overnight.

960 W MAXIMUM OUTPUT POWER AND 10" WIRELESS SUBWOOFER

Change the way you watch, listen, and play games.
Experience a new level of cinematic sound—480 watts of maximum output power further enhances your surround sound experience.
Action movies become even more exciting with the powerful, deep bass from the 10-inch wireless subwoofer.

TRUE DOLBY ATMOS® AND DTS:X

Immerse yourself in cinema-quality 3D surround sound with Dolby Atmos® and DTS:X.
Feel spaceships flying overhead.
Experience explosions that reverberate through your body.
Enjoy music as if you were in the middle of a recording studio.

Technical details:

• Sound system: 7.1.4-channel
• Power supply: 100–240 V AC~, 50/60 Hz
• Total output power (max. @THD 1%): 880 W RMS
• Soundbar output power (max. @THD 1%): 250 W RMS
• Rear surround speaker output power (max. @THD 1%): 2 × 40 W RMS
• Subwoofer output power (max. @THD 1%): 150 W RMS
• RMS @THD 10%: 390 W RMS
• Soundbar drivers: 6 × (44×80 mm) oval drivers, 2 × (25 mm) tweeters, 2 × (75 mm) upward-facing drivers
• Rear speaker drivers: 2 × (44×90 mm) oval drivers, 2 × (75 mm) drivers, upward-facing
• Woofer: 10" (260 mm)
• Power consumption in standby mode: < 2.0 W
• Operating temperature: 0 °C – 45 °C
• Built-in battery: 3.635 V / 6,600 mAh
• Battery life of rear speakers: up to 10 hours (depending on content type and volume)

Audio specifications

• Frequency range: 33 Hz – 20 kHz (–6 dB)
• Audio inputs: Optical, Bluetooth, USB
  (USB playback is available on the US version; on other versions, USB is for service use only.)

Dimensions

• Soundbar dimensions (W × H × D): 1203 × 52 × 128 mm
• Speaker dimensions (W × H × D): 854 × 52 × 128 mm
• Dimensions of removable surround speakers (each) (W × H × D): 189 × 52 × 128 mm
• Subwoofer dimensions (W × H × D): 325 × 420 × 325 mm
• Soundbar weight: 5.6 kg
• Weight of removable surround speaker (each): 0.9 kg
• Weight of subwoofer: 9.1 kg
• Package dimensions (W × H × D): 980 × 398 × 495 mm
• Gross weight: 22.6 kg (EMEA/UK/AU/NZ), 19.8 kg (other markets)

Connection and control specifications

• USB connector: Type A
• USB power supply: 5 V DC, 0.5 A
• Supported formats: MP3
• MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
• MP3 sample rate: 16–48 kHz
• MP3 bit rate: 80–320 kbps
• Bluetooth version: 5.3
• Bluetooth profile: A2DP v1.3, AVRCP v1.5
• Bluetooth transmitter frequency range: 2400 MHz – 2483.5 MHz
• Bluetooth transmitter power: < 15 dBm (EIRP)
• Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax (2.4 GHz / 5 GHz)
• 2.4 GHz Wi-Fi transmitter frequency range: 2412 – 2472 MHz (2.4 GHz ISM band, US 11 channels, Europe and other markets 13 channels)
• 2.4 GHz Wi-Fi transmitter power: < 20 dBm (EIRP)
• 5 GHz Wi-Fi transmitter frequency range: 5 .15 – 5.35 GHz, 5.470 – 5.725 GHz, 5.725 – 5.825 GHz
• 5 GHz Wi-Fi transmitter power:5.15–5.35 GHz < 23 dBm, 5.25–5.35 GHz & 5.470–5.725 GHz < 20 dBm, 5.725–5.825 GHz < 14 dBm (EIRP)
• Soundbar and subwoofer connection: Frequency range: 2406 – 2478 MHz, Transmitter power: < 10 dBm (EIRP)
• Connection to rear surround speakers: Frequency range: 2406 – 2478 MHz
  Transmitter power: < 10 dBm (EIRP)
  (The 5.6 – 5.64 GHz band will be disabled for shipments to Australia/New Zealand.)

Video specifications

• HDMI video inputs: 3
• HDMI video output (with enhanced audio return channel): 1
• Number of ARC/eARC channels: 1
• HDMI HDCP version: 2.3
• Supported HDR formats: HDR10+, Dolby Vision
