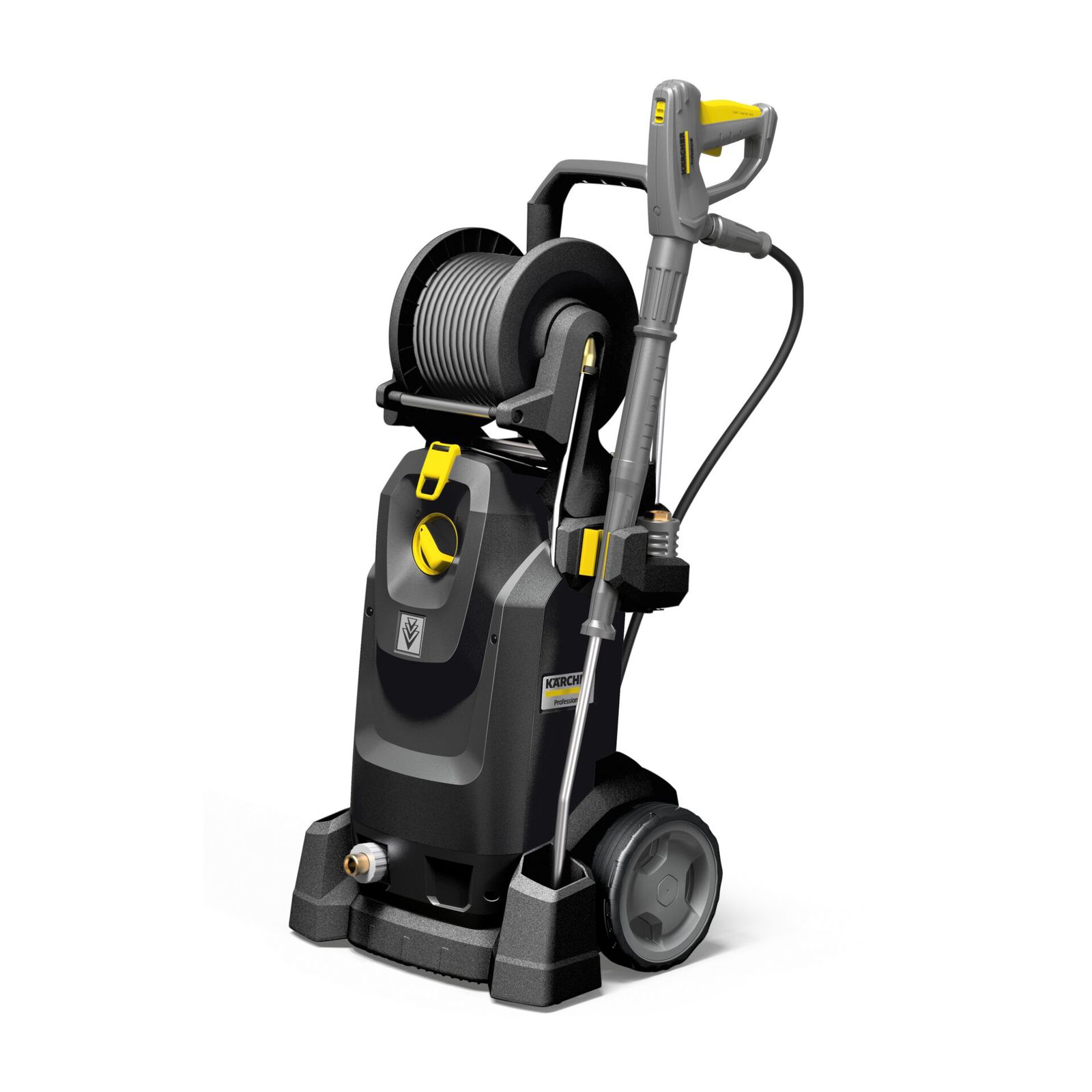

Kärcher HD 7 /16-4 MX Plus Anniversary Edition

Kärcher HD 7/16-4 MX Plus Anniversary Edition

The HD 7/16-4 MX Plus Anniversary Edition in black convinces with ideal performance data of 700 l/ h and 160 bar as well as a comfortable hose reel, which ensures maximum efficiency and ease of use.

High quality equipment
Automatic pressure relief to protect the components extends their service life.Powerful, 4-pole, slow running electric motor. High-quality brass cylinder head.

Flexible operation
Designed for standing and lying operation, maximum stability in lying operation as the wheels do not touch the ground.

High mobility
Push bar that can be retracted at the touch of a button increases the compactness of the device and reduces the space required. Integrated storage options reduce set-up times.

Features:

• Well thought-out accessory storage:
  • Holder for fixing the foam lance
  • EASY! Lock TR20 allows storage of the power nozzle or a surface cleaner directly on the device
  • Practical nozzle compartment to accommodate the rotor nozzle
• Exemplary service friendliness:
  • Easy access to the cylinder head via open bottom
  • Quick access to the electrical box by simply removing the hood
  • Large, easily accessible water fine filter to protect the pump from dirt particles in the water
• Energy and time saving solutions:
  • Fatigue-free EASY! Force high pressure gun
  • EASY! Lock quick-release fasteners: durable and robust, and 5 times faster than screwed
• Increased energy efficiency:
  • Newly developed 3-piston axial pump with significantly reduced flow and pressure losses
  • 20% increase in cleaning performance and energy efficiency
• Integrated hose reel:
  • Maximum comfort when handling the high-pressure hose
  • Enables short setup times due to fast winding and unwinding
  • Prevents tripping and thus increases operational safety
• Additional stand:
  • Increases the footprint of the device
  • Increases the tilt safety in standing operation
• Length HD hose: 15 m
• Type HD hose: Flex
• Specification HD hose: DN 6, 250 bar
• Integrated HD hose reel
• ANTI! Twist
• Pressure cut-off

Technical data:

• Current type: 3 / 400 / 50 Ph / V / Hz
• Flow rate: 350 - 700 l/h
• Inlet temperature: 60 °C
• Working pressure: 30 - 160 / 3 - 16 bar / MPa
• Max pressure: 240 / 24 bar / MPa
• Connected power: 4.2 kW
• Connection cable: 5 m
• Water intake: 3/4
• Weight (with accessories): 42.9 kg
• Dimensions (W x H): 400 x 455 x 966 mm
• Colour: black

Scope of delivery:

• Hand spray gun: EASY! Force
• Jet tube: 840 mm
• Power nozzle
• Dirty Cutter
• Servo Control
