Features
Processor model: MediaTek MT7621A
Internal memory type: DDR3
Built-in processor: Yes
Flash memory: 128 MB
Firmware upgradeable: Yes
Processor manufacturer: MediaTek
Internal memory: 128 MB
Cloudflare DNS: Yes
WireGuard: Yes
AdGuard ad blocker: Yes
Design

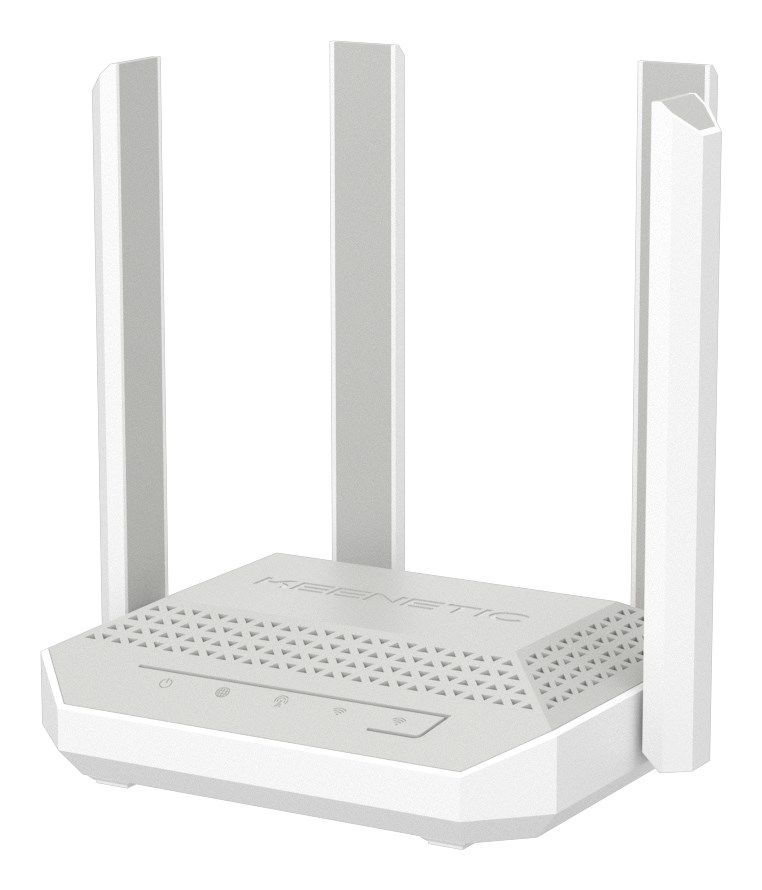

Product type: Tabletop router
Power
Power source type: AC
Output current: 1.5 A
AC input frequency: 50/60 Hz
Output voltage: 12 V
AC input voltage: 100 - 240 V
Security
System event log: Yes
Firewall security: SPI
Security algorithms: WPA2-Enterprise, WPA2-PSK, OWE, WPA3-PSK, WPA-PSK, WPA3-Enterprise, WEP
IGMP snooping: Yes
Network address translation (NAT): Yes
MAC address filtering: Yes
Schedule access: Yes
Firewall: Yes
Parental control: Yes
DoS attack prevention: Yes
Guest access: Yes
Operational conditions
Operating relative humidity (H-H): 20 - 95%
Operating temperature (T-T): 0 - 40 °C
Management features
Backup function: Yes
Wi-Fi Multimedia (WMM)/(WME): Yes
Web-based management: Yes
Bandwidth control: Yes
Intelligent Mesh technology: Yes
Traffic statistics: Yes
Web-based setup wizard: Yes
Captive portal: Yes
Cloud-managed: Yes
WPS push button: Yes
Direct or cloud access via KeenDNS: Yes
HTTPS security for access via KeenDNS: Yes
Command-line interface (CLI): Yes
Weight & dimensions
Depth: 118 mm
Height: 45 mm
Width: 160 mm
Weight: 370 g
VPN support: PPTP (client/server), L2TP over IPSec client/server, OpenVPN client/server, SSTP client/server, IPsec VPN (client/server)
Network
Ethernet LAN: Yes
Port forwarding: Yes
Ethernet LAN interface type: Gigabit Ethernet
Dynamic DNS (DDNS): Yes
Networking standards: IEEE 802.11a, IEEE 802.11r, IEEE 802.11v, IEEE 802.11ac, IEEE 802.11k, IEEE 802.1Q, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cabling technology: 10/100/1000Base-T(X)
Ethernet LAN data rates: 1000 Mbit/s, 100, 10
Number of guest networks (2.4 GHz): 7
WireGuard throughput: 180 Mbit/s
L2TP/PPTP data rate: 800 Mbit/s
Routing table: DHCP, Manual
Number of guest networks (5 GHz): 7
Ping check: Yes
PPPoE/PPTP/L2TP pass-through: Yes
IPoE/PPPoE data rate: 1800 Mbit/s
Internet connection backup: Yes
Policy-based routing: Yes
IntelliQoS: Yes
System requirements
Mobile operating systems supported: iOS, Android
Packaging content
Cables included: LAN (RJ-45)
Quick start guide: Yes
AC adapter included: Yes
Wireless LAN features
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max): 1200 Mbit/s
Wi-Fi standards: Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band): 300 Mbit/s
Protocols
Universal Plug and Play (UPnP): Yes
Supported network protocols: IPoE, PPPoE, PPTP, L2TP, 802.1x
DHCP client: Yes
DHCP server: Yes
IPv4 & IPv6 features: Dual stack IPv4/IPv6, IPv6 Telnet, IPv6 SSH
UDP-to-HTTP proxy: Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports: 4
Antenna
Antenna connector type: SMA
Antennas quantity: 4
Antenna design: External
WAN connection
Ethernet WAN: Yes
WAN connection type: RJ-45, WISP
SIM card slot: Yes
DSL WAN: No
3G/4G USB modem compatibility: No
Supported WAN type: Multi-WAN
Supported protocols: EoIP, IP-IP, GRE
Other features
Number of users: 199 user(s)
Mobile network
3G standards: HSDPA, HSPA+, HSUPA, WCDMA
Short Message Service (SMS): Yes
3G: Yes
4G standard: LTE-TDD & LTE-FDD
4G bands supported: 1500, 900, 1800, 2100, 800, 2600 MHz, 850, 2500, 700, 2300
4G data rate (max): 300 Mbit/s
Mobile network generation: 4G
3G bands supported: 2100 MHz, 850, 900
Modem chipset: ASR1828
SIM card type: NanoSIM
USSD request support: Yes
