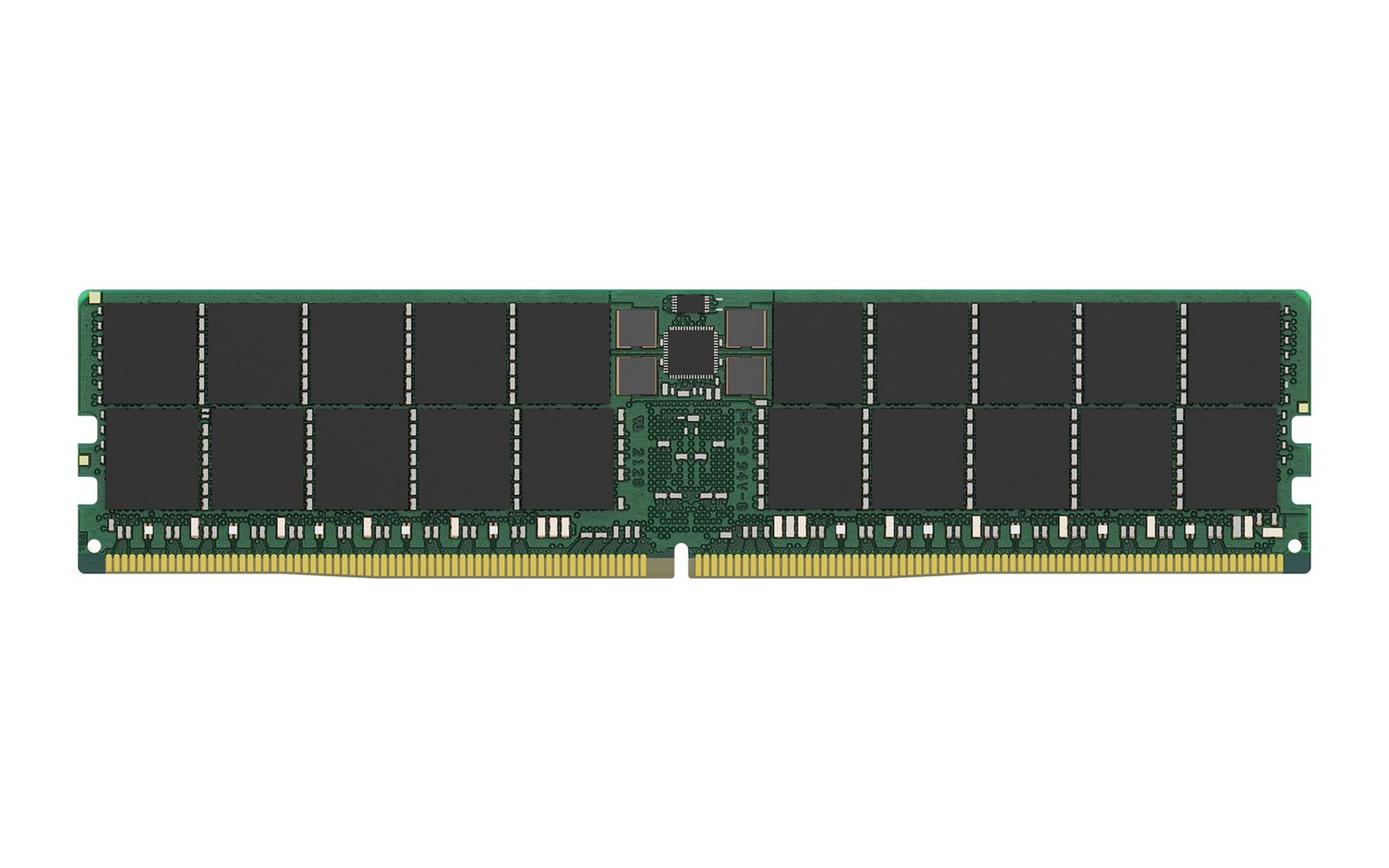

Kingston Technology 64GB, DDR5, 5600MT /s, ECC, Registered, DIMM, CL46, x80, 2RX4, 1.1V, 288-pin

Technical details
Compliance certificates: RoHS

Features
Row Precharge Time (TRP): 16
Internal memory type: DDR5
Lead plating: Gold
CAS latency: 46
Buffered memory type: Registered (buffered)
On-Die ECC: Yes
SPD profile: Yes
Memory data transfer rate: 5600 MT/s
Module configuration: 8192M x 80
Programming power voltage (VPP): 1.8 V
Row active time: 32 ns
Refresh row cycle time: 295 ns
JEDEC standard: Yes
Row cycle time: 48 ns
Memory layout (modules x size): 1 x 64 GB
Memory voltage: 1.1 V
Memory ranking: 2
ECC: Yes
Internal memory: 64 GB
Component for: PC/Server
Memory form factor: 288-pin DIMM
Cooling type: Heatsink

Operational conditions
Operating temperature (T-T): 0 - 95 °C
Storage temperature (T-T): -55 - 100 °C

Weight & dimensions
Height: 31.2 mm
Width: 133.3 mm

Sustainability
Doesn't contain: Halogen
Sustainability compliance: Yes
