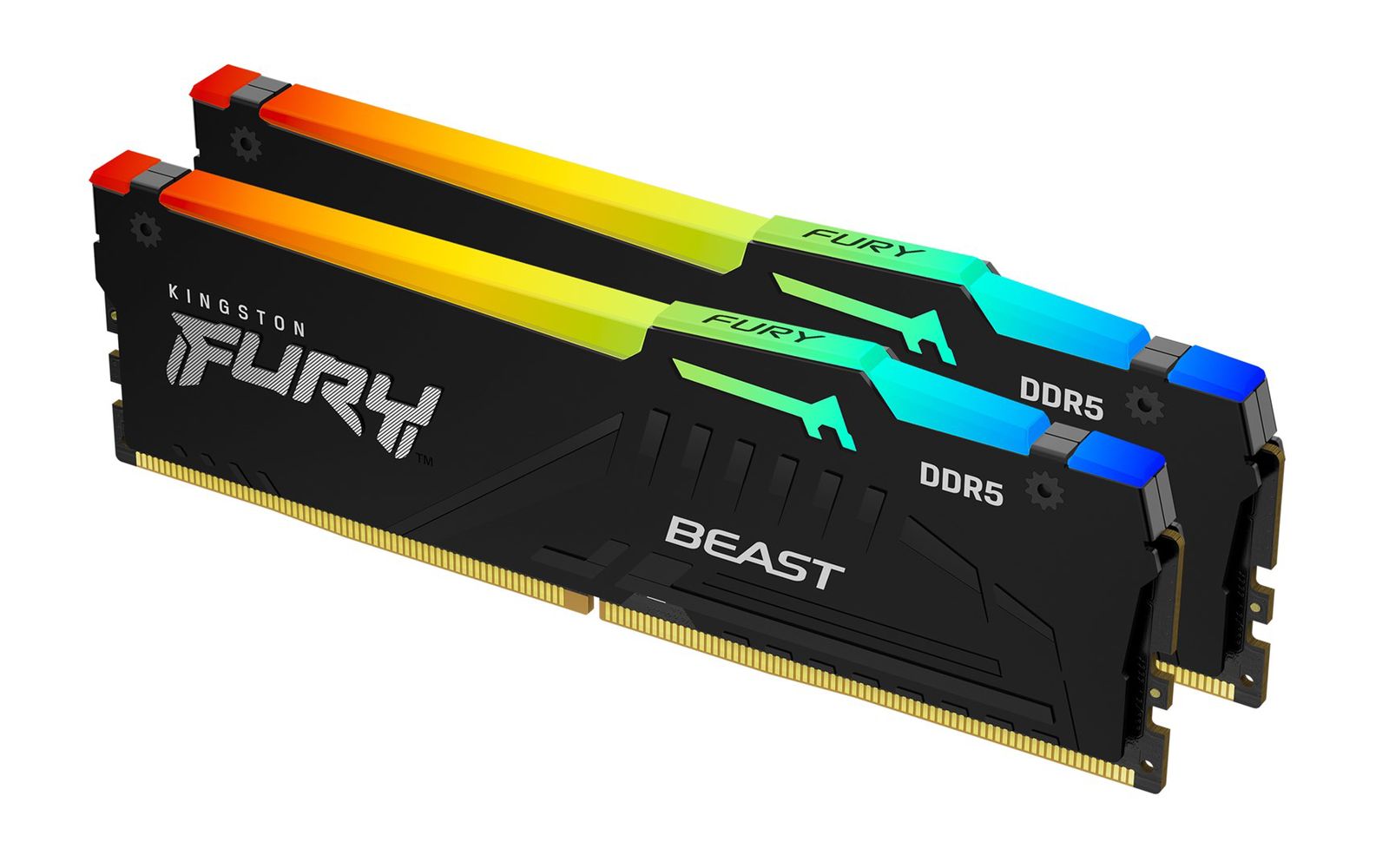

Features On-Die ECC: Yes AMD Extended Profiles for Overclocking (EXPO): Yes AMD Extended Profiles for Overclocking (EXPO) version: 1.0 Memory layout (modules x size): 2 x 16 GB Memory form factor: 288-pin DIMM Row cycle time: 48 ns Buffered memory type: Unregistered (unbuffered) SPD profile: Yes Internal memory: 32 GB Cooling type: Heatsink Backlight colour: Red/Green/Blue Memory data transfer rate: 5600 MT/s Internal memory type: DDR5 Programming power voltage (VPP): 1.8 V JEDEC standard: Yes Backlight: Yes Lead plating: Gold ECC: No CAS latency: 36 Module configuration: 2048M x 64 Refresh row cycle time: 295 ns Row active time: 32 ns Component for: PC Memory voltage: 1.25 V
Operational conditions Operating temperature (T-T): 0 - 85 °C Storage temperature (T-T): -55 - 100 °C
Weight & dimensions Depth: 133.3 mm Width: 7.11 mm Weight: 84.76 g Height: 42.2 mm
Packaging data Package weight: 133.11 g Package depth: 14 mm Package width: 121.9 mm Package height: 171.4 mm
Safety warning Warnings: Protect against moisture., Do not disassemble by yourself., Product may contain materials harmful to the environment, dispose of in accordance with local regulations.
