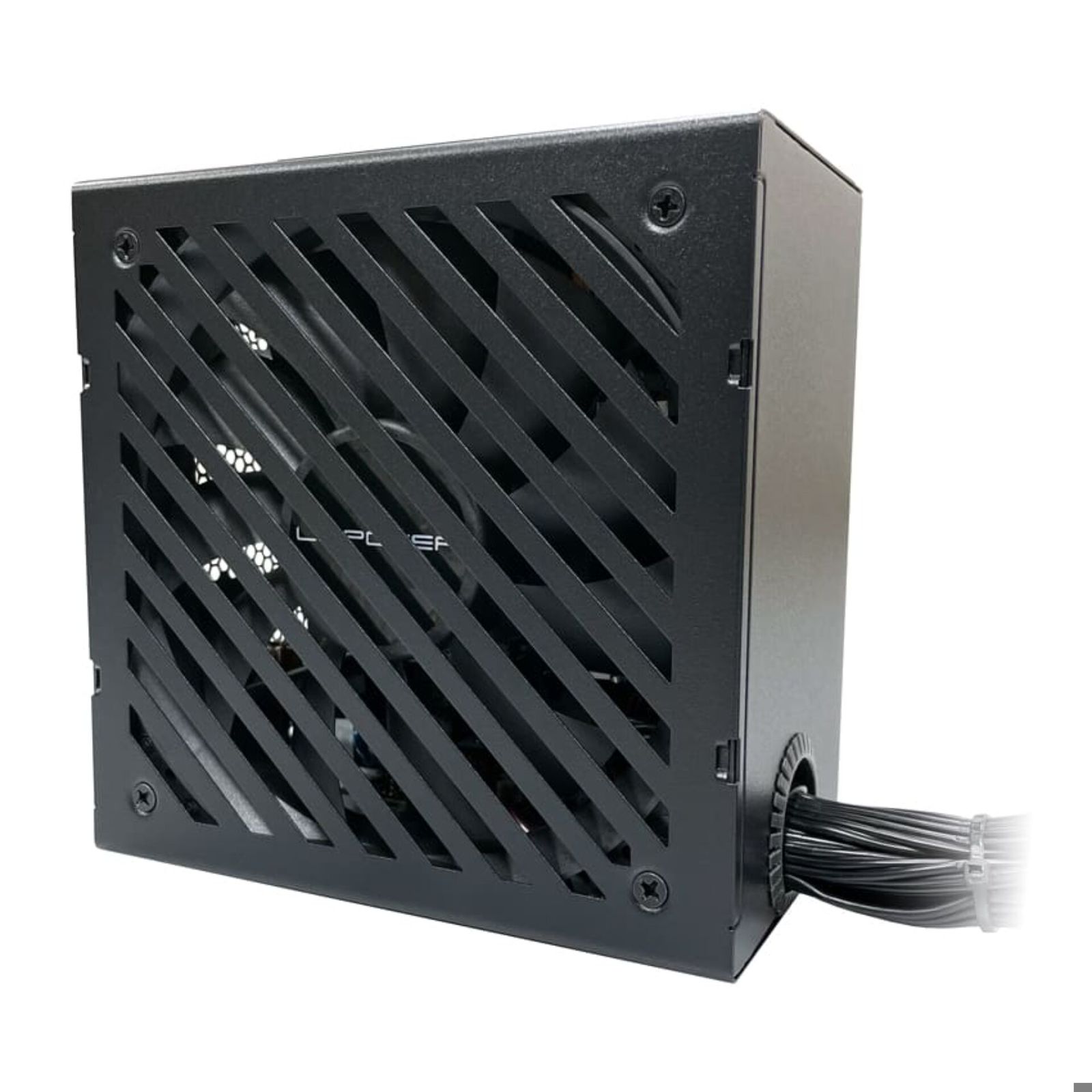

LC-Power LC6550B-SI V3.1

LC-Power LC6550B-SI V3.1, PC Power Supply, PCIe 5.1, 550 W

The LC6550B-SI V3.1 is an 80 PLUS BRONZE certified ATX power supply that offers good performance and system stability. The power supply of the Integrator series provides 550 watts and is a reliable power solution for a variety of applications. Equipped with a quiet 135 mm fan, it operates efficiently and ensures powerful cooling. It is ideal for all mid-range systems.

It features a 20+4-pin motherboard connector that is compatible with most motherboards, as well as a 550 mm 4+4-pin motherboard 12V connector, a 750 mm 4+4-pin motherboard 12V connector, four SATA, and two PATA connectors that provide stable power supply for powerful CPUs, hard drives, and drives. For graphics cards, it has two PCI-Express 6+2-pin connectors and a powerful PCI-Express 5.1 12V 2x6 12+4-pin connector that enables direct and reliable power supply for multiple GPUs.

Features:

• ATX form factor, V 3.1
• Power: 550 W
• Fan: 135 mmBlack flat cables
• 80 PLUS Bronze certified
• Efficiency of up to 85%
• Six safety circuits
• DC-to-DC technology
• Powerful +12 V rail: 45.8 A
• Connectors:
  • 1x Motherboard 20+4-pin, cable length: 550 mm
  • 2x Motherboard 4+4-pin 12V, 8-pin EPS, cable length: 1x 550 / 1x 700 mm
  • 1x PCIe 5.1 / 12V, 12+4-pin, cable length: 1x 600 mm
  • 2x PCIe 6+2-pin, cable length: 1x 550 / 1x 700 mm
  • 4x SATA, cable length: 2x 450 / 2x 600 mm
  • 2x PATA, cable length: 2x 750 mm
• PFC: Active
• Input AC:** 100 – 240 V
• Output DC:** 3.3 / 5 / 12 V (20 / 20 / 45.8 A)
• Safety circuits:** OCP (overcurrent protection), OPP (overpower protection), OVP (overvoltage protection), SCP (short circuit protection), SIP (inrush current protection), UVP (undervoltage protection)
• Material: Metal, plastic
• Dimensions: 86 x 150 x 150 mm
• Weight: approx. 1.74 kg
• Color: Black
