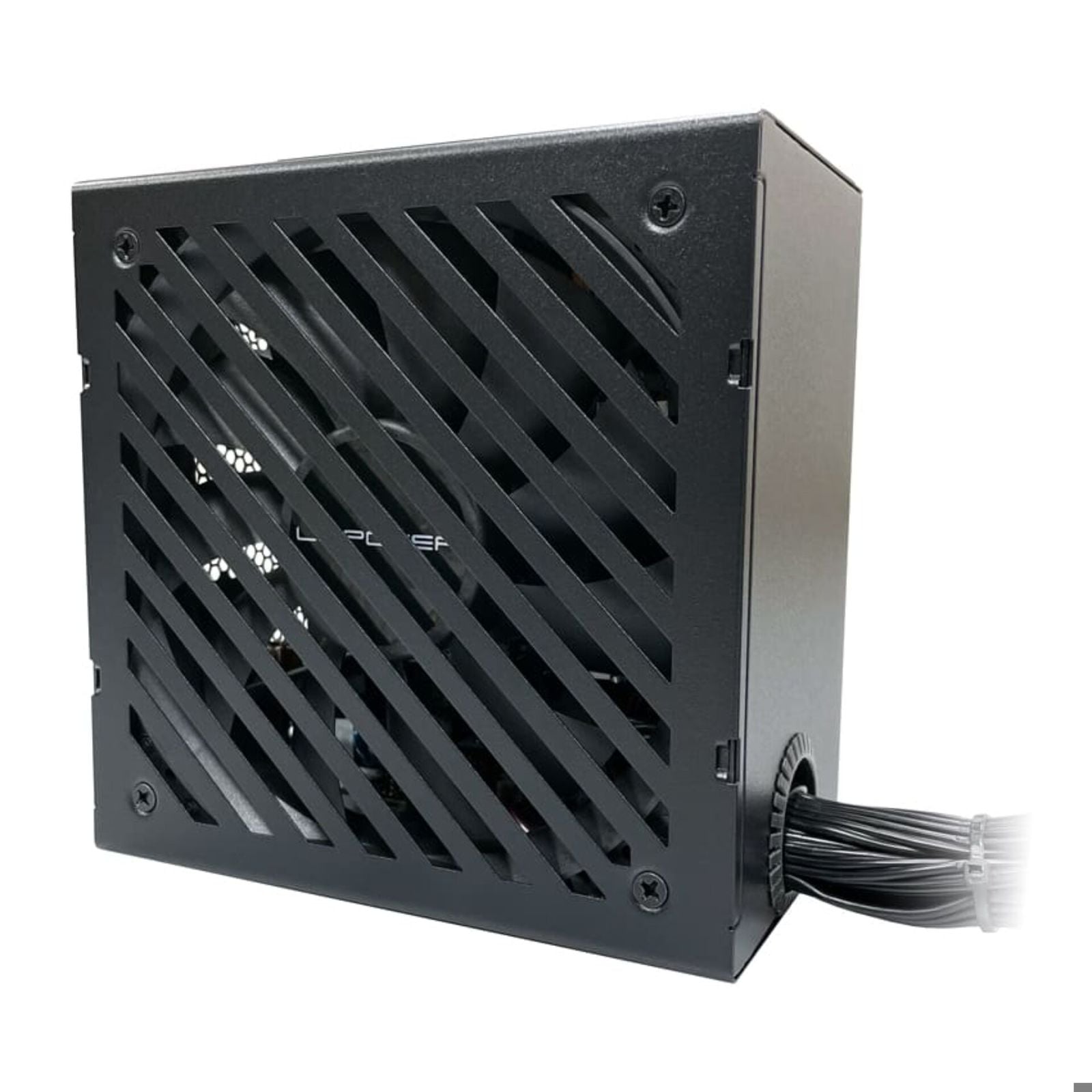

LC-Power LC6750B-SI V3.1

LC-Power LC6750B-SI V3.1, PC Power Supply, PCIe 5.1, 750 W

The LC6750-SI V3.1 is an 80 PLUS BRONZE certified ATX power supply that offers good performance and system stability. The power supply from the Integrator series provides a power output of 750 watts and is a reliable power solution for various applications. Equipped with a quiet 135 mm fan, it operates efficiently and provides powerful cooling. It is ideal for all mid-range systems.

It features a 20+4 pin motherboard connector that is compatible with most motherboards, as well as a 550 mm-4+4 pin motherboard 12V connector, a 750 mm-4+4 pin motherboard 12V connector, four SATA, and two PATA, offering stable power supply for high-performance CPUs, hard drives, and drives.
For graphics cards, it has two PCI-Express 6+2 pin connectors and a powerful PCI-Express 5.1 12V-2x6 12+4 pin connector, providing direct and reliable power supply for multiple GPUs.

Features:

• ATX form factor, V 3.1
• Power output: 750 W
• Fan: 135 mm
• Black flat cables
• 80 PLUS Bronze certified
• Efficiency up to 85%
• Six safety circuits
• DC-to-DC technology
• Powerful +12 V rail: 62.4 A
• Connectors:
  • 1x motherboard 20+44 pin, cable length: 550 mm
  • 2x motherboard 4+4 pin 12V, 8-pin EPS, cable length: 1x 550 mm / 1x 700 mm
  • 1x PCIe 5.1 / 12V, 12+4 pin, cable length: 1x 600 mm
  • 2x PCIe 6+2 pin, cable length: 1x 550 / 1x 700 mm
  • 4x SATA, cable length: 2x 450 mm / 2x 600 mm
  • 2x PATA, cable length: 2x 750 mm
• PFC: active
• Input AC: 100 – 240 V
• Output DC: 3.3 / 5 / 12 V (20 / 20 / 62.4 A)
• Safety circuits: OCP (overcurrent protection), OPP (overpower protection), OVP (overvoltage protection), SCP (short circuit protection), SIP (inrush current protection), UVP (undervoltage protection)
• Material: metal, plastic
• Dimensions: 86 x 150 x 150 mm
• Weight: approx. 1.85 kg
• Color: black
