LC-Power LC6850B-SI V3.1

LC-Power LC6850B-SI V3.1, PC Power Supply, PCIe 5.1, 850 W

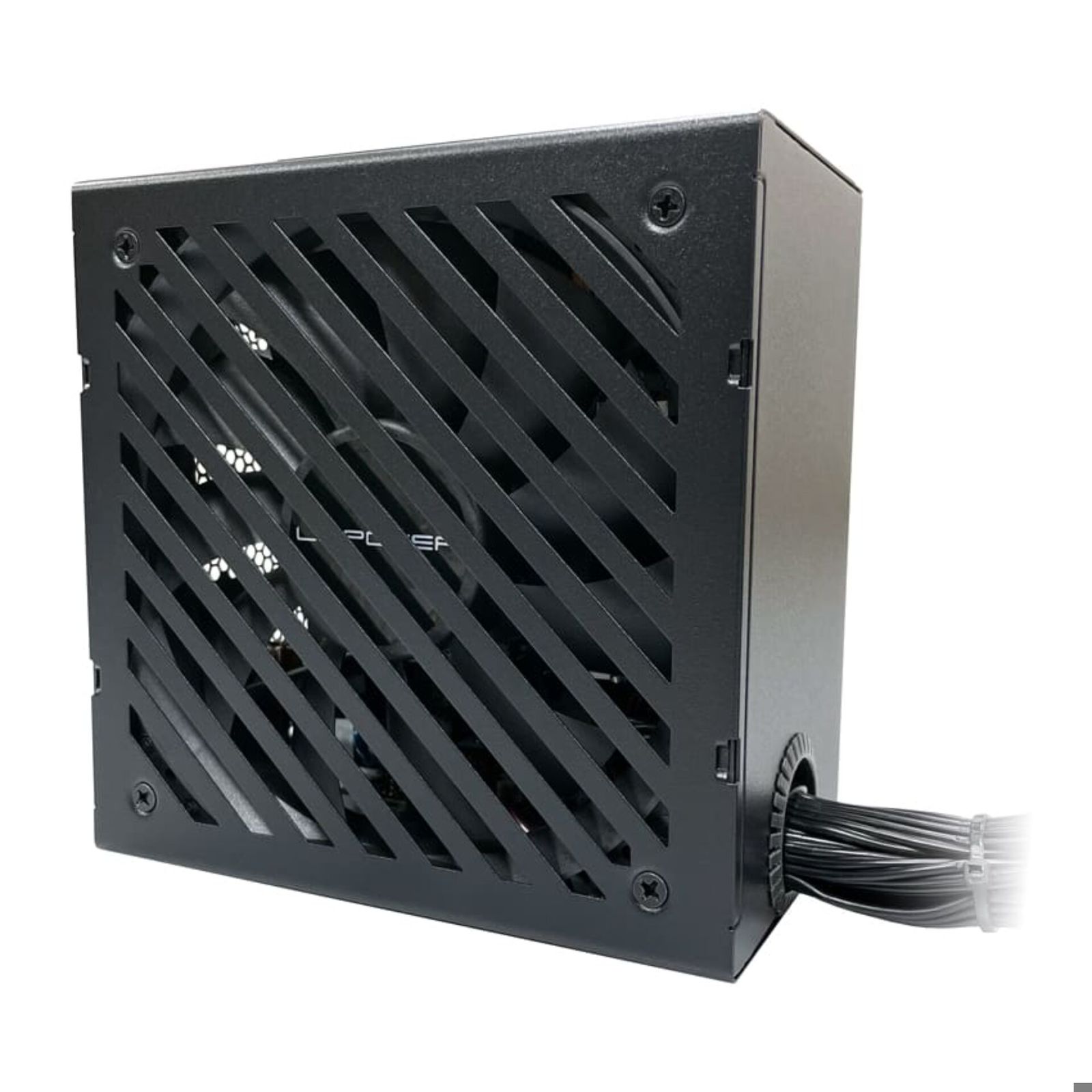

The LC6850-SI V3.1 is an 80 PLUS BRONZE-certified ATX power supply that provides good performance and system stability. The Integrator series power supply offers a power output of 850 watts and is a reliable power solution for a variety of applications. Equipped with a quiet 135 mm fan, it operates efficiently and ensures powerful cooling. It is ideal for all mid-range systems.

It features a 20+4-pin mainboard connector that is compatible with most motherboards, as well as a 550 mm 4+4-pin mainboard 12V connector, a 750 mm 4+4-pin mainboard 12V connector, four SATA and two PATA, providing stable power for high-performance CPUs, hard drives, and optical drives. For graphics cards, it has two PCI-Express 6+2-pin connectors and a powerful PCI-Express 5.1 12V 2x6 12+4-pin connector, enabling direct and reliable power for multiple GPUs.

Features:

• ATX Form Factor, V 3.1
• Power: 850 W
• Fan: 135 mm
• Black flat cables
• 80 PLUS Bronze certified
• Efficiency up to 85%
• Six safety circuits
• DC-to-DC technology
• Powerful +12 V rail: 70.8 A
• Connectors:
  • 1x Mainboard 20+4-pin, Cable Length: 550 mm
  • 2x Mainboard 4+4-pin 12V, 8-pin EPS, Cable Length: 1x 550 / 1x 700 mm
  • 1x PCIe 5.1 / 12V, 12+4-pin, Cable Length: 1x 600 mm
  • 2x PCIe 6+2-pin, Cable Length: 1x 550 / 1x 700 mm
  • 4x SATA, Cable Length: 2x 450 / 2x 600 mm
  • 2x PATA, Cable Length: 2x 750 mm
• PFC: Active
• Input AC: 100 – 240 V
• Output DC: 3.3 / 5 / 12 V (20 / 20 / 70.8 A)
• Safety Circuits: OCP (Overcurrent Protection), OPP (Overpower Protection), OVP (Overvoltage Protection), SCP (Short Circuit Protection), SIP (Surge Protection), UVP (Undervoltage Protection)
• Material: Metal, Plastic
• Dimensions: 86 x 150 x 150 mm
• Weight: approx. 1.88 kg
• Color: Black
