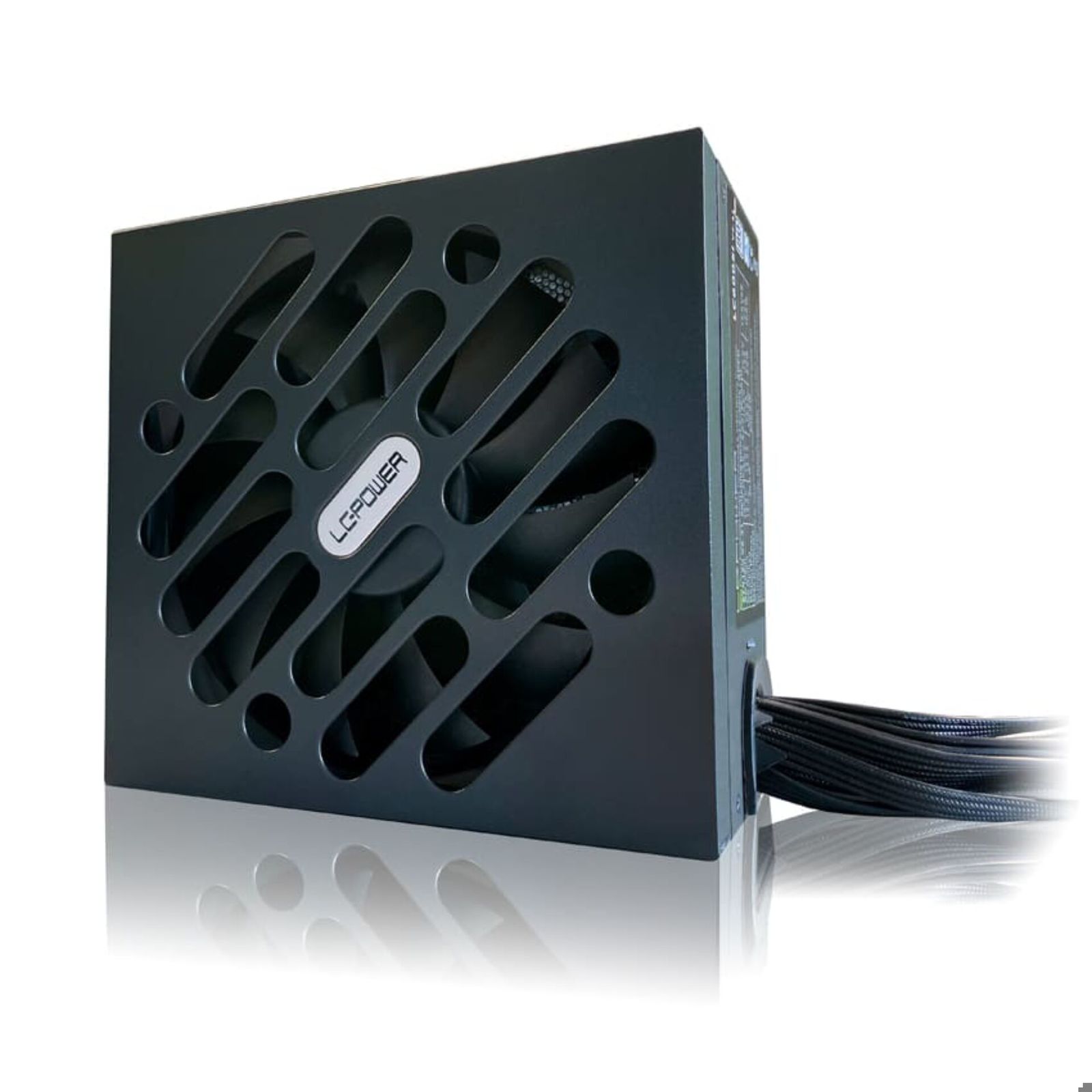

LC-Power LC700SI V2.31

LC-Power LC700SI V2.31, 80 Plus PC Power Supply with ATX V2.31, 700 W

The 700 Watt power supply LC700SI V2.31 from the Integrator series is 80 PLUS Standard certified and offers high energy efficiency.

With ATX 2.31 support, it is compatible with a wide range of PC systems and ensures stable voltage supply. The integrated 140 mm fan provides quiet and efficient cooling even under high load. A power supply unit that optimally combines performance and efficiency.

Features:

• 700 Watt: Reliable power for your components
• ATX form factor: Compatible with a variety of cases
• 80 PLUS STANDARD certification for up to 85% efficiency
• Black sleeved flat cables for a tidy appearance
• Five safety circuits (OVP, OCP, OPP, OTP, SCP) for maximum protection
• Powerful +12 V rail with 58.3 A for high stability
• 140 mm fan for efficient and quiet cooling
• 3x PCI-Express 6+2-pin connectors for graphics cards
• Practical dust protection with a removable dust filter

Technical Specifications:

• Power: 700 W
• Form factor: ATX, version 2.31
• Fan: 140 mm
• Non-modular
• Connectors:
  • 1x motherboard 20+4-pin, cable length: 550 mm
  • 2x motherboard 4+4-pin 12V 8-pin EPS, cable length: 1x 600 mm / 1x 720 mm
  • 3x PCI-Express 6+2-pin, cable length: 550 mm
  • 6x SATA, cable length: 2x 480 / 2x 620 / 2x 760 mm
  • 3x PATA, cable length: 1x 500 / 650 / 800 mm
  • 1x FDD, cable length: 930 mm
• PFC: active
• AC input: 180 - 240 V, 7.0 A, 50 - 60 Hz
• DC output: 3.3 / 5 / 12 V (14 / 14 / 58.3 A)
• Efficiency: up to 85%
• Certified: 80 Plus
• Safety circuits: Over Voltage Protection (OVP), Over Current Protection (OCP), Over Power Protection (OPP), Over Temperature Protection (OTP), Short Circuit Protection (SCP)
• Material: Metal, plastic
• Dimensions: 87 x 150 x 160 mm
• Weight: 1.79 kg
• Color: black
