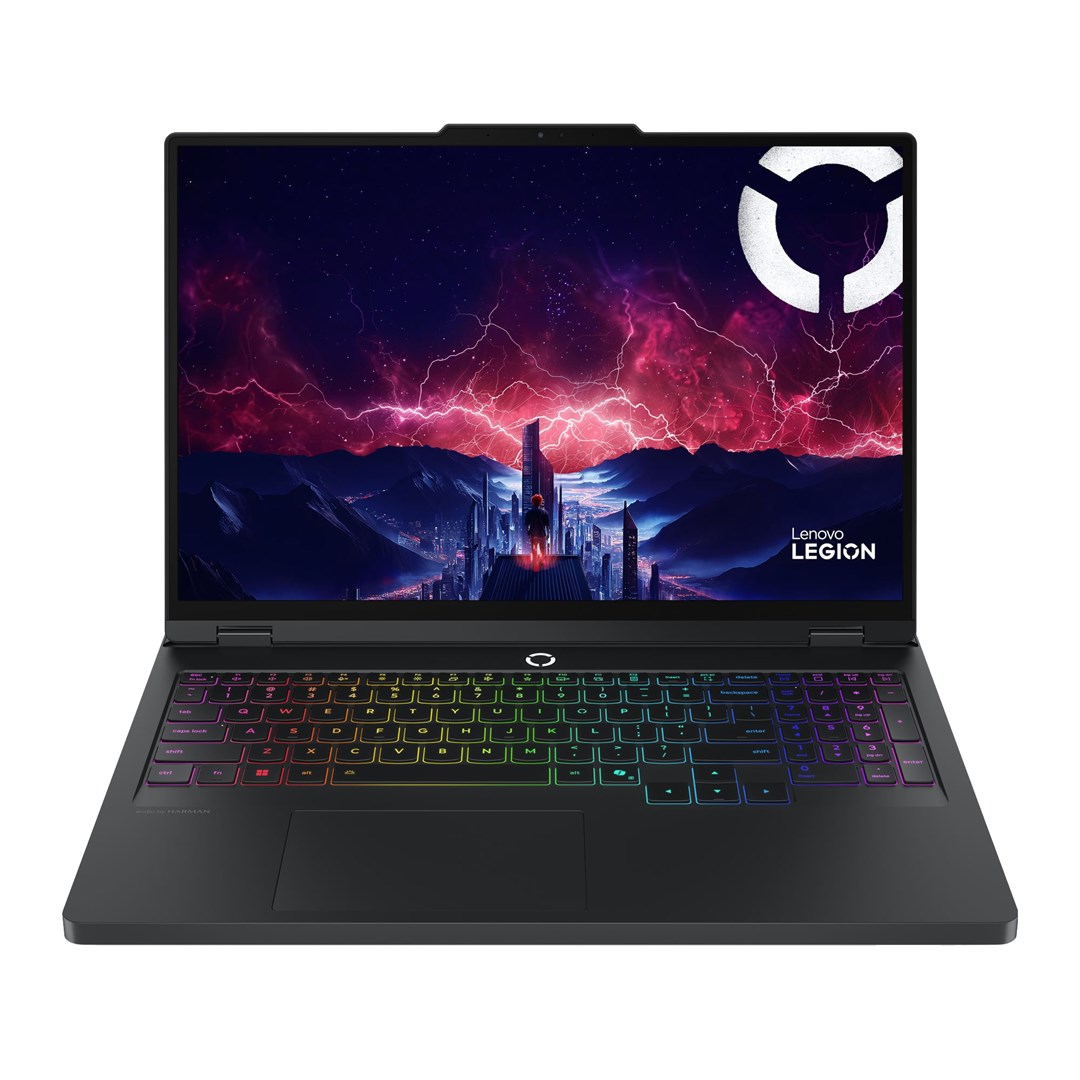

Lenovo Legion Pro 5 16ADR10 Ryzen 9 8945HX 16 WQXGA IPS 500 nits 240 Hz AG 32 GB DDR5 5200 SSD 1 TB GeForce RTX 5060 8 GB NoOS Eclipse Black

Processor
Processor threads: 32
Processor frequency: 2.5 GHz
Processor boost frequency: 5.4 GHz
Processor cores: 16
Processor model: 8945HX
Processor family: AMD Ryzen™ 9
Processor manufacturer: AMD
L3 cache: 64 MB
Processor base power: 55 W
Processor generation: AMD Ryzen 8000 Series

Graphics
Discrete graphics card model: NVIDIA GeForce RTX 5060
Discrete graphics card memory: 8 GB
Discrete graphics memory type: GDDR7
Discrete GPU manufacturer: NVIDIA
Discrete graphics card: Yes

Memory
Internal memory: 32 GB
Memory form factor: SO-DIMM
Internal memory type: DDR5-SDRAM
Memory clock speed: 5200 MHz
Maximum internal memory: 32 GB
Memory layout (slots x size): 2 x 16 GB
Memory slots: 2x SO-DIMM

Design
Product colour: Black
Housing material: Aluminium, PC-ABS
Colour name: Eclipse Black
Product type: Laptop

Power
AC adapter input voltage: 100 - 240 V
USB Type-C charging port: Yes
AC adapter frequency: 50/60 Hz
AC adapter power: 245 W
USB Power Delivery (USB PD): Yes

Security
Trusted Platform Module (TPM): Yes
Fingerprint reader: No
Trusted Platform Module (TPM) version: 2.0

Weight & dimensions
Depth: 268.1 mm
Width: 364.4 mm
Weight: 2.4 kg
Height (rear): 2.6 cm
Height (front): 2.17 cm

Network
Bluetooth: Yes
Antenna type: 2x2
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Ethernet LAN data rates: 100, 1000 Mbit/s
Wi-Fi standards: Wi-Fi 6 (802.11ax)
WWAN: Not installed
Bluetooth version: 5.2

Performance
Motherboard chipset: AMD SoC

Display
Display diagonal: 40.6 cm (16")
Display surface: Gloss
LED backlight: Yes
Display resolution: 2560 x 1600 pixels
HD type: WQXGA
Native aspect ratio: 16:10
High Dynamic Range (HDR) technology: Dolby Vision, DisplayHDR 400
Panel type: IPS
Colour gamut: 100%
High Dynamic Range (HDR) supported: Yes
Touchscreen: No
RGB colour space: DCI-P3
Maximum refresh rate: 240 Hz
Display brightness: 500 cd/m²

Software
Operating system installed: No

Audio
Built-in microphone: Yes
Audio chip: Realtek ALC3306
Number of built-in speakers: 2
Number of microphones: 2
Speaker power: 2 W

Storage
Storage media: SSD
Optical drive type: No
Card reader integrated: No
Total storage capacity: 1 TB
Total SSDs capacity: 1 TB
SSD interface: PCI Express 4.0
SSD capacity: 1 TB
NVMe: Yes
Number of SSDs installed: 1
SSD form factor: M.2

Ports & interfaces
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
HDMI ports quantity: 1
Combo headphone/mic port: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

Camera
Front camera resolution (numeric): 5 MP

Battery
Battery capacity: 80 Wh

Keyboard
Copilot key: Yes
Pointing device: Touchpad
Numeric keypad: Yes
Keyboard backlit colour: RGB
Keyboard backlit: Yes
Keyboard backlit zone: 24-zone RGB
