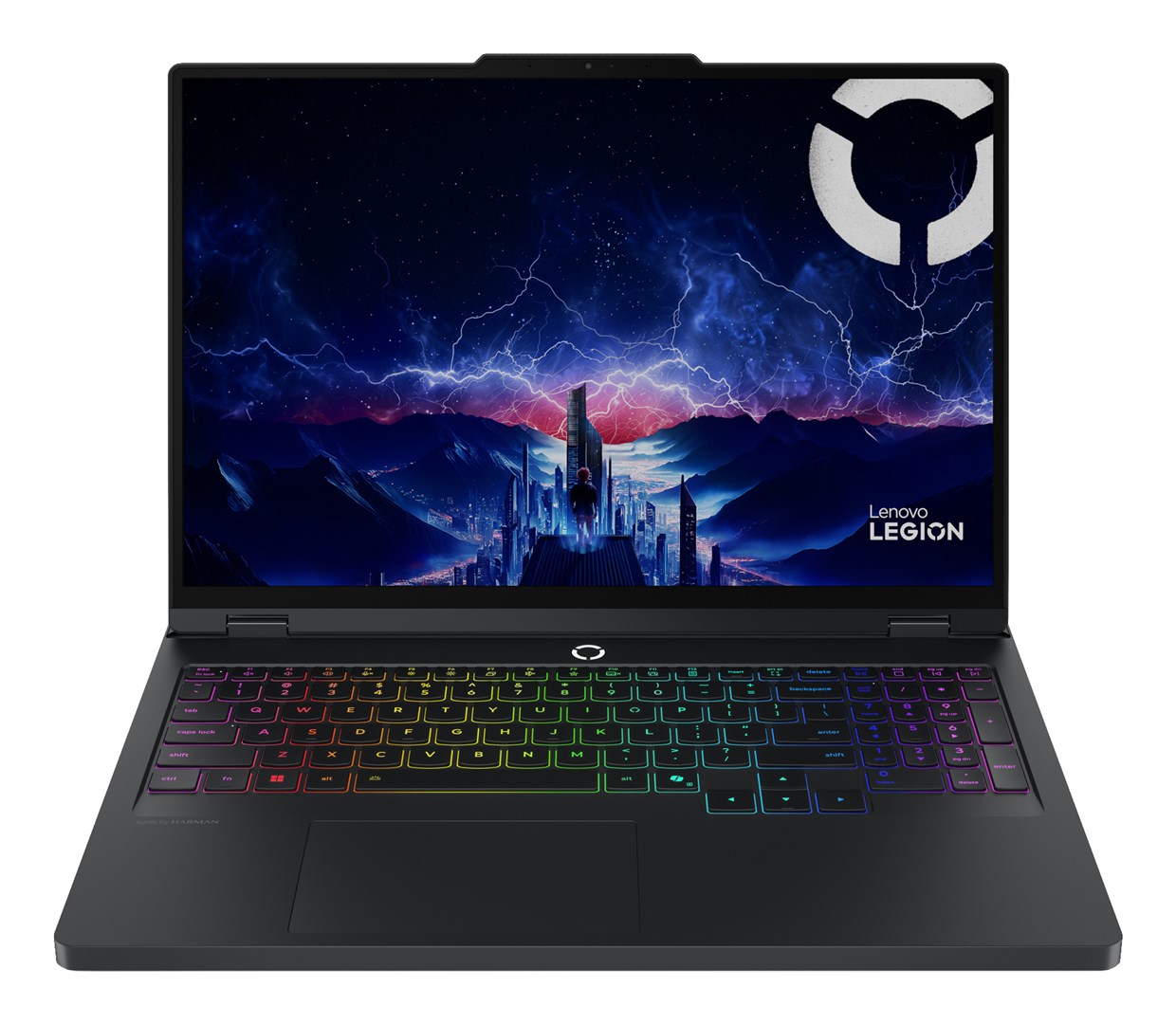

Lenovo Legion Pro 5 16IAX10 Intel Core Ultra 7 255HX Laptop 40.6 cm (16) WQXGA 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5060 Wi-Fi 7 (802.11be) Windows 11 Home Black

Processor
Processor cores: 20
Processor manufacturer: Intel
Processor model: 255HX
Processor family: Intel Core Ultra 7

Graphics
Discrete graphics card memory: 8 GB
Discrete graphics card model: NVIDIA GeForce RTX 5060
Discrete graphics memory type: GDDR7
Discrete graphics card: Yes

Memory
Internal memory type: DDR5-SDRAM
Memory clock speed: 5600 MHz
Maximum internal memory: 32 GB
Memory form factor: SO-DIMM
Internal memory: 32 GB
Memory slots: 2x SO-DIMM
Memory layout (slots x size): 2 x 16 GB

Design
Product colour: Black
Housing material: Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)
Colour name: Eclipse Black
Product type: Laptop

Power
USB Type-C charging port: Yes
USB Power Delivery (USB PD): Yes
AC adapter power: 245 W

Security
Trusted Platform Module (TPM): Yes
Fingerprint reader: No
Trusted Platform Module (TPM) version: 2.0

Weight & dimensions
Weight: 2.43 kg
Width: 364.4 mm
Height (rear): 2.6 cm
Height (front): 2.17 cm
Depth: 268.1 mm

Network
Bluetooth: Yes
Ethernet LAN data rates: 1000, 100
Antenna type: 2x2
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Bluetooth version: 5.4
Ethernet LAN: Yes
WWAN: Not installed
Mobile network connection: No

Performance
Motherboard chipset: Intel HM870

Packaging content
AC adapter included: Yes

Display
Display diagonal: 40.6 cm (16")
Native aspect ratio: 16:10
Display surface: Gloss
LED backlight: Yes
HD type: WQXGA
Display resolution: 2560 x 1600 pixels
RGB colour space: DCI-P3
Panel type: OLED
High Dynamic Range (HDR) technology: DisplayHDR True Black 1000, Dolby Vision
Colour gamut: 100%
Maximum refresh rate: 165 Hz
Display brightness: 500 cd/m²
Touchscreen: No
High Dynamic Range (HDR) supported: Yes

Software
Operating system installed: Windows 11 Home
Operating system architecture: 64-bit

Audio
Audio chip: Realtek ALC3306
Built-in microphone: Yes
Number of microphones: 2
Speaker power: 2 W
Number of built-in speakers: 2

Storage
Card reader integrated: No
Storage media: SSD
Optical drive type: No
Total storage capacity: 1 TB
NVMe: Yes
SSD form factor: M.2
SSD interface: PCI Express 4.0
Number of SSDs installed: 1
Total SSDs capacity: 1 TB
SSD capacity: 1 TB

Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
HDMI version: 2.1
HDMI ports quantity: 1
Combo headphone/mic port: Yes
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Thunderbolt 4 ports quantity: 1
USB Sleep-and-Charge: Yes

Camera
Front camera resolution (numeric): 5 MP

Battery
Battery capacity: 80 Wh

Keyboard
Pointing device: Touchpad
Numeric keypad: Yes
Keyboard backlit zone: 24-zone RGB
Keyboard backlit colour: RGB
Keyboard backlit: Yes

Safety warning
Hazard pictogram(s): GHS08: Health hazard, GHS09: Environmental hazard, GHS07: Harmful
Warnings: Keep out of reach of children to avoid risk of electric shock., Do not dispose of in normal household waste; appropriate disposal must be carried out in accordance with environmental regulations., The device may become hot during operation; use caution to avoid burns.
