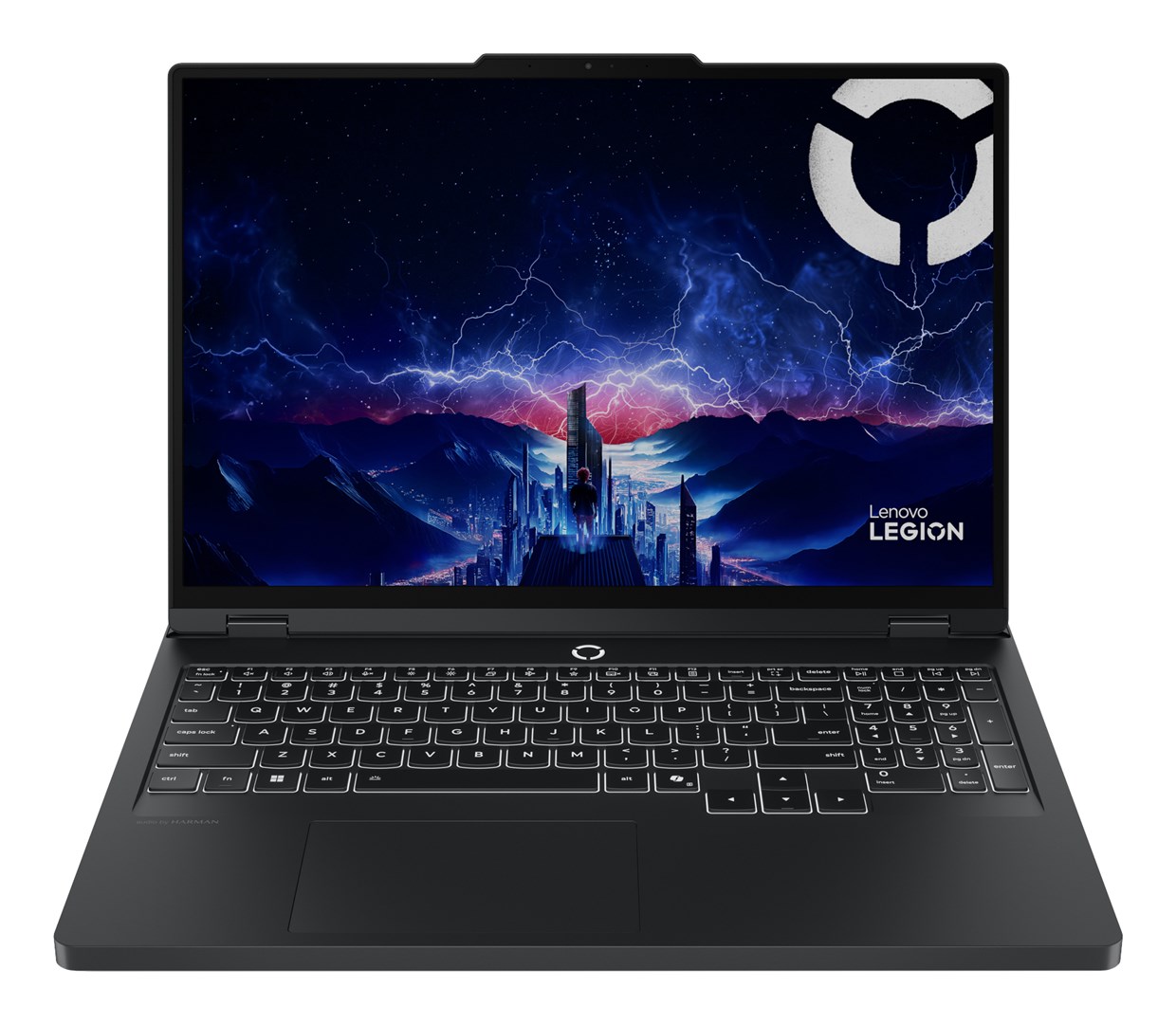

Lenovo Legion Pro 5 16IAX10 Intel Core Ultra 7 255HX Laptop 40,6 cm (16) WQXGA 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5070 Wi-Fi 7 (802.11be) NoOS Black

Processor
Performance-core Max Turbo Frequency: 5.2 GHz
Processor generation: Intel Core Ultra (Series 2)
Maximum turbo power: 160 W
Efficient-core Max Turbo Frequency: 4.5 GHz
Performance cores: 8
Efficient cores: 12
Performance-core base frequency: 2.4 GHz
Processor base power: 55 W
Efficient-core base frequency: 1.8 GHz
Processor threads: 20
Processor model: 255HX
Processor cores: 20
Processor family: Intel Core Ultra 7
Processor boost frequency: 5.2 GHz
Processor manufacturer: Intel
Processor cache: 30 MB

Graphics
On-board GPU manufacturer: Intel
Discrete GPU manufacturer: NVIDIA
Discrete graphics memory type: GDDR7
On-board graphics card model: Intel® Graphics
Discrete graphics card memory: 8 GB
Discrete graphics card model: NVIDIA GeForce RTX 5070
On-board graphics card family: Intel® Graphics
Discrete graphics card: Yes
On-board graphics card: Yes

Memory
Maximum internal memory: 32 GB
Internal memory: 32 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 2 x 16 GB
Memory form factor: SO-DIMM
Memory clock speed: 5600 MHz
Memory slots: 2x SO-DIMM

Design
Colour name: Eclipse black
Product colour: Black
Product type: Laptop
Housing material: Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)

Power
USB Power Delivery (USB PD): Yes
AC adapter input voltage: 100 - 240 V
AC adapter power: 245 W
AC adapter frequency: 50/60 Hz
USB Type-C charging port: Yes

Security
Trusted Platform Module (TPM) version: 2.0
Trusted Platform Module (TPM): Yes
Fingerprint reader: No

Operational conditions
Operating relative humidity (H-H): 8 - 95%
Storage temperature (T-T): 5 - 43 °C
Storage relative humidity (H-H): 5 - 95%
Operating temperature (T-T): 5 - 35 °C

Weight & dimensions
Height (rear): 2.6 cm
Height (front): 2.17 cm
Weight: 2.43 kg
Width: 364.4 mm
Depth: 268.1 mm

Network
WWAN: Not installed
Mobile network connection: No
Bluetooth: Yes
Antenna type: 2x2
Ethernet LAN data rates: 1000 Mbit/s, 100
Wi-Fi standards: Wi-Fi 7 (802.11be)
Bluetooth version: 5.4
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Ethernet LAN: Yes

Performance
Motherboard chipset: Intel HM870

Packaging content
AC adapter included: Yes

Display
RGB colour space: DCI-P3
Maximum refresh rate: 165 Hz
High Dynamic Range (HDR) supported: Yes
High Dynamic Range (HDR) technology: Dolby Vision, DisplayHDR True Black 1000
Colour gamut: 100%
LED backlight: Yes
Display surface: Gloss
Display resolution: 2560 x 1600 pixels
HD type: WQXGA
Display diagonal: 40.6 cm (16")
Native aspect ratio: 16:10
Display brightness: 500 cd/m²
Panel type: OLED
Touchscreen: No

Software
Operating system installed: N

Audio
Number of built-in speakers: 2
Speaker power: 2 W
Built-in microphone: Yes
Audio chip: Realtek ALC3306
Number of microphones: 2

Storage
Optical drive type: No
SSD interface: PCI Express 4.0
SSD capacity: 1 TB
Card reader integrated: No
Storage media: SSD
NVMe: Yes
Total storage capacity: 1 TB
SSD form factor: M.2
Total SSDs capacity: 1 TB
Number of SSDs installed: 1

Ports & interfaces
USB Sleep-and-Charge: Yes
Thunderbolt 4 ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Combo headphone/mic port: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
HDMI version: 2.1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

Camera
Front camera resolution (numeric): 5 MP

Battery
Battery capacity: 80 Wh

Keyboard
Keyboard backlit colour: RGB
Keyboard backlit: Yes
Numeric keypad: Yes
Pointing device: Touchpad

Safety warning
Warnings: Keep out of reach of children to avoid risk of electric shock., The device may become hot during operation; use caution to avoid burns., Do not dispose of in normal household waste; appropriate disposal must be carried out in accordance with environmental regulations.
Hazard pictogram(s): GHS07: Harmful, GHS09: Environmental hazard, GHS08: Health hazard

Neural processor unit (NPU)
AI software frameworks supported by NPU: DirectML, OpenVINO, WebNN, ONNX RT, Windows ML
GPU performance up to: 8 TOPs
NPU performance up to: 13 TOPs
Windows Studio effects support: Yes
Neural processor unit (NPU): Intel AI Boost
Sparsity support: Yes
Total processor performance up to: 33 TOPs
