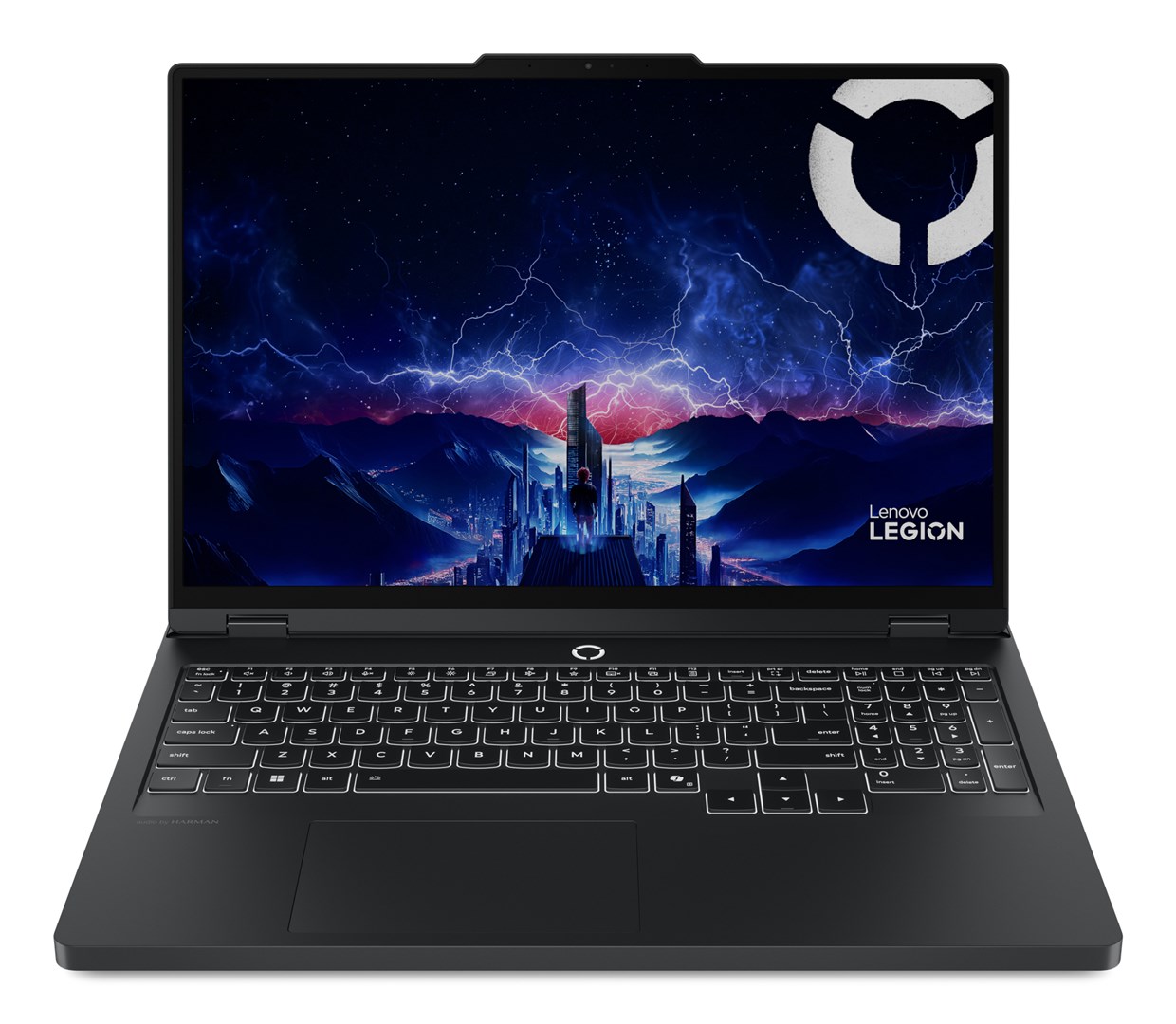

Lenovo Legion Pro 5 16IAX10 Intel Core Ultra 7 255HX Laptop 40,6 cm (16) WQXGA 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5070 Wi-Fi 7 (802.11be) Windows 11 Home Black

Processor
Processor boost frequency: 5.2 GHz
Processor manufacturer: Intel
Processor threads: 20
Processor family: Intel Core Ultra 7
Processor cores: 20
Processor cache: 30 MB
Processor model: 255HX
Efficient-core base frequency: 1.8 GHz
Performance cores: 8
Efficient cores: 12
Performance-core base frequency: 2.4 GHz
Processor base power: 55 W
Maximum turbo power: 160 W
Efficient-core Max Turbo Frequency: 4.5 GHz
Performance-core Max Turbo Frequency: 5.2 GHz
Processor generation: Intel Core Ultra (Series 2)

Graphics
Discrete graphics card model: NVIDIA GeForce RTX 5070
On-board graphics card: Yes
On-board graphics card family: Intel® Graphics
On-board graphics card model: Intel® Graphics
Discrete graphics card memory: 8 GB
Discrete graphics card: Yes
Discrete graphics memory type: GDDR7
Discrete GPU manufacturer: NVIDIA
On-board GPU manufacturer: Intel

Memory
Maximum internal memory: 32 GB
Internal memory type: DDR5-SDRAM
Internal memory: 32 GB
Memory clock speed: 5600 MHz
Memory form factor: SO-DIMM
Memory slots: 2x SO-DIMM
Memory layout (slots x size): 2 x 16 GB

Design
Product colour: Black
Product type: Laptop
Housing material: Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)
Colour name: Eclipse black

Power
AC adapter input voltage: 100 - 240 V
USB Type-C charging port: Yes
USB Power Delivery (USB PD): Yes
AC adapter frequency: 50/60 Hz
AC adapter power: 245 W

Security
Trusted Platform Module (TPM): Yes
Trusted Platform Module (TPM) version: 2.0
Fingerprint reader: No

Operational conditions
Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): 5 - 43 °C
Storage relative humidity (H-H): 5 - 95%
Operating relative humidity (H-H): 8 - 95%

Weight & dimensions
Width: 364.4 mm
Weight: 2.43 kg
Depth: 268.1 mm
Height (rear): 2.6 cm
Height (front): 2.17 cm

Network
Bluetooth: Yes
Ethernet LAN data rates: 100, 1000 Mbit/s
Antenna type: 2x2
Wi-Fi standards: Wi-Fi 7 (802.11be)
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Bluetooth version: 5.4
Mobile network connection: No
WWAN: Not installed

Performance
Motherboard chipset: Intel HM870

Packaging content
AC adapter included: Yes

Display
Display diagonal: 40.6 cm (16")
Display surface: Gloss
LED backlight: Yes
Display resolution: 2560 x 1600 pixels
Native aspect ratio: 16:10
HD type: WQXGA
RGB colour space: DCI-P3
Maximum refresh rate: 165 Hz
Panel type: OLED
Touchscreen: No
Display brightness: 500 cd/m²
High Dynamic Range (HDR) supported: Yes
Colour gamut: 100%
High Dynamic Range (HDR) technology: Dolby Vision, DisplayHDR True Black 1000

Software
Operating system installed: Windows 11 Home
Operating system architecture: 64-bit

Audio
Audio chip: Realtek ALC3306
Built-in microphone: Yes
Number of microphones: 2
Speaker power: 2 W
Number of built-in speakers: 2

Storage
Storage media: SSD
Total storage capacity: 1 TB
Optical drive type: No
Card reader integrated: No
SSD capacity: 1 TB
NVMe: Yes
SSD form factor: M.2
Total SSDs capacity: 1 TB
SSD interface: PCI Express 4.0
Number of SSDs installed: 1

Ports & interfaces
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Combo headphone/mic port: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 1
Thunderbolt 4 ports quantity: 1
USB Sleep-and-Charge: Yes

Camera
Front camera resolution (numeric): 5 MP

Battery
Battery capacity: 80 Wh

Keyboard
Pointing device: Touchpad
Numeric keypad: Yes
Keyboard backlit colour: RGB
Keyboard backlit: Yes

Safety warning
Hazard pictogram(s): GHS09: Environmental hazard, GHS07: Harmful, GHS08: Health hazard
Warnings: The device may become hot during operation; use caution to avoid burns., Do not dispose of in normal household waste; appropriate disposal must be carried out in accordance with environmental regulations., Keep out of reach of children to avoid risk of electric shock.

Neural processor unit (NPU)
AI software frameworks supported by NPU: OpenVINO, WebNN, Windows ML, DirectML, ONNX RT
Sparsity support: Yes
Neural processor unit (NPU): Intel AI Boost
NPU performance up to: 13 TOPs
Windows Studio effects support: Yes
Total processor performance up to: 33 TOPs
GPU performance up to: 8 TOPs
