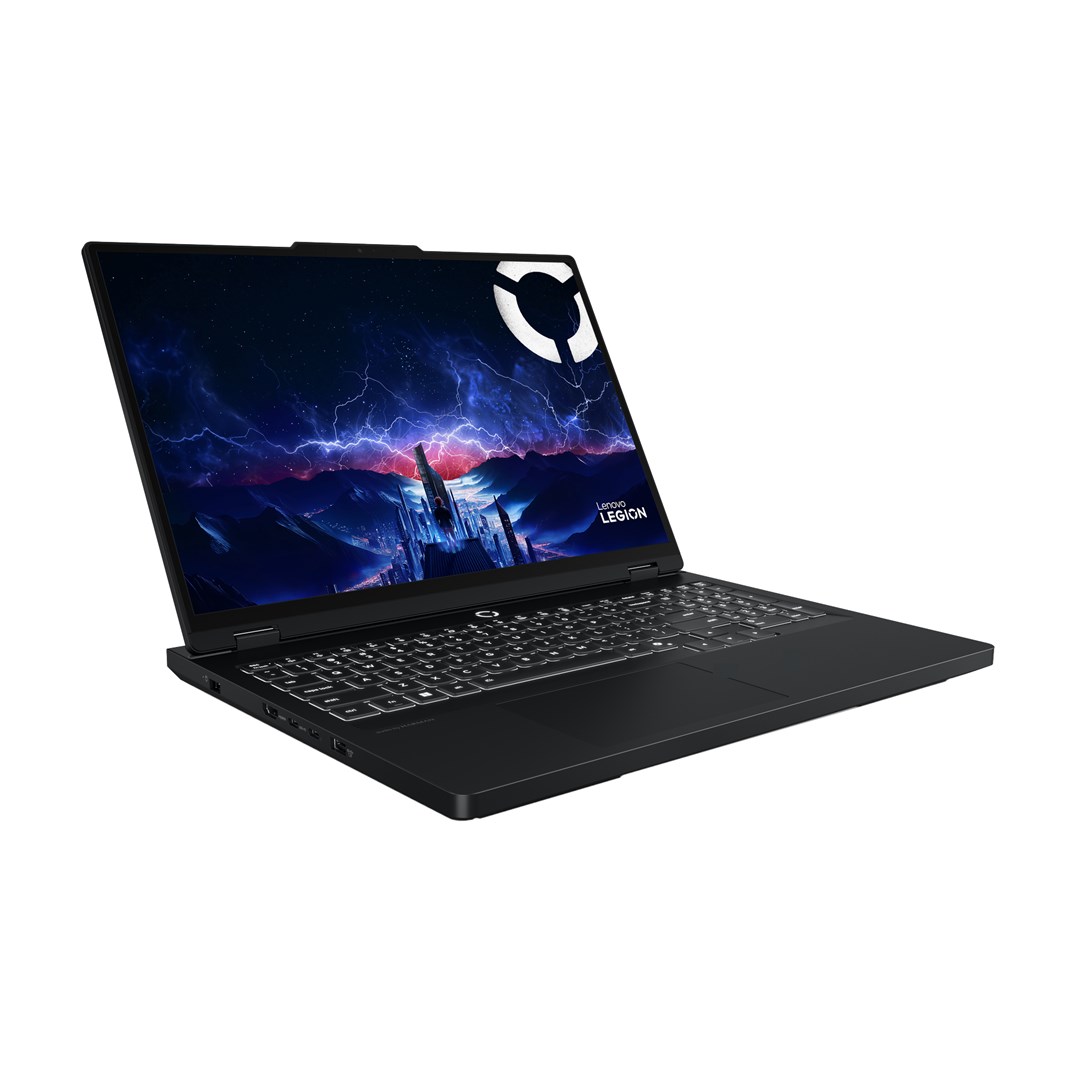

Lenovo Legion Pro 5 16IRX10 Intel® Core™ i7 i7-14650HX Laptop 40.6 cm (16) WQXGA 16 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5060 Wi-Fi 6 (802.11ax) NoOS Black

Processor
Processor threads: 24
Processor cache: 30 MB
Processor family: Intel® Core™ i7
Processor model: i7-14650HX
Processor cache type: Smart Cache
Processor cores: 16
Processor manufacturer: Intel
Processor boost frequency: 5.2 GHz
Efficient cores: 8
Maximum turbo power: 157 W
Processor generation: Intel® Core™ i7 (14th gen)
Performance-core base frequency: 2.2 GHz
Performance cores: 8
Processor base power: 55 W
Efficient-core base frequency: 1.6 GHz
Performance-core Max Turbo Frequency: 5.2 GHz
Efficient-core Max Turbo Frequency: 3.7 GHz

Graphics
On-board graphics card model: Intel® UHD Graphics
Discrete graphics card memory: 8 GB
Discrete graphics card model: NVIDIA GeForce RTX 5060
On-board graphics card: Yes
On-board GPU manufacturer: Intel
Discrete graphics card: Yes
Discrete GPU manufacturer: NVIDIA
On-board graphics card family: Intel® UHD Graphics
Discrete graphics memory type: GDDR7

Memory
Memory form factor: SO-DIMM
Internal memory type: DDR5-SDRAM
Memory clock speed: 5600 MHz
Internal memory: 16 GB
Maximum internal memory: 32 GB
Memory layout (slots x size): 1 x 16 GB
Memory slots: 2x SO-DIMM

Design
Product colour: Black
Housing material: Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)
Product type: Laptop
Colour name: Eclipse Black

Power
AC adapter input voltage: 100 - 240 V
USB Power Delivery (USB PD): Yes
AC adapter power: 245 W
AC adapter frequency: 50/60 Hz
USB Type-C charging port: Yes

Security
Trusted Platform Module (TPM): Yes
Fingerprint reader: No
Trusted Platform Module (TPM) version: 2.0

Operational conditions
Operating relative humidity (H-H): 8 - 95%
Storage relative humidity (H-H): 5 - 95%
Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): 5 - 43 °C

Weight & dimensions
Weight: 2.4 kg
Depth: 268.1 mm
Width: 364.4 mm

Network
Antenna type: 2x2
Wi-Fi standards: Wi-Fi 6 (802.11ax)
Bluetooth: Yes
Ethernet LAN data rates: 1000 Mbit/s, 100
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
WWAN: Not installed
Bluetooth version: 5.2
Mobile network connection: No

Performance
Motherboard chipset: Intel HM770

Packaging content
AC adapter included: Yes

Display
LED backlight: Yes
Display resolution: 2560 x 1600 pixels
Native aspect ratio: 16:10
Display diagonal: 40.6 cm (16")
HD type: WQXGA
RGB colour space: DCI-P3
Panel type: IPS
Display brightness: 500 cd/m²
Touchscreen: No
Anti-glare screen: Yes
Maximum refresh rate: 240 Hz
High Dynamic Range (HDR) technology: DisplayHDR 400, Dolby Vision
High Dynamic Range (HDR) supported: Yes
Colour gamut: 100%

Software
Operating system installed: N

Audio
Built-in microphone: Yes
Audio chip: Realtek ALC3287
Speaker power: 2 W
Number of built-in speakers: 2
Number of microphones: 2

Storage
Storage media: SSD
Card reader integrated: No
Optical drive type: No
Total storage capacity: 1 TB
SSD form factor: M.2
SSD capacity: 1 TB
NVMe: Yes
SSD interface: PCI Express 4.0
Total SSDs capacity: 1 TB
Number of SSDs installed: 1

Ports & interfaces
HDMI version: 2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
Combo headphone/mic port: Yes
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB Sleep-and-Charge: Yes

Camera
Front camera resolution (numeric): 5 MP

Battery
Battery capacity: 80 Wh

Keyboard
Pointing device: Touchpad
Numeric keypad: Yes
Keyboard backlit colour: RGB
Keyboard backlit: Yes

Safety warning
Warnings: The device may become hot during operation; use caution to avoid burns., Do not dispose of in normal household waste; appropriate disposal must be carried out in accordance with environmental regulations., Keep out of reach of children to avoid risk of electric shock.
Hazard pictogram(s): GHS07: Harmful, GHS09: Environmental hazard, GHS08: Health hazard
