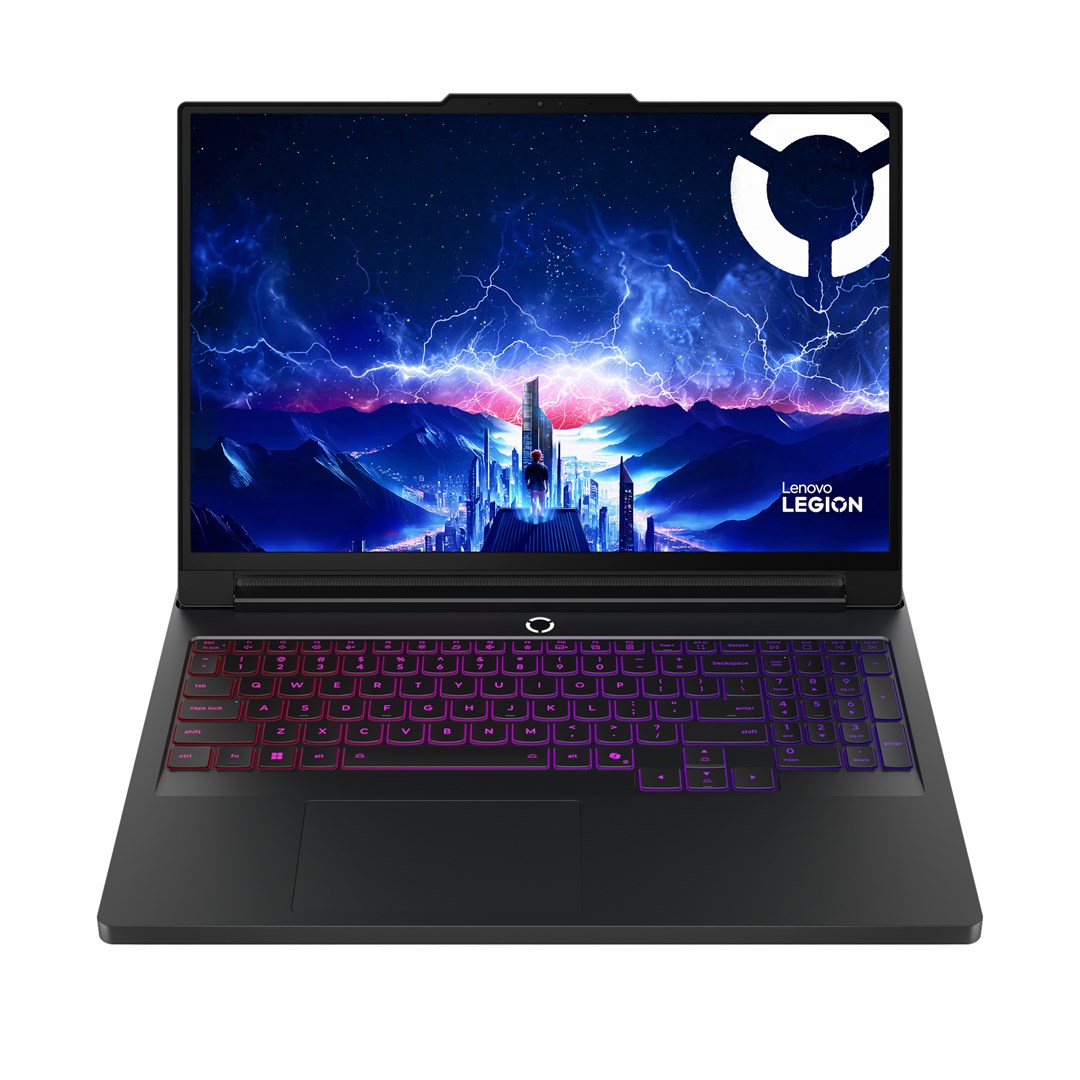

Lenovo Legion Pro 7 16IAX10H Intel Core Ultra 9 275HX Laptop 40.6 cm (16) WQXGA 64 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5080 Wi-Fi 7 (802.11be) NoOS Black

Processor model: Intel® Core™ Ultra 9 275HX

Processor
Processor boost frequency: 5.4 GHz
Processor threads: 24
Processor cores: 24
Processor family: Intel Core Ultra 9
Efficient-core Max Turbo Frequency: 4.6 GHz
Performance-core Max Turbo Frequency: 5.4 GHz
Performance cores: 8
Processor generation: Intel Core Ultra (Series 2)
Efficient cores: 16
Processor manufacturer: Intel
Processor cache: 36 MB
Processor base power: 55 W

Graphics
Discrete graphics card model: NVIDIA GeForce RTX 5080
On-board graphics card model: Intel® Graphics
Discrete graphics card memory: 16 GB
NVIDIA G-SYNC: Yes
Discrete graphics card: Yes
On-board graphics card family: Intel® Graphics
Discrete GPU manufacturer: NVIDIA
On-board graphics card: Yes
Discrete graphics memory type: GDDR7
On-board GPU manufacturer: Intel

Memory
Internal memory: 64 GB
Memory slots: 2x SO-DIMM
Memory channels: Dual-channel
Memory clock speed: 6400 MHz
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 2 x 32 GB
Memory form factor: SO-DIMM

Design
Product colour: Black
Product type: Laptop
Housing material: Aluminium
Colour name: Eclipse Black

Power
AC adapter input voltage: 100 - 240 V
AC adapter power: 400 W
USB Power Delivery (USB PD): Yes
AC adapter frequency: 50/60 Hz
USB Type-C charging port: Yes

Security
Trusted Platform Module (TPM): Yes
Trusted Platform Module (TPM) version: 2.0
Fingerprint reader: No
Password protection: Yes

Operational conditions
Operating temperature (T-T): 5 - 35 °C
Storage relative humidity (H-H): 5 - 95%
Storage temperature (T-T): 5 - 43 °C
Operating relative humidity (H-H): 8 - 95%
Maximum shipping altitude: 3048 m

Weight & dimensions
Weight: 2.57 kg
Width: 364.4 mm
Height (rear): 2.66 cm
Depth: 275.9 mm
Height (front): 2.19 cm

Network
Antenna type: 2x2
Bluetooth: Yes
Ethernet LAN data rates: 2500 Mbit/s
Wi-Fi standards: Wi-Fi 7 (802.11be)
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Ethernet LAN: Yes
WWAN: Not installed
Bluetooth version: 5.4
Mobile network connection: No

Packaging content
AC adapter included: Yes
Package contents: 4 x interchangeable keycaps

Display
Display diagonal: 40.6 cm (16")
LED backlight: Yes
HD type: WQXGA
Native aspect ratio: 16:10
Display resolution: 2560 x 1600 pixels
Display surface: Gloss
Contrast ratio (typical): 1000000:1
RGB colour space: DCI-P3
Display brightness: 500 cd/m²
Touchscreen: No
Panel type: OLED
Colour gamut: 100%
Maximum refresh rate: 240 Hz
High Dynamic Range (HDR) technology: Dolby Vision
High Dynamic Range (HDR) supported: Yes

Software
Operating system installed: N

Audio
Audio chip: Realtek ALC3306
Audio system: Nahimic Audio
Built-in microphone: Yes
Number of built-in speakers: 4
Number of microphones: 2
Certification: ErP Lot 3 TÜV Rheinland® High Gaming Performance TÜV Rheinland® Low Blue Light (Hardware Solution)

Certificates
Compliance certificates: RoHS

Storage
Optical drive type: No
M.2 SSD size: 2280 (22 x 80 mm)
Card reader integrated: No
Storage media: SSD
SSD form factor: M.2
Total storage capacity: 1 TB
NVMe: Yes
Total SSDs capacity: 1 TB
SSD interface: PCI Express 4.0
Number of SSDs installed: 1

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Combo headphone/mic port: Yes
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
HDMI version: 2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB Sleep-and-Charge: Yes
USB Sleep-and-Charge ports: 1

Camera
Front camera: Yes
Front camera resolution (numeric): 5 MP

Battery
Battery capacity: 99.9 Wh
Battery technology: Lithium Polymer (LiPo)
Continuous video playback time: 6.25 h
Fast charging: Yes

Keyboard
Keyboard backlit zone: Per-key RGB
Pointing device: Touchpad
Copilot key: Yes
Numeric keypad: Yes
Keyboard backlit colour: RGB
Keyboard backlit: Yes

Safety warning
Hazard pictogram(s): GHS09: Environmental hazard, GHS08: Health hazard, GHS07: Harmful
Warnings: The device may become hot during operation; use caution to avoid burns., Do not dispose of in normal household waste; appropriate disposal must be carried out in accordance with environmental regulations., Keep out of reach of children to avoid risk of electric shock.

Neural processor unit (NPU)
AI software frameworks supported by NPU: DirectML, WebNN, OpenVINO, Windows ML, ONNX RT
NPU performance up to: 13 TOPs
Windows Studio effects support: Yes
Neural processor unit (NPU): Intel AI Boost
Total processor performance up to: 36 TOPs
GPU performance up to: 8 TOPs
Sparsity support: Yes
