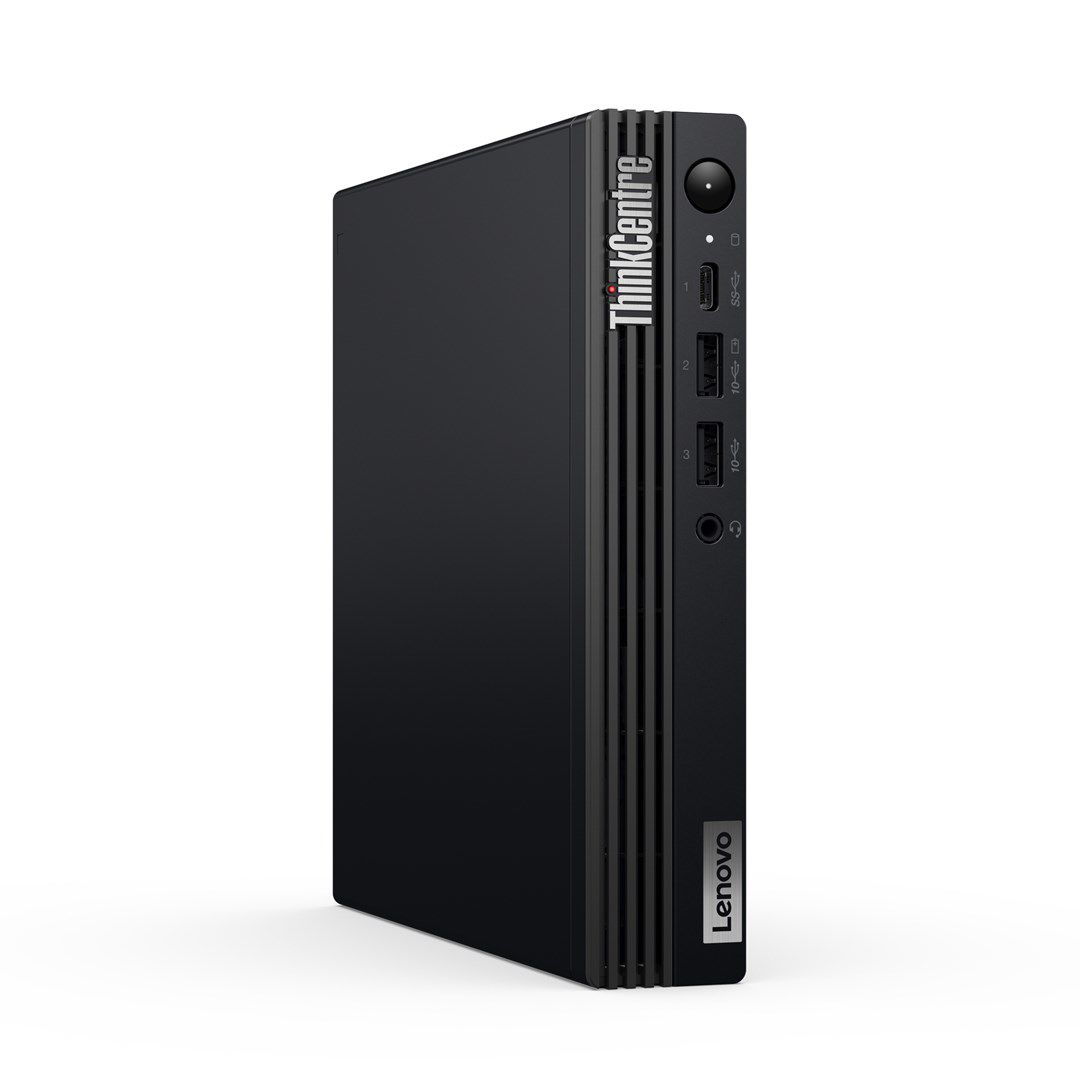

Lenovo ThinkCentre M70q Gen 5 Intel® Core™ i7 i7-14700T 16 GB DDR5-SDRAM 1 TB SSD Windows 11 Pro Mini PC Black

Processor
Processor family: Intel® Core™ i7
Processor cache: 33 MB
Processor manufacturer: Intel
Processor cores: 20
Processor threads: 28
Number of processors installed: 1
Processor cache type: Smart Cache
Processor model: i7-14700T
Performance-core base frequency: 1.3 GHz
Performance cores: 8
Processor base power: 35 W
Efficient cores: 12
Processor generation: Intel® Core™ i7 (14th gen)
Efficient-core Max Turbo Frequency: 3.7 GHz
Performance-core Max Turbo Frequency: 5 GHz
Maximum turbo power: 106 W
Efficient-core base frequency: 0.9 GHz
Processor boost frequency: 5.2 GHz

Graphics
On-board graphics card model: Intel UHD Graphics 770
On-board graphics card: Yes
On-board graphics card family: Intel® UHD Graphics
Discrete graphics card: No
On-board GPU manufacturer: Intel
Discrete graphics card model: Not available

Memory
Memory channels: Dual-channel
Internal memory: 16 GB
ECC: No
Memory slots: 2x DIMM
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 1 x 16 GB
Memory clock speed: 5600 MHz
Non-ECC: Yes
Maximum internal memory: 64 GB

Design
Cable lock slot type: Kensington
VESA mounting: Yes
Volume: 1 L
Chassis type: Mini PC
Colour name: Black
Cable lock slot: Yes
Product colour: Black

Power
Power supply input voltage: 100 - 240 V
Power supply input frequency: 50/60 Hz
Power supply: 135 W

Operational conditions
Storage temperature (T-T): -40 - 60 °C
Operating altitude: 0 - 3048 m
Storage relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 5 - 35 °C
Operating relative humidity (H-H): 20 - 80%
Non-operating altitude: 0 - 12192 m

Weight & dimensions
Package weight: 3.2 kg
Height: 36.5 mm
Package width: 490 mm
Package depth: 128 mm
Width: 179 mm
Package height: 250 mm
Depth: 182.9 mm
Weight: 1.25 kg

Network
Ethernet LAN: Yes
Wi-Fi: Yes
Bluetooth version: 5.3
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 4 (802.11n), 802.11g, Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 6 (802.11ax), 802.11b
Cabling technology: 10/100/1000Base-T(X)
WLAN controller model: Intel Wi-Fi 6E AX211
WLAN controller manufacturer: Intel
Antenna type: 2x2
Ethernet LAN data rates: 1000, 100
Bluetooth: Yes

Performance
Number of speakers: 1
Product type: Mini PC
Password protection type: Power on, BIOS, HDD, Supervisor
Built-in speaker(s): Yes
Trusted Platform Module (TPM) version: 2.0
Password protection: Yes
Audio system: High Definition Audio
Trusted Platform Module (TPM): Yes
Motherboard chipset: Intel Q670
Audio chip: Realtek ALC233VB

Packaging content
Keyboard included: Yes
Mouse included: Yes
Keyboard connectivity: Wired
Mouse connectivity: Wired

Display
Display included: No

Software
Operating system architecture: 64-bit
Operating system installed: Windows 11 Pro
Operating system language: Polish, English
Certification: ENERGY STAR,TCO,EPEAT Silver,RoHS

Certificates
Compliance certificates: RoHS

Storage
Optical drive type: No
SSD form factor: M.2
Number of storage drives installed: 1
Total SSDs capacity: 1 TB
Total storage capacity: 1 TB
SSD interface: PCI Express 4.0
SSD capacity: 1 TB
Storage media: SSD
NVMe: Yes
M.2 SSD size: 2280 (22 x 80 mm)
Card reader integrated: No
Number of SSDs installed: 1

Ports & interfaces
USB 2.0 ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Combo headphone/mic port: Yes
HDMI version: 2.1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
M.2 card slot (storage): 2
M.2 card slot (wireless): 1
Number of rear USB ports: 4
Number of front USB ports: 3
Number of front audio ports: 1
DisplayPorts quantity: 2
DisplayPort version: 1.4a

Sustainability
Sustainability certificates: ENERGY STAR, GREENGUARD, TCO, ErP, EPEAT Silver
