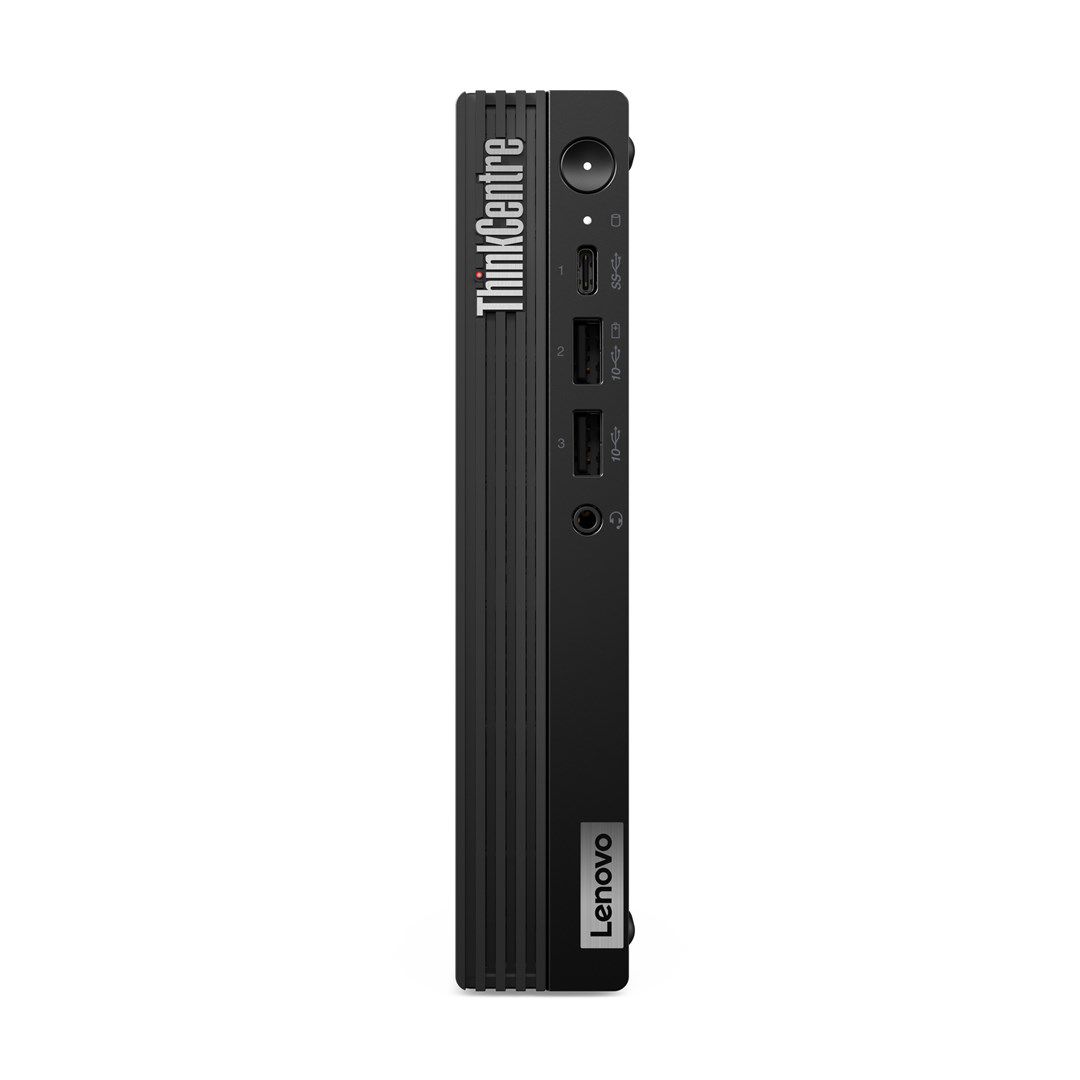

Lenovo ThinkCentre M70q Gen 5 Intel® Core™ i7 i7-14700T 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black

Processor
Processor manufacturer: Intel
Processor cores: 20
Number of processors installed: 1
Processor model: i7-14700T
Processor generation: Intel® Core™ i7 (14th gen)
Processor cache: 33 MB
Processor cache type: Smart Cache
Processor base power: 35 W
Processor threads: 28
Maximum turbo power: 106 W
Performance-core base frequency: 1.3 GHz
Performance-core Max Turbo Frequency: 5 GHz
Efficient cores: 12
Processor family: Intel® Core™ i7
Efficient-core base frequency: 0.9 GHz
Efficient-core Max Turbo Frequency: 3.7 GHz
Processor boost frequency: 5.2 GHz
Performance cores: 8

Graphics
Discrete graphics card: No
On-board graphics card family: Intel® UHD Graphics
Discrete graphics card model: Not available
On-board graphics card: Yes
On-board graphics card model: Intel UHD Graphics 770
On-board GPU manufacturer: Intel

Memory
Memory channels: Dual-channel
Internal memory type: DDR5-SDRAM
Memory slots: 2x SO-DIMM
Memory layout (slots x size): 1 x 16 GB
Memory clock speed: 5600 MHz
Internal memory: 16 GB
Maximum internal memory: 64 GB

Design
Chassis type: Mini PC
Volume: 1 L
Cable lock slot type: Kensington
Placement supported: Vertical
Product colour: Black
VESA mounting: Yes
Cable lock slot: Yes
Colour name: Raven Black

Power
Power supply: 135 W
Power supply input voltage: 100 - 240 V
Power supply input frequency: 50/60 Hz

Operational conditions
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -40 - 60 °C
Storage relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 5 - 35 °C
Operating altitude: 0 - 3048 m
Non-operating altitude: 0 - 12192 m

Weight & dimensions
Height: 36.5 mm
Width: 179 mm
Weight: 1.25 kg
Depth: 182.9 mm

Network
Cabling technology: 10/100/1000Base-T(X)
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
WLAN controller model: Intel Wi-Fi 6E AX211
Ethernet LAN: Yes
Ethernet LAN data rates: 100, 1000
Wi-Fi: Yes
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Antenna type: 2x2
WLAN controller manufacturer: Intel
Bluetooth version: 5.3
Bluetooth: Yes

Performance
Built-in speaker(s): Yes
Trusted Platform Module (TPM) version: 2.0
Password protection type: HDD, BIOS, Power on, Supervisor
Password protection: Yes
Trusted Platform Module (TPM): Yes
Product type: Mini PC
Motherboard chipset: Intel Q670

Packaging data
Package height: 128 mm
Package width: 250 mm
Package depth: 490 mm
Package weight: 3.2 kg

Packaging content
Keyboard included: Yes
Mouse included: Yes
Mouse connectivity: Wired

Display
Display included: No

Software
Operating system installed: Windows 11 Pro
Operating system language: Polish, English

Audio
Number of speakers: 1
Audio chip: Realtek ALC233VB
Audio system: High Definition Audio

Storage
SSD interface: PCI Express 4.0
Number of storage drives installed: 1
Card reader integrated: No
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
NVMe: Yes
Storage media: SSD
SSD capacity: 512 GB
SSD form factor: M.2
Optical drive type: No
Total storage capacity: 512 GB

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
HDMI version: 2.1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 2.0 ports quantity: 1
Combo headphone/mic port: Yes
DisplayPort version: 1.4a
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1

Keyboard
Keyboard connectivity: Wired
