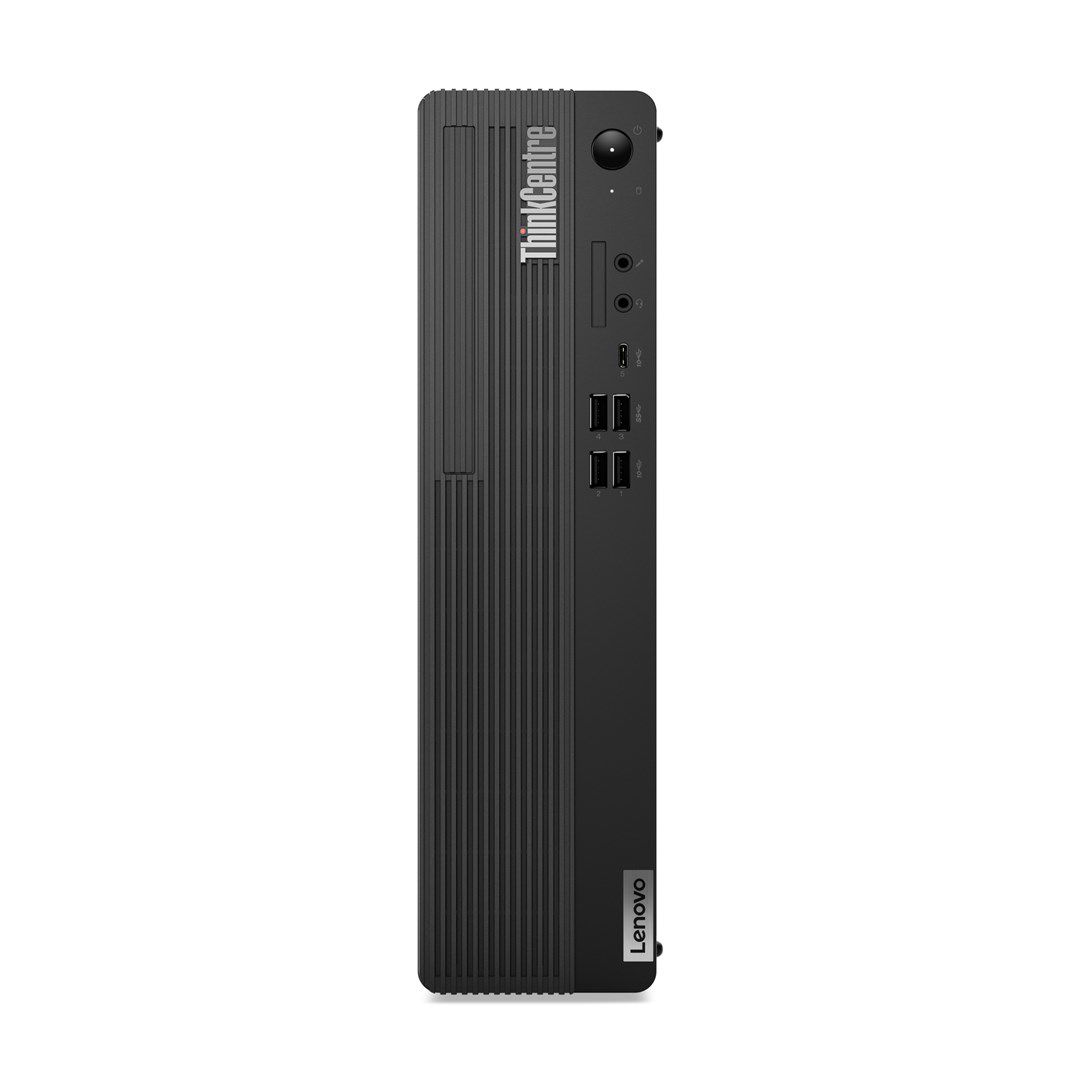

Lenovo ThinkCentre M90s Gen 5 Intel® Core™ i5 i5-14600 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro SFF PC Black

Processor
Processor model: i5-14600
Processor threads: 20
Processor cores: 14
Processor family: Intel® Core™ i5
Processor cache: 24 MB
Processor generation: Intel® Core™ i5 (14th gen)
Performance-core Max Turbo Frequency: 5.2 GHz
Performance cores: 6
Maximum turbo power: 154 W
Efficient-core base frequency: 2 GHz
Processor base power: 65 W
Efficient-core Max Turbo Frequency: 3.9 GHz
Performance-core base frequency: 2.7 GHz
Efficient cores: 8
Processor boost frequency: 5.2 GHz
Processor manufacturer: Intel
Number of processors installed: 1
Processor cache type: Smart Cache

Graphics
On-board graphics card model: Intel UHD Graphics 770
On-board GPU manufacturer: Intel
Discrete graphics card model: Not available
Discrete graphics card: No
On-board graphics card: Yes
On-board graphics card family: Intel® UHD Graphics

Memory
Memory clock speed: 4400 MHz
Internal memory: 16 GB
Internal memory type: DDR5-SDRAM
Maximum internal memory: 128 GB
Memory channels: Dual-channel
Memory layout (slots x size): 1 x 16 GB
Memory slots: 4x DIMM

Design
Volume: 8.2 L
Cable lock slot type: Kensington
Cable lock slot: Yes
Product colour: Black
Placement supported: Vertical
Chassis type: SFF

Power
Power supply input frequency: 50/60 Hz
Power supply: 310 W
Power supply input voltage: 100 - 240 V

Operational conditions
Storage temperature (T-T): -40 - 60 °C
Storage relative humidity (H-H): 10 - 90%
Operating relative humidity (H-H): 20 - 80%
Operating temperature (T-T): 5 - 35 °C
Operating altitude: 0 - 3048 m
Non-operating altitude: 0 - 12192 m

Weight & dimensions
Weight: 5.3 kg
Height: 339.5 mm
Width: 92.5 mm
Depth: 297.7 mm

Network
WLAN controller model: Intel Wi-Fi 6E AX211
WLAN controller manufacturer: Intel
Bluetooth: Yes
Antenna type: 2x2
Ethernet LAN data rates: 1000, 100
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Bluetooth version: 5.3
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Wi-Fi: Yes

Performance
Password protection type: Power on, HDD, BIOS
Trusted Platform Module (TPM) version: 2.0
Motherboard chipset: Intel Q670
Trusted Platform Module (TPM): Yes
Product type: PC
Built-in speaker(s): Yes
Password protection: Yes

Packaging data
Package width: 195 mm
Package weight: 7.6 kg
Package depth: 395 mm
Package height: 530 mm

Packaging content
Mouse connectivity: Wired
Keyboard included: Yes
Mouse included: Yes

Display
Display included: No

Software
Operating system language: Polish, English
Operating system installed: Windows 11 Pro

Audio
Audio system: High Definition Audio
Audio chip: Realtek ALC897Q-CG
Number of speakers: 1
Certification: MIL-STD-810H ENERGY STAR 8.0 EPEAT Gold Registered ErP Lot 3 GREENGUARD RoHS compliant TCO Certified 9.0

Certificates
Compliance certificates: RoHS

Storage
Optical drive type: DVD±RW
Total storage capacity: 512 GB
Compatible memory cards: SD, SDXC, SDHC
Card reader integrated: Yes
SSD capacity: 512 GB
Number of storage drives installed: 1
SSD interface: PCI Express 4.0
NVMe: Yes
Total SSDs capacity: 512 GB
SSD form factor: M.2
Number of SSDs installed: 1
Storage media: SSD

Ports & interfaces
Combo headphone/mic port: Yes
Ethernet LAN (RJ-45) ports: 1
DisplayPort version: 1.4a
DisplayPorts quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6
HDMI version: 2.1
HDMI ports quantity: 1
Line-out: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Microphone in: Yes

Keyboard
Keyboard connectivity: Wired

Sustainability
Sustainability certificates: GREENGUARD, TCO
