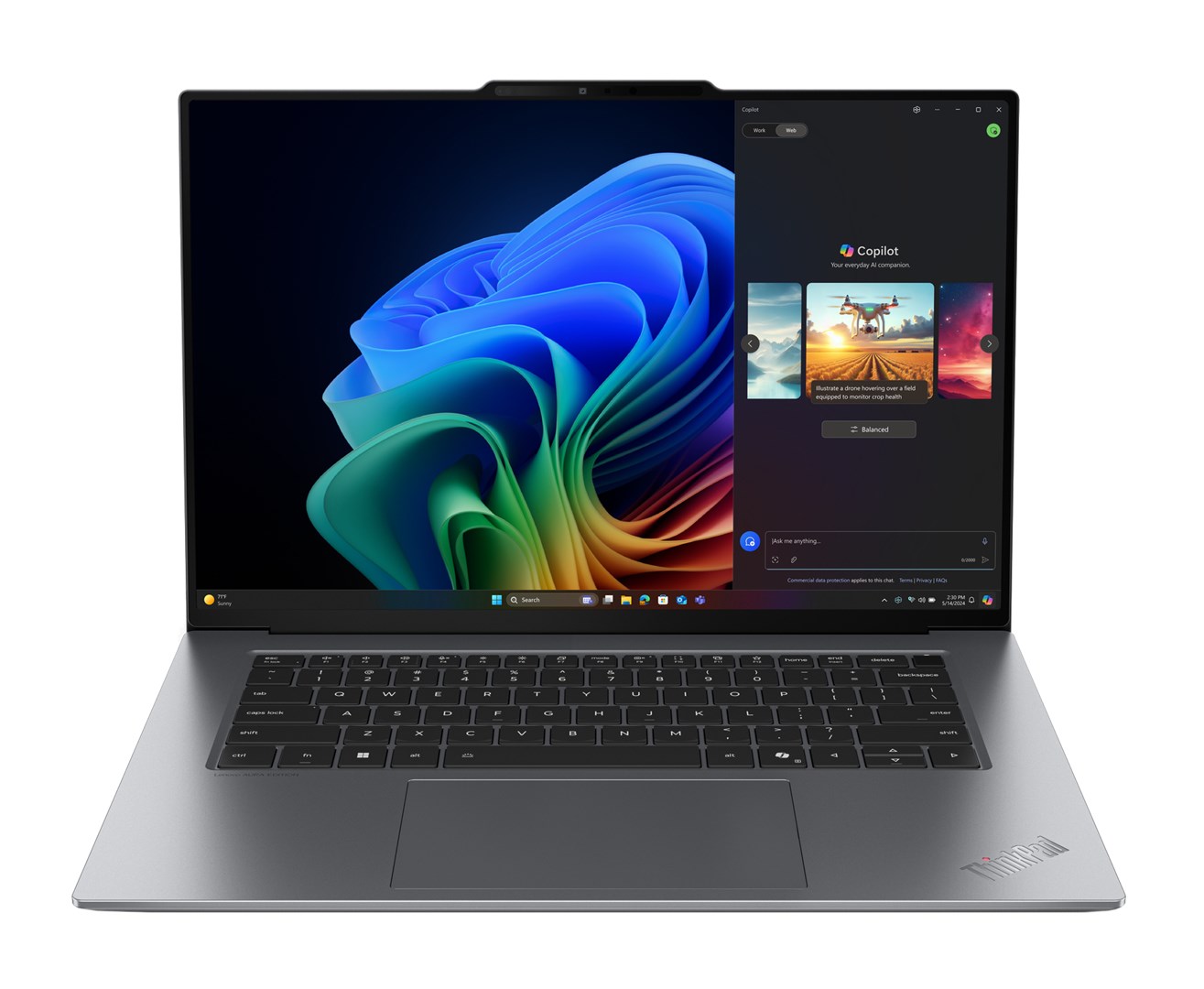

Lenovo ThinkPad X9-15 Gen 1 Copilot+ PC Intel Core Ultra 5 228V Laptop 38.9 cm (15.3) 2.8K 32 GB LPDDR5x-SDRAM 512 GB SSD Wi-Fi 7 (802.11be) Windows 11 Pro English Grey

Processor
Processor boost frequency: 4.5 GHz
Processor manufacturer: Intel
Performance-core base frequency: 2.1 GHz
Low Power Efficient-core Base Frequency: 2100 MHz
Performance-core Max Turbo Frequency: 4.5 GHz
Performance cores: 4
Processor generation: Intel Core Ultra (Series 2)
Maximum turbo power: 37 W
Processor base power: 17 W
Low Power Efficient-cores: 4
Low Power Efficient-core Max Turbo Frequency: 3.5 GHz
Processor cache: 8 MB
Processor family: Intel Core Ultra 5
Processor threads: 8
Processor model: 228V
Processor cores: 8
Processor cache type: Smart Cache

Graphics
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card: Yes
Discrete graphics card: No
On-board graphics card family: Intel Arc Graphics
On-board graphics card model: Intel Arc Graphics 130V

Memory
Maximum internal memory: 32 GB
Memory channels: Dual-channel
Memory form factor: On-board
Memory clock speed: 8533 MHz
Internal memory type: LPDDR5x-SDRAM
Internal memory: 32 GB

Design
Product colour: Grey
Housing material: Aluminium
Intel® vPro™ Platform Eligibility: Yes
Product type: Laptop

Power
USB Type-C charging port: Yes
AC adapter input voltage: 100 - 240 V
AC adapter frequency: 50 - 60 Hz
USB Power Delivery (USB PD): Yes
AC adapter power: 65 W

Security
Trusted Platform Module (TPM): Yes
Trusted Platform Module (TPM) version: 2.0
Windows Hello: Yes
Fingerprint reader: Yes
Smart card reader: No
Password protection: Yes

Operational conditions
Maximum shipping altitude: 3048 m
Operating relative humidity (H-H): 8 - 95%
Storage relative humidity (H-H): 5 - 95%
Storage temperature (T-T): 5 - 43 °C
Operating temperature (T-T): 5 - 35 °C

Weight & dimensions
Height: 12.9 mm
Width: 339.6 mm
Depth: 228.5 mm
Weight: 1.4 kg

Network
Antenna type: 2x2
Bluetooth: Yes
WLAN controller manufacturer: Intel
Near Field Communication (NFC): No
Mobile network connection: No
WLAN controller model: Intel Wi-Fi 7 BE201
Bluetooth version: 5.4
Ethernet LAN: No
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
WWAN: Not installed
Wi-Fi standards: Wi-Fi 7 (802.11be)

Performance
Motherboard chipset: Intel SoC

Packaging content
AC adapter included: Yes

Display
Display resolution: 2880 x 1800 pixels
LED backlight: Yes
Native aspect ratio: 16:10
Display diagonal: 38.9 cm (15.3")
High Dynamic Range (HDR) technology: DisplayHDR True Black 600, Dolby Vision
Colour gamut: 100%
Maximum refresh rate: 120 Hz
Touchscreen: No
RGB colour space: DCI-P3
Display brightness: 500 cd/m²
High Dynamic Range (HDR) supported: Yes
Anti-reflective coating: Yes
Contrast ratio (typical): 100000:1
Panel type: OLED
HD type: 2.8K
Bundled software: Intel Connectivity Performance Suite + Lenovo AI Now

Software
Operating system architecture: 64-bit
Operating system language: English, Polish
Microsoft Copilot: Yes
Operating system installed: Windows 11 Pro

Audio
Audio chip: Cirrus Logic CS42L43
Audio system: Dolby Atmos
Number of built-in speakers: 4
Number of microphones: 2
Speaker power: 2 W
Built-in microphone: Yes
Certification: ENERGY STAR 8.0 EPEAT Gold Registered ErP Lot 6/26 RoHS compliant TCO Certified 10.0 Intel Evo Platform Eyesafe Certified 2.0 TÜV Rheinland Eye Comfort Certification (5-star) MIL-STD-810H military test passed

Certificates
Compliance certificates: RoHS

Storage
SSD memory type: TLC
M.2 SSD size: 2242 (22 x 42 mm)
SSD interface: PCI Express 4.0
SSD form factor: M.2
Card reader integrated: No
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
Storage media: SSD
NVMe: Yes
Total storage capacity: 512 GB
Optical drive type: No

Ports & interfaces
USB Sleep-and-Charge ports: 1
USB Sleep-and-Charge: Yes
USB Type-C DisplayPort Alternate Mode: Yes
HDMI ports quantity: 1
Thunderbolt 4 ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
HDMI version: 2.1
Intel® Thunderbolt 4: Yes
Combo headphone/mic port: Yes

Camera
Front camera HD type: Ultra HD
Infrared (IR) camera: Yes
Front camera resolution (numeric): 8 MP
Front camera: Yes

Battery
Battery capacity: 80 Wh
Battery technology: Lithium Polymer (LiPo)

Keyboard
Copilot key: Yes
Spill-resistant keyboard: Yes
Pointing device: Touchpad
Numeric keypad: No
Keyboard backlit: Yes

Neural processor unit (NPU)
GPU performance up to: 53 TOPs
Copilot+ PC: Yes
AI software frameworks supported by NPU: ONNX RT, Windows ML, WebNN, DirectML, OpenVINO
Neural processor unit (NPU): Intel AI Boost
NPU performance up to: 40 TOPs
Total processor performance up to: 97 TOPs
Windows Studio effects support: Yes
Sparsity support: Yes
