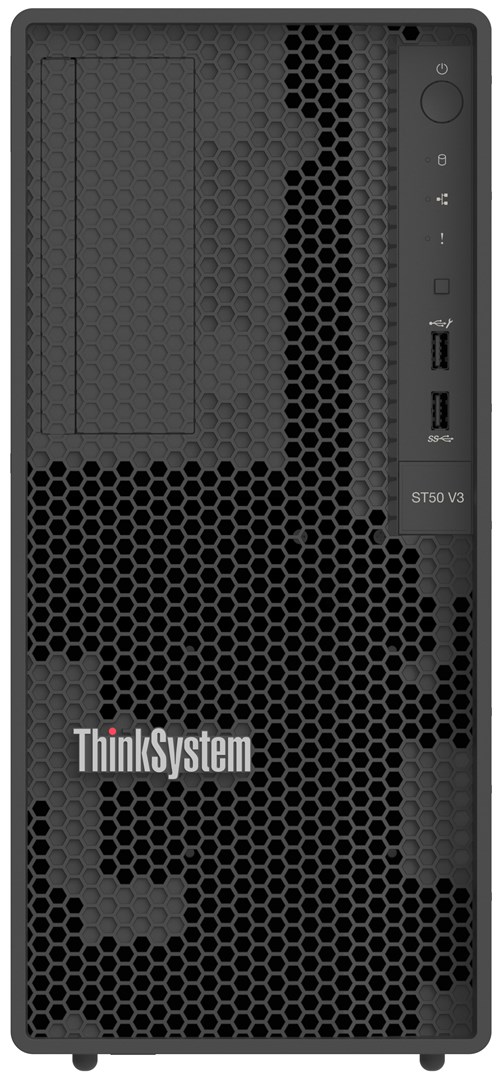

Lenovo ThinkSystem 7DF31001EA server 960 GB Tower Intel® Xeon® 6315P 2.8 GHz 16 GB DDR5-SDRAM 500 W

Technical details
Supported storage drives form factor (internal): 3.5"

Processor
Performance cores: 4
Number of processors installed: 1
Processor manufacturer: Intel
Processor family: Intel® Xeon®
Motherboard chipset: Intel C266
Processor cache: 12 MB
Processor cores: 4
Processor model: 6315P
Processor boost frequency: 5.2 GHz
Processor frequency: 2.8 GHz

Graphics
On-board graphics card: Yes
Maximum graphics card memory: 16 MB

Memory
ECC: Yes
Memory layout (slots x size): 1 x 16 GB
Memory slots: 4x DIMM
Memory clock speed: 4400 MHz
Maximum internal memory: 128 GB
Internal memory: 16 GB
Internal memory type: DDR5-SDRAM

Design
Chassis type: Tower
Product colour: Black

Power
Power supply input frequency: 50/60 Hz
Power supply: 500 W
Power supply input voltage: 100 - 240 V

Operational conditions
Operating altitude: 0 - 3050 m
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 8 - 90%

Weight & dimensions
Depth: 370 mm
Width: 170 mm
Height: 376 mm
Weight: 12 kg

Network
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
Cabling technology: 10/100/1000Base-T(X)
LAN controller: Broadcom BCM5720

Performance
Trusted Platform Module (TPM) version: 2.0
Trusted Platform Module (TPM): Yes

Certificates
80 PLUS certification: 80 PLUS Platinum

Storage
Number of SSDs installed: 2
Internal drive bays: 3
SSD interface: SATA
SSD capacity: 480 GB
Total storage capacity: 960 GB
Supported storage drive interfaces: Serial ATA
Optical drive type: No

Ports & interfaces
Serial ports quantity: 1
VGA (D-Sub) ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 5
