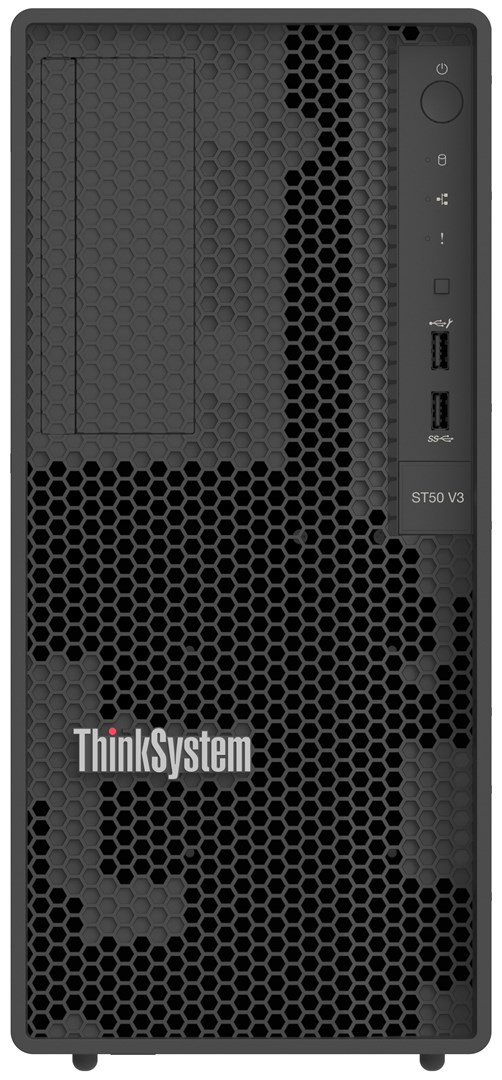

Lenovo ThinkSystem 7DF31002EA server 1.92 TB Tower Intel® Xeon® 6353P 2.7 GHz 32 GB DDR5-SDRAM 500 W

Technical details
Supported storage drives form factor (internal): 3.5"

Processor
Number of processors installed: 1
Processor cache: 24 MB
Motherboard chipset: Intel C266
Processor family: Intel® Xeon®
Processor boost frequency: 5.4 GHz
Processor model: 6353P
Processor frequency: 2.7 GHz
Processor manufacturer: Intel
Processor cores: 8
Performance cores: 8

Graphics
Maximum graphics card memory: 16 MB
On-board graphics card: Yes

Memory
Memory slots: 4x DIMM
Memory layout (slots x size): 1 x 32 GB
Maximum internal memory: 128 GB
Internal memory type: DDR5-SDRAM
ECC: Yes
Memory clock speed: 4400 MHz
Internal memory: 32 GB

Design
Product colour: Black
Chassis type: Tower

Power
Power supply input voltage: 100 - 240 V
Power supply input frequency: 50/60 Hz
Power supply: 500 W

Operational conditions
Storage temperature (T-T): -20 - 60 °C
Operating altitude: 0 - 3050 m
Storage relative humidity (H-H): 8 - 90%

Weight & dimensions
Width: 170 mm
Depth: 370 mm
Weight: 12 kg
Height: 376 mm

Network
Ethernet interface type: Gigabit Ethernet
Cabling technology: 10/100/1000Base-T(X)
LAN controller: Broadcom BCM5720
Ethernet LAN: Yes

Performance
Trusted Platform Module (TPM) version: 2.0
Trusted Platform Module (TPM): Yes

Certificates
80 PLUS certification: 80 PLUS Platinum

Storage
Internal drive bays: 3
Optical drive type: No
Number of SSDs installed: 2
Total storage capacity: 1.92 TB
SSD interface: SATA
SSD capacity: 960 GB
Supported storage drive interfaces: Serial ATA

Ports & interfaces
VGA (D-Sub) ports quantity: 1
Serial ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 5
Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports quantity: 2
