Level One FSW-0808 TX

(ocijenilo: 0 korisnik/a)

Šifra: 14-401513 | Brand: LEVEL ONE

26,90 €
  • Dostupno za narudžbu, isporuka unutar 3 do 14 radnih dana
  • Cijena dostave za ovaj artikl je 6,00 €
U košaricu

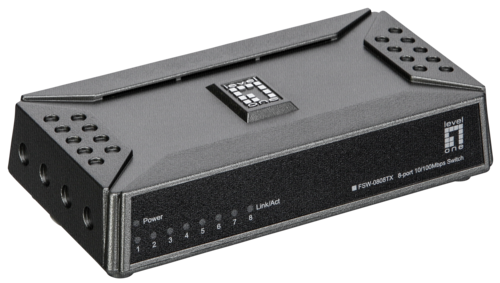

FSW-0808TX 8 Port 10/100Mbps Fast Ethernet Switch

Technical Data:

  • Standard Conformance
    - IEEE802.3 10Base-T Ethernet
    - IEEE802.3u 100Base-TX Fast Ethernet
    - IEEE802.3x Flow Control and Back-pressure
    ANSI/IEEE 802.3 Auto-negotiation
  • Physical Ports
    - 5/8 10/100/Mbps STP RJ45 auto-negotiation ports
    - Auto MDI/MDIX crossover for all ports
  • Forwarding and Filtering Rate
    - 14,880 pps per Ethernet port
    - 148,800 pps per Fast Ethernet port
  • Network Cables
    - 10Base-TX: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m )
    - 100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m)
  • LED Indicators
    - Per Port: Link/Activity (100M green, 10M yellow)
    - Per Unit: Power
  • Power Input
    - DC 7.5V/0.8~1A external power supply
  • Physical Characteristics
    - Storage Temperature: -40°C to 70°C
    - Operational Temperature: 0°C to 50°C
    - Storage Humidity: 5% to 90% RH
    - Operational Humidity: 10% to 50% RH
  • Dimensions
    - 127 mm x 70 mm x 28 mm (L x W x H)
    - Weight: 0.74kg
tip
Tip: sklopke

oprema
Broj 10/100 Mbit/s portova: 8
Jumbo Frame: ne
PoE (Power over Ethernet): ne

podržani protokoli mreže
IEEE 802.3 10-BASE-T, Ethernet: da
IEEE 802.3u 100-BASE-TX, Fast Ethernet: da
IEEE 802.3x Flow Control (Full-Duplex Flow Control): da

općenito
boja: crna / siva
Širina (mm): 125
Visina (mm): 30
dubina (mm): 69
