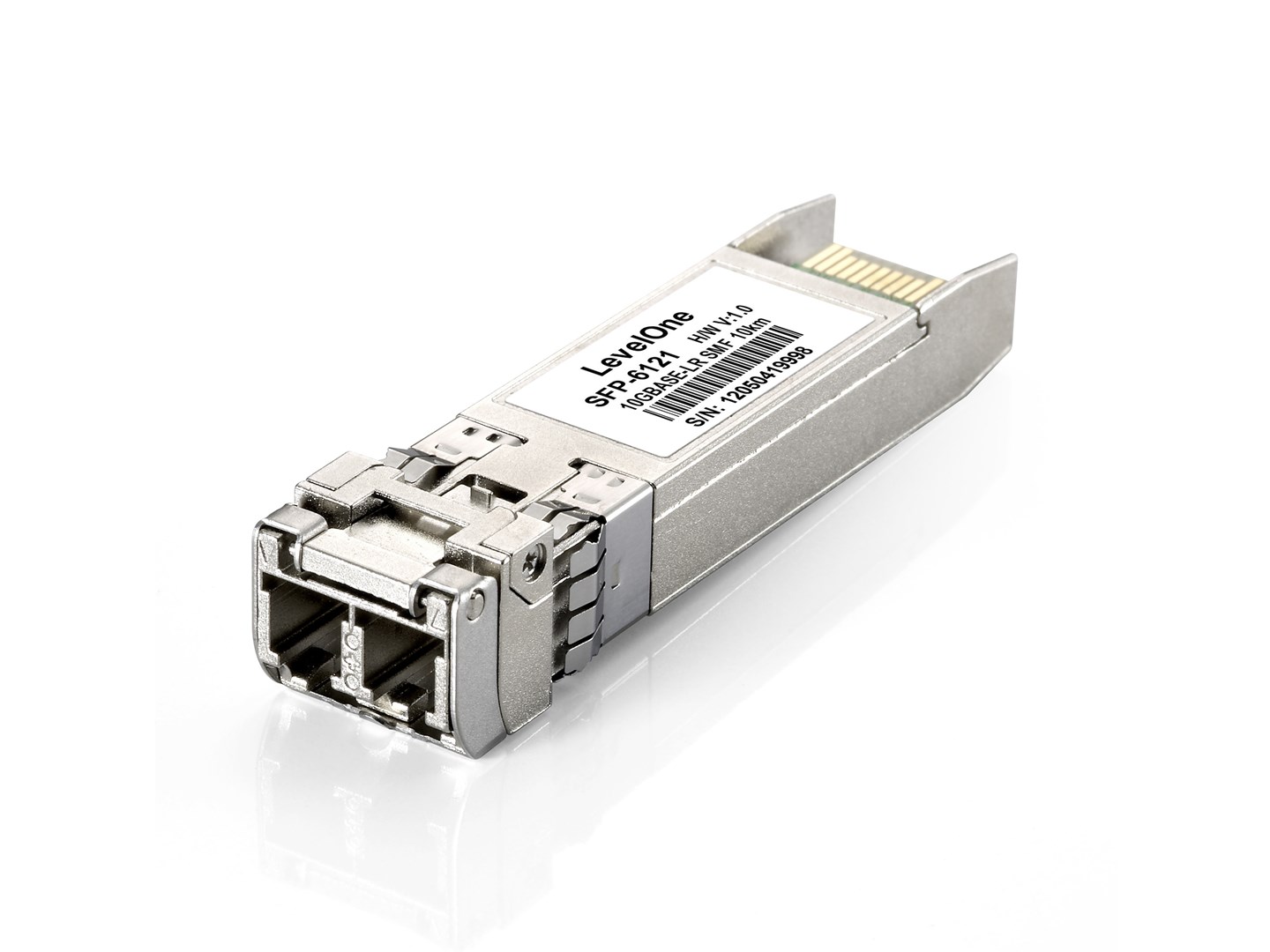

LevelOne 10Gbps Single-mode SFP+ Transceiver, 10km, 1310nm

Features
Hot-swap: Yes

Power
Input voltage: 3.3 V
Maximum current: 0.33 A
Maximum voltage: 3.6 V

Operational conditions
Storage temperature (T-T): -40 - 85 °C
Operating temperature (T-T): 0 - 70 °C

Weight & dimensions
Depth: 12 mm
Weight: 20 g
Width: 57 mm
Height: 13.7 mm

Performance
Maximum data transfer rate: 10000 Mbit/s
Single-mode fiber (SMF) supported: Yes
Duplex system: Full
Fiber cable diameters supported (core/cladding): 9/125 µm
Fiber optic connector: LC
SFP transceiver type: Fiber optic
Tx power (max): 0.5 dBmW
Maximum transfer distance: 10000 m
Wavelength: 1310 nm
Networking standards: IEEE 802.3ae
Interface type: SFP+
Fiber ports quantity: 1
Tx power (min): -8.2 dBmW

Packaging data
Package width: 106 mm
Package height: 65 mm
Package weight: 35 g
Package depth: 20 mm

Packaging content
Quantity per pack: 1 pc(s)
Certification: CE, FCC

Certificates
Compliance certificates: RoHS
Safety: EN 60825-1

Logistics data
Harmonized System (HS) code: 85369010
