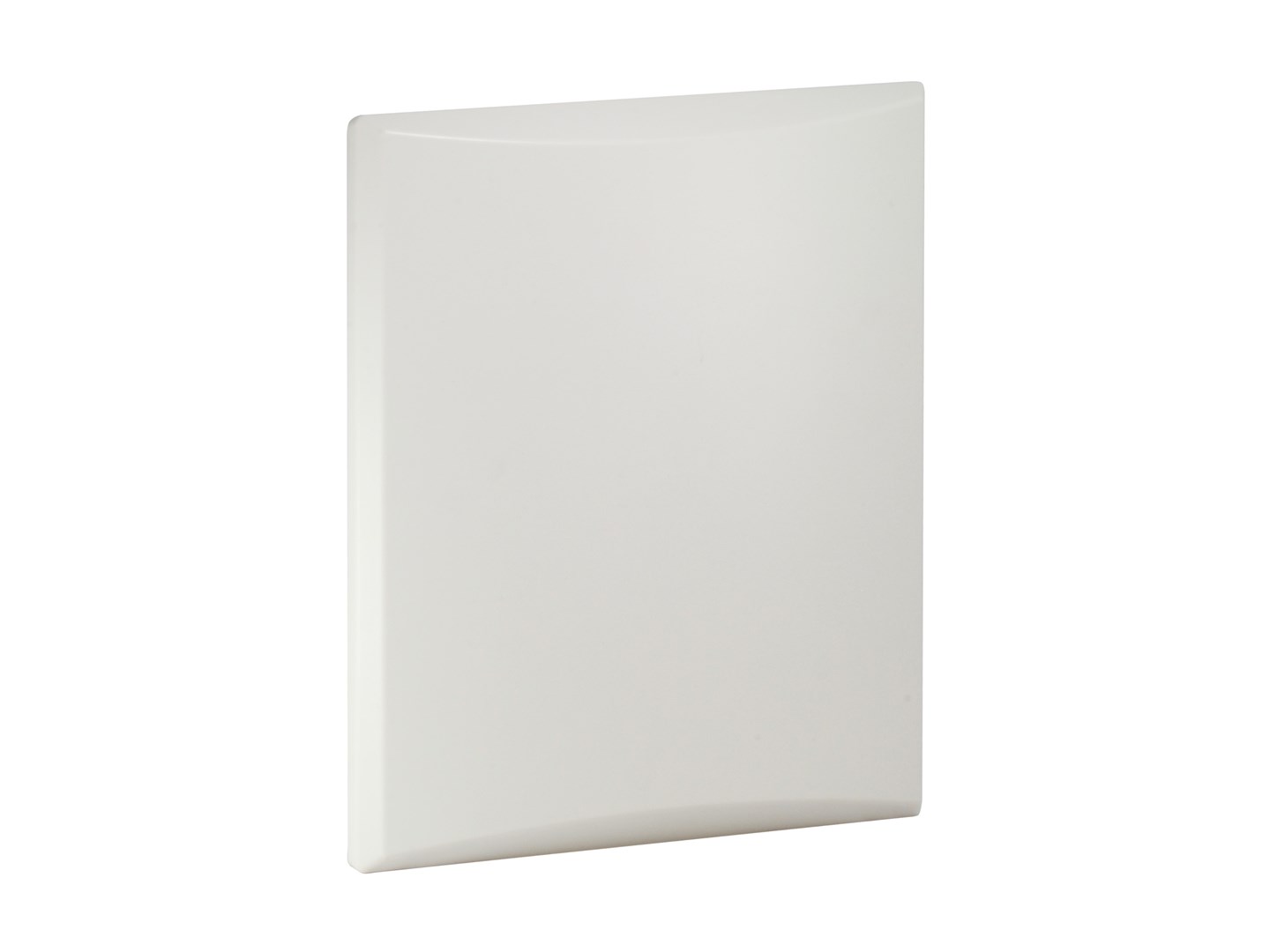

LevelOne 15dBi 2.4GHz Directional Dual-Polarization Panel Antenna, Indoor /Outdoor

Features
Maximum cable loss with connectors: -10 dB
Purpose: Indoor & outdoor
Survival wind speed: 180 km/h
Voltage Standing Wave Ratio (VSWR): 2.0
Polarization: Dual polarization
Protection features: Dust resistant, Snow resistant, Water resistant
Antenna connector type: N-type
Product colour: Grey
Antenna type: Directional antenna

Operational conditions
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C

Weight & dimensions
Height: 35 mm
Weight: 904 g
Depth: 330 mm
Width: 295 mm

Performance
Horizontal beam width: 30°
Vertical beam width: 15°
Impedance: 50 Ω
Antenna gain level (max): 15 dBi
Frequency band: 2.4 ~ 2.5 GHz
Networking standards: IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n, IEEE 802.11b

Packaging data
Package depth: 354 mm
Package weight: 1.81 kg
Package width: 333 mm
Package height: 84 mm
Package type: Box

Packaging content
Quick installation guide: Yes
Mounting kit: Yes

Logistics data
Master (outer) case length: 447 mm
Harmonized System (HS) code: 85177100
Master (outer) case width: 460 mm
Master (outer) case gross weight: 20 kg
Master (outer) case height: 370 mm
Products per master (outer) case: 10 pc(s)
Country of origin: Taiwan
