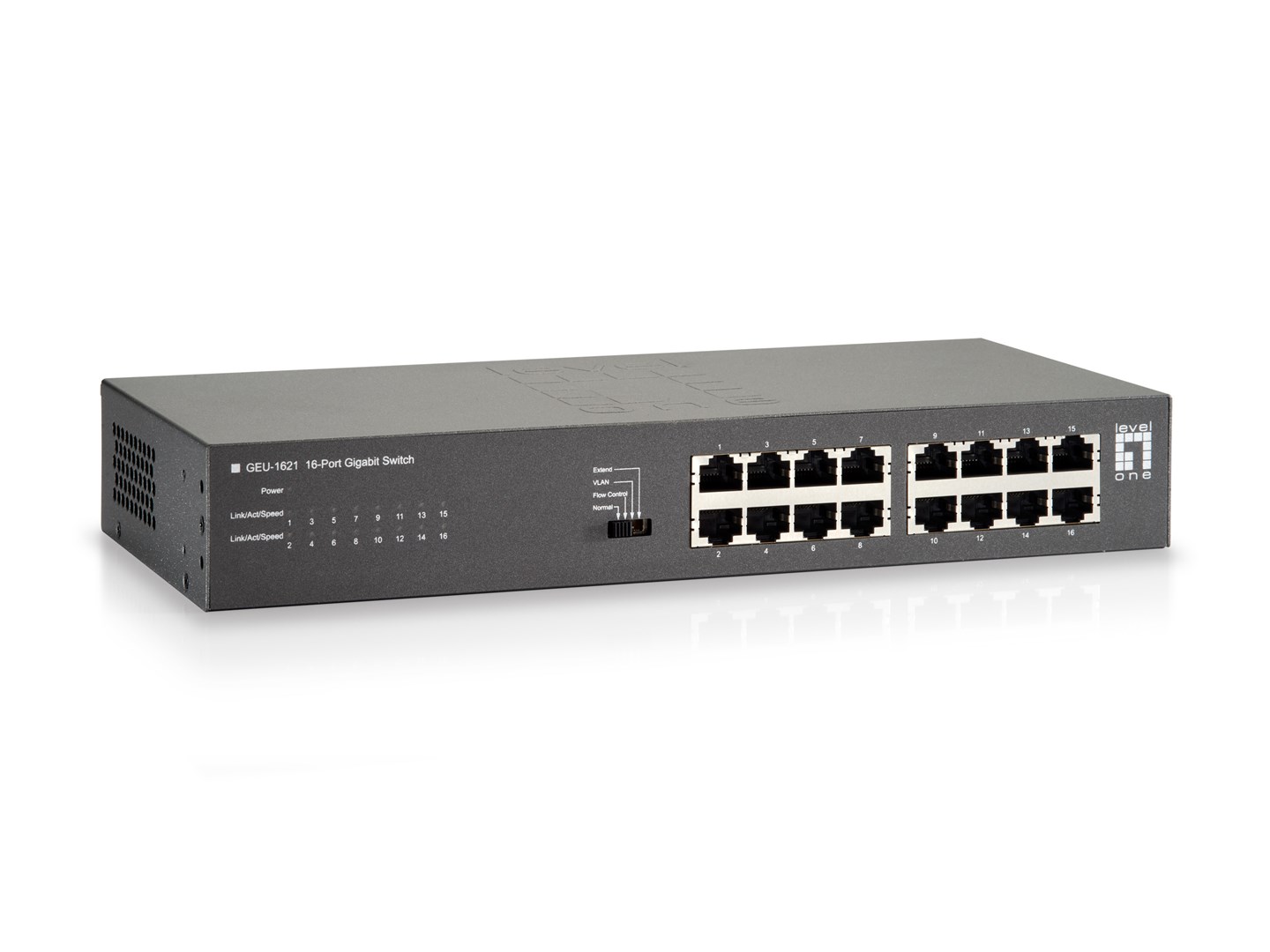

LevelOne 16-Port Gigabit Switch

Technical details
Pallet height (air): 155.5 cm
Pallet gross width: 120 cm
Pallet gross length: 80 cm

Design
Rack mounting: Yes
Product colour: Grey

Power
AC input frequency: 50 - 60 Hz
AC input voltage: 100 - 240 V
Power consumption (typical): 10.1 W

Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage relative humidity (H-H): 5 - 90%
Storage temperature (T-T): -40 - 70 °C

Weight & dimensions
Weight: 2.6 kg
Width: 280 mm
Depth: 180 mm
Height: 44 mm

Network
Networking standards: IEEE 802.3az, IEEE 802.3x, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3i
Full duplex: Yes
Auto-negotiation: Yes
Half duplex: Yes
Auto MDI/MDI-X: Yes
MAC address auto-aging supported: Yes
10G support: No
Flow control support: Yes
MAC address auto-learning supported: Yes

Performance
Flash memory: 4 MB
Processor model: Realtek RTL8382L
Built-in processor: Yes

Packaging data
Package width: 258 mm
Package depth: 340 mm
Package weight: 1.7 kg
Package type: Box
Package height: 66 mm

Packaging content
Manual: Yes
Rack mount kit: Yes

Ports & interfaces
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 16
Basic switching RJ-45 Ethernet ports quantity: 16

Logistics data
Country of origin: China
Harmonized System (HS) code: 85176990
Products per pallet: 22 pc(s)
Master (outer) case width: 353 mm
Master (outer) case length: 355 mm
Products per master (outer) case: 5 pc(s)
Master (outer) case gross weight: 10.4 kg
Master (outer) case height: 280 mm

Data transmission
MAC address table: 8000 entries
Forwarding rate: 1.488 Mpps
Switching capacity: 32 Gbit/s
Store-and-forward: Yes
Jumbo frames: 9000
Jumbo frames support: Yes

Power over Ethernet (PoE)
Power over Ethernet (PoE): No
