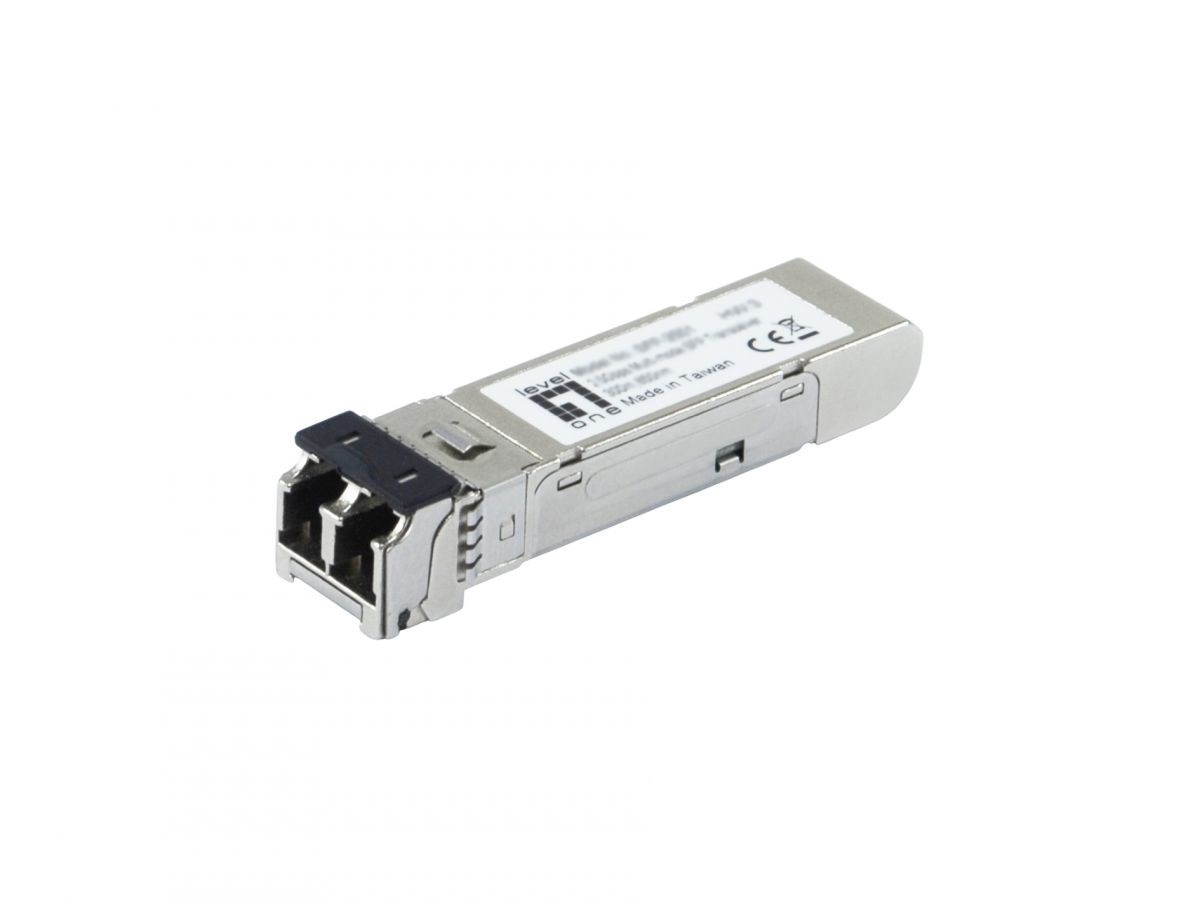

LevelOne 2.5Gbps Multi-mode Industrial SFP Transceiver, 300m, 850nm, -40°C to 85°C

Features
Hot-swap: Yes
Form factor: SFP
Plug and Play: Yes
Product colour: Silver

Power
Power consumption (typical): 1 W

Operational conditions
Storage relative humidity (H-H): 5 - 85%
Operating temperature (T-T): -40 - 85 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 85%

Weight & dimensions
Weight: 15.5 g
Depth: 13.4 mm
Height: 13 mm
Width: 55.9 mm

Performance
Digital Diagnostics Monitoring (DDM): Yes
Multi-mode fiber (MMF) supported: Yes
Maximum transfer distance: 300 m
SFP transceiver type: Fiber optic
Tx power (max): -3 dBmW
Fiber cable diameters supported (core/cladding): 50/125
Tx power (min): -9 dBmW
Copper ethernet cabling technology: 2.5GBASE
Maximum data transfer rate: 2500 Mbit/s
Wavelength: 850 nm
Interface type: SFP
Fiber optic connector: LC

Packaging data
Package width: 110 mm
Package height: 25 mm
Package weight: 41.66 g
Package depth: 67 mm

Packaging content
Quantity per pack: 1 pc(s)

Certificates
Compliance certificates: CB, RoHS, CE, UL, TÜV mark, Federal Communications Commission (FCC)

Logistics data
Customs product code (TARIC): 8517620000
Master (outer) case height: 250 mm
Master (outer) case length: 343 mm
Master (outer) case width: 365 mm
Pallet gross width: 120 cm
Pallet gross height: 164.4 cm
Country of origin: Taiwan
Products per master (outer) case: 100 pc(s)
Master (outer) cases per pallet: 34 pc(s)
Pallet gross length: 80 cm
Master (outer) case gross weight: 5.5 kg
