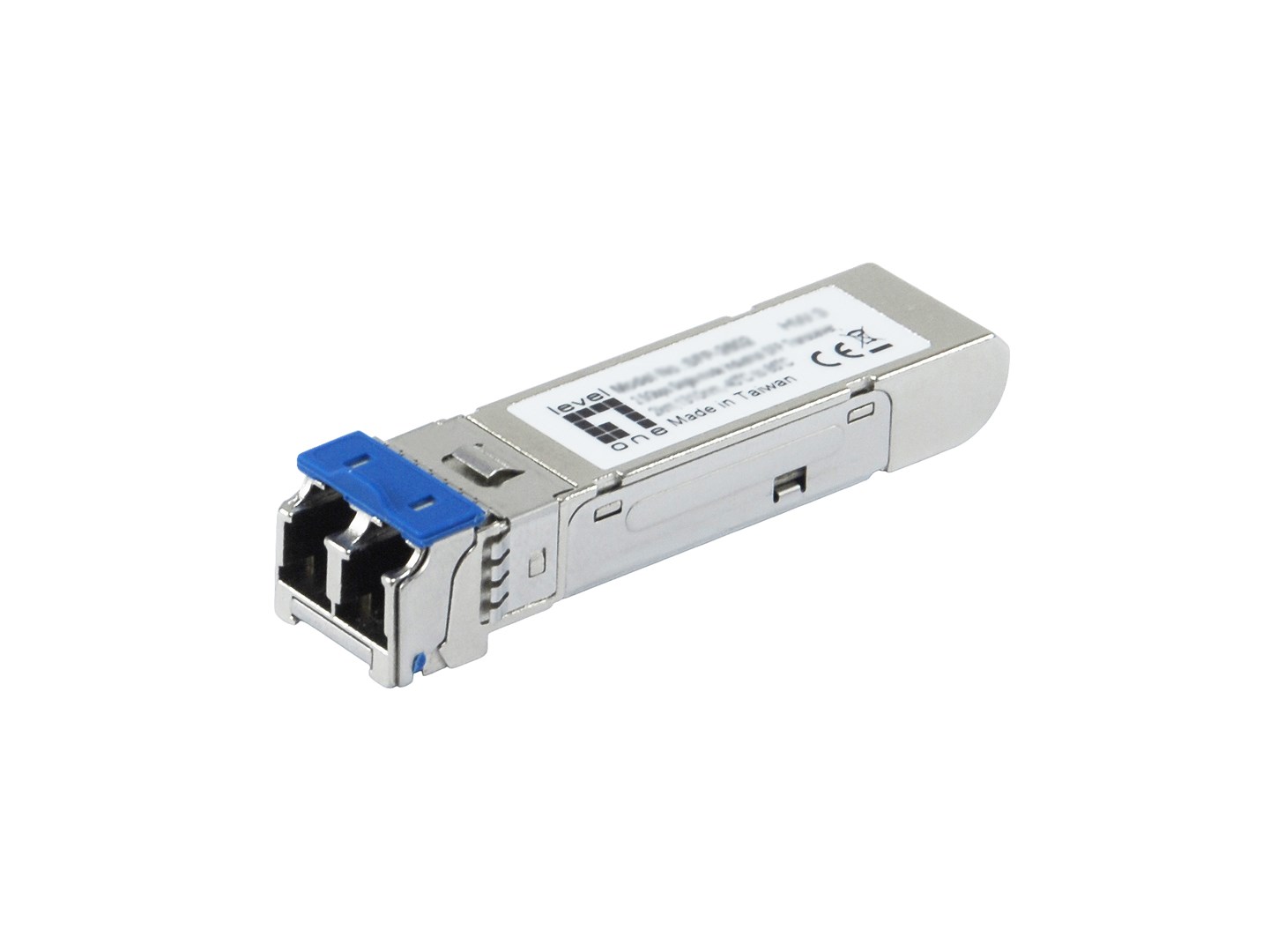

LevelOne 2.5Gbps Single-mode Industrial SFP Transceiver, 40km, 1310nm, -40°C to 85°C

Features
Form factor: SFP
Product colour: Silver
Hot-swap: Yes
Plug and Play: Yes

Power
Power consumption (typical): 1 W

Operational conditions
Storage relative humidity (H-H): 5 - 85%
Operating relative humidity (H-H): 5 - 85%
Storage temperature (T-T): -40 - 85 °C
Operating temperature (T-T): -40 - 85 °C

Weight & dimensions
Weight: 15.5 g
Height: 13 mm
Width: 55.9 mm
Depth: 13.4 mm

Performance
Maximum data transfer rate: 2500 Mbit/s
Tx power (max): 0 dBmW
Maximum transfer distance: 40000 m
Single-mode fiber (SMF) supported: Yes
Copper ethernet cabling technology: 2.5GBASE
SFP transceiver type: Fiber optic
Digital Diagnostics Monitoring (DDM): Yes
Wavelength: 1310 nm
Interface type: SFP
Tx power (min): -5 dBmW
Fiber optic connector: LC
Fiber cable diameters supported (core/cladding): 9/125 µm

Packaging data
Package width: 110 mm
Package weight: 41.66 g
Package height: 25 mm
Package depth: 67 mm

Packaging content
Quantity per pack: 1 pc(s)

Certificates
Compliance certificates: UL, TÜV mark, Federal Communications Commission (FCC), RoHS, CE, CB

Logistics data
Country of origin: Taiwan
Products per master (outer) case: 100 pc(s)
Master (outer) cases per pallet: 34 pc(s)
Customs product code (TARIC): 8517620000
Pallet gross width: 120 cm
Master (outer) case width: 365 mm
Pallet gross height: 164.4 cm
Master (outer) case gross weight: 5.5 kg
Master (outer) case length: 343 mm
Master (outer) case height: 250 mm
Pallet gross length: 80 cm
