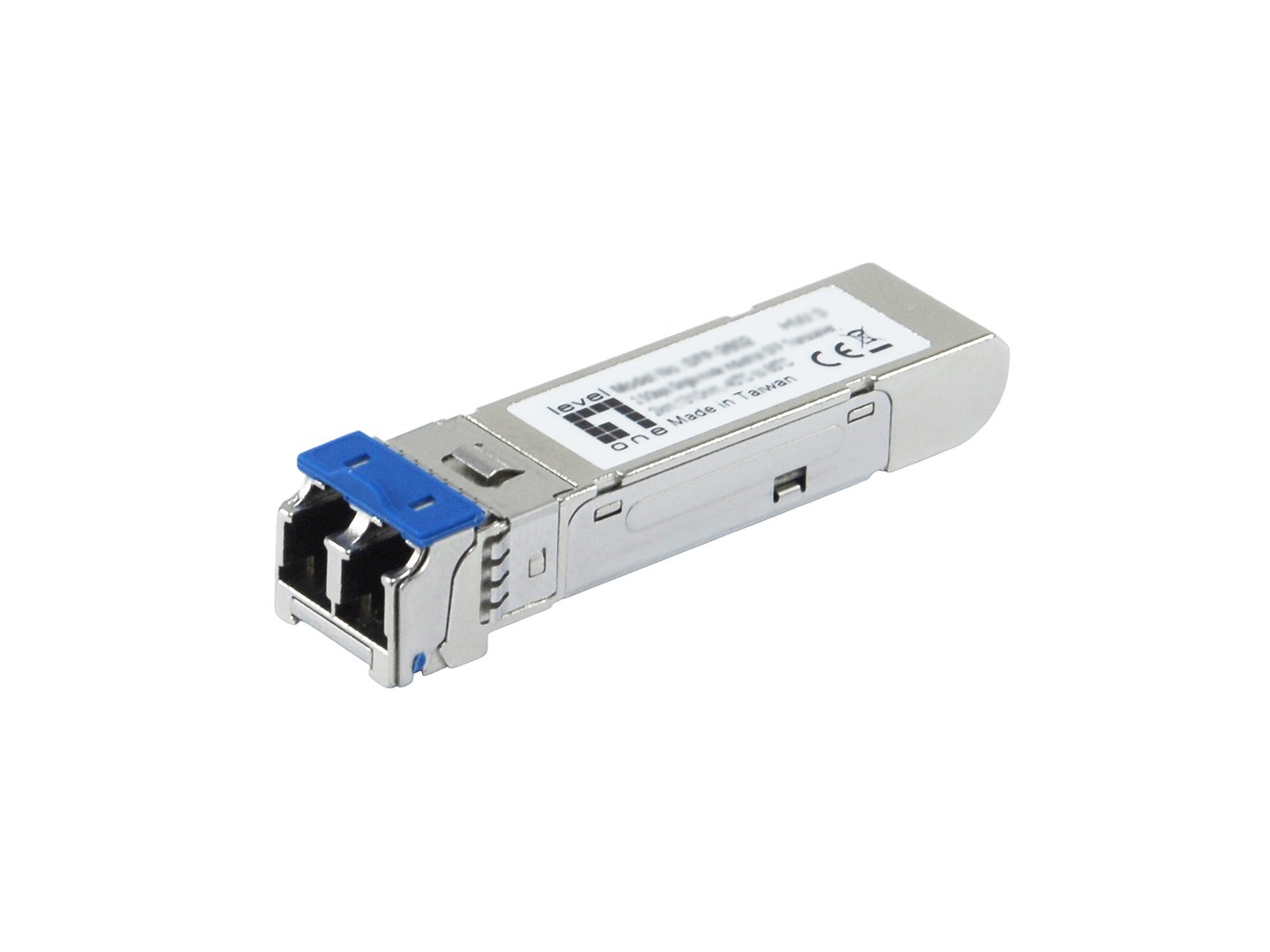

LevelOne 2.5Gbps Single-mode Industrial SFP Transceiver, 40km, 1550nm, -40°C to 85°C

Features
Form factor: SFP
Plug and Play: Yes
Hot-swap: Yes
Product colour: Silver

Power
Power consumption (typical): 1 W

Operational conditions
Storage relative humidity (H-H): 5 - 85%
Operating relative humidity (H-H): 5 - 85%
Operating temperature (T-T): -40 - 85 °C
Storage temperature (T-T): -40 - 85 °C

Weight & dimensions
Height: 13 mm
Width: 55.9 mm
Depth: 13.4 mm
Weight: 15.5 g

Performance
Single-mode fiber (SMF) supported: Yes
Digital Diagnostics Monitoring (DDM): Yes
SFP transceiver type: Fiber optic
Maximum transfer distance: 40000 m
Fiber optic connector: LC
Tx power (max): 0 dBmW
Fiber cable diameters supported (core/cladding): 9/125 µm
Tx power (min): -5 dBmW
Maximum data transfer rate: 2500 Mbit/s
Wavelength: 1550 nm
Interface type: SFP
Copper ethernet cabling technology: 2.5GBASE

Packaging data
Package width: 110 mm
Package weight: 41.66 g
Package height: 25 mm
Package depth: 67 mm

Packaging content
Quantity per pack: 1 pc(s)

Certificates
Compliance certificates: TÜV mark, UL, Federal Communications Commission (FCC), RoHS, CE, CB

Logistics data
Pallet gross width: 120 cm
Master (outer) case length: 343 mm
Pallet gross height: 164.4 cm
Pallet gross length: 80 cm
Master (outer) case height: 250 mm
Master (outer) case width: 365 mm
Master (outer) case gross weight: 5.5 kg
Products per master (outer) case: 100 pc(s)
Master (outer) cases per pallet: 34 pc(s)
Country of origin: Taiwan
Customs product code (TARIC): 8517620000
