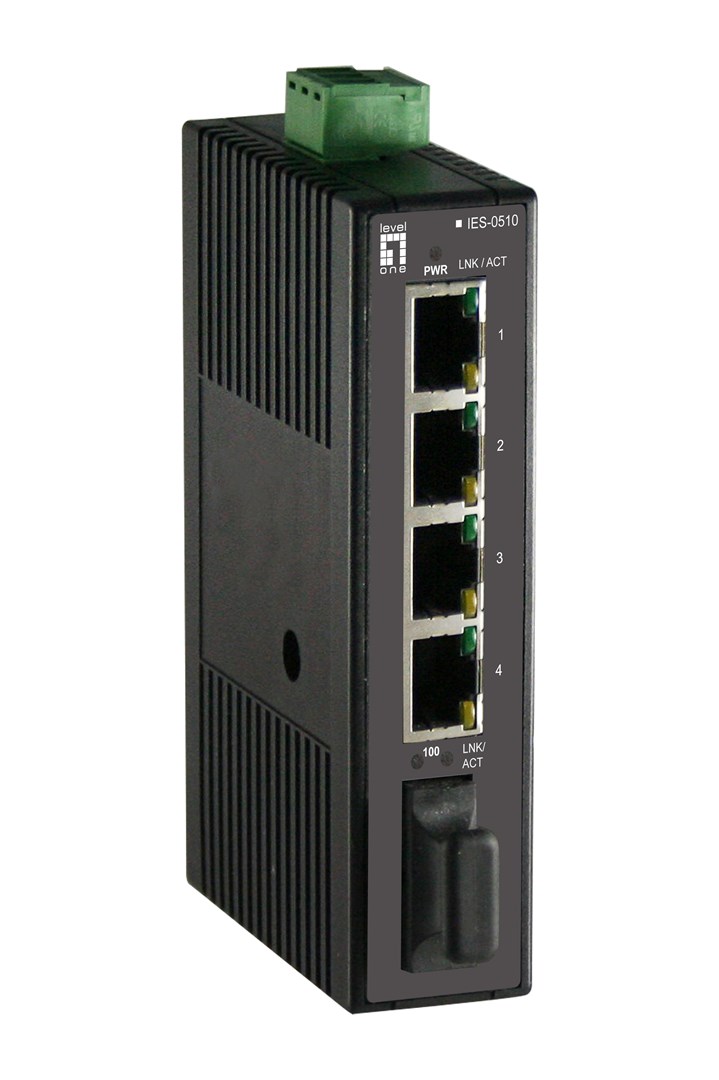

LevelOne 5-Port Fast Ethernet Industrial Switch, DIN-Rail, 1 x SC Multi-Mode Fiber, -20°C to 70°C

Design
Housing material: Plastic
Safety: UL60950-1
International Protection (IP) code: IP30
Product colour: Black
LED indicators: Activity, Speed, Link

Power
Input voltage: 12 - 48 V
Power consumption (max): 4.3 W

Operational conditions
Operating temperature (T-T): -10 - 60 °C
Storage temperature (T-T): -25 - 85 °C
Operating relative humidity (H-H): 5 - 95%

Management features
Quality of Service (QoS) support: Yes
Switch type: Unmanaged

Weight & dimensions
Height: 110 mm
Depth: 70 mm
Weight: 200 g
Width: 26 mm

Network
Networking standards: IEEE 802.3, IEEE 802.1p, IEEE 802.3az, IEEE 802.3x, IEEE 802.3u
Full duplex: Yes
Auto MDI/MDI-X: Yes
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
Auto-negotiation: Yes

Performance
Mean time between failures (MTBF): 1071085 h

Packaging data
Package type: Box
Package height: 221 mm
Package width: 180 mm
Package weight: 460 g
Package depth: 79 mm

Packaging content
Quick start guide: Yes

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 4
Fiber optic connector: SC
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)

Logistics data
Harmonized System (HS) code: 85176990
Country of origin: Taiwan

Data transmission
Packet forwarding rate (10 Mbps): 14880 pps
Packet forwarding rate (100 Mbps): 148810 pps
Store-and-forward: Yes
MAC address table: 2048 entries
Packet buffer memory: 0.384 MB

Power over Ethernet (PoE)
Power over Ethernet (PoE): No

Optical fiber
Fiber type: Multi-mode
Fiber ethernet cabling technology: 100BASE-FX
