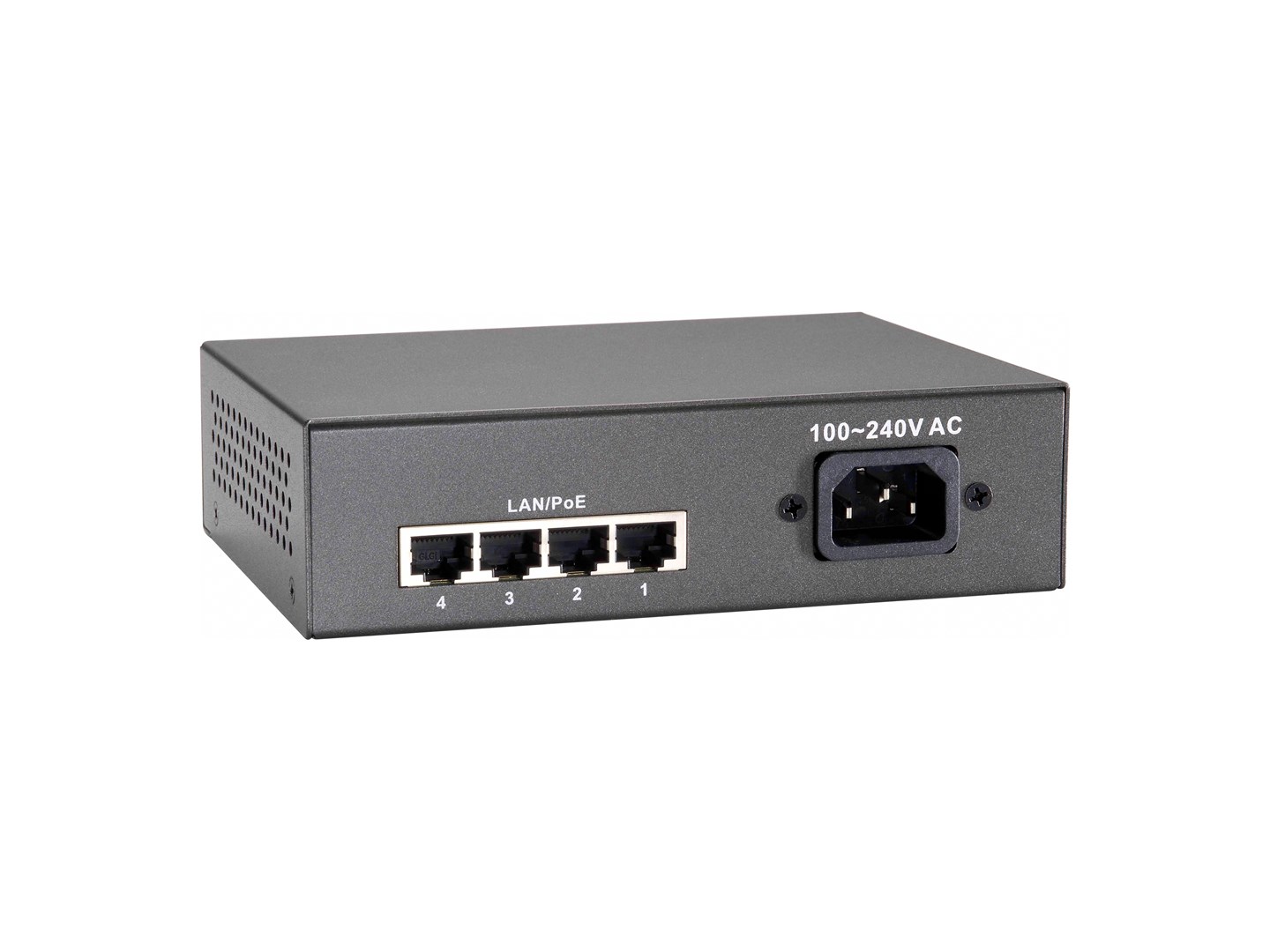

LevelOne 5-Port Fast Ethernet PoE Switch, 802.3at /af PoE, 4 PoE Outputs, 65W

Design
Product colour: Grey
LED indicators: Activity, PoE, Power

Power
AC input frequency: 50 - 60 Hz
Power protection features: Over current
Input current: 2 A
AC input voltage: 100 - 240 V
Power consumption (typical): 65 W

Operational conditions
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C

Weight & dimensions
Width: 122 mm
Height: 160 mm
Depth: 44 mm
Weight: 800 g

Network
Networking standards: IEEE 802.3at, IEEE 802.3u, IEEE 802.3af, IEEE 802.3x, IEEE 802.3
Auto-negotiation: Yes
Auto MDI/MDI-X: Yes
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
Full duplex: Yes
10G support: No
Flow control support: Yes

Performance
Buffer size: 48 KB

Packaging data
Package width: 145 mm
Package depth: 80 mm
Package height: 235 mm
Package type: Box
Package weight: 1.1 kg

Packaging content
Quick start guide: Yes
Cables included: AC

Ports & interfaces
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity: 5

Logistics data
Country of origin: Taiwan
Harmonized System (HS) code: 85176990
Products per master (outer) case: 10 pc(s)
Master (outer) case width: 310 mm
Master (outer) case height: 422 mm
Master (outer) case length: 252 mm
Master (outer) case gross weight: 12.5 kg

Data transmission
Store-and-forward: Yes
MAC address table: 1000 entries
Packet forwarding rate (10 Mbps): 14880 pps
Packet forwarding rate (100 Mbps): 148000 pps

Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port: 30 W
Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) budget: 62 W
Power over Ethernet plus (PoE+) ports quantity: 4
