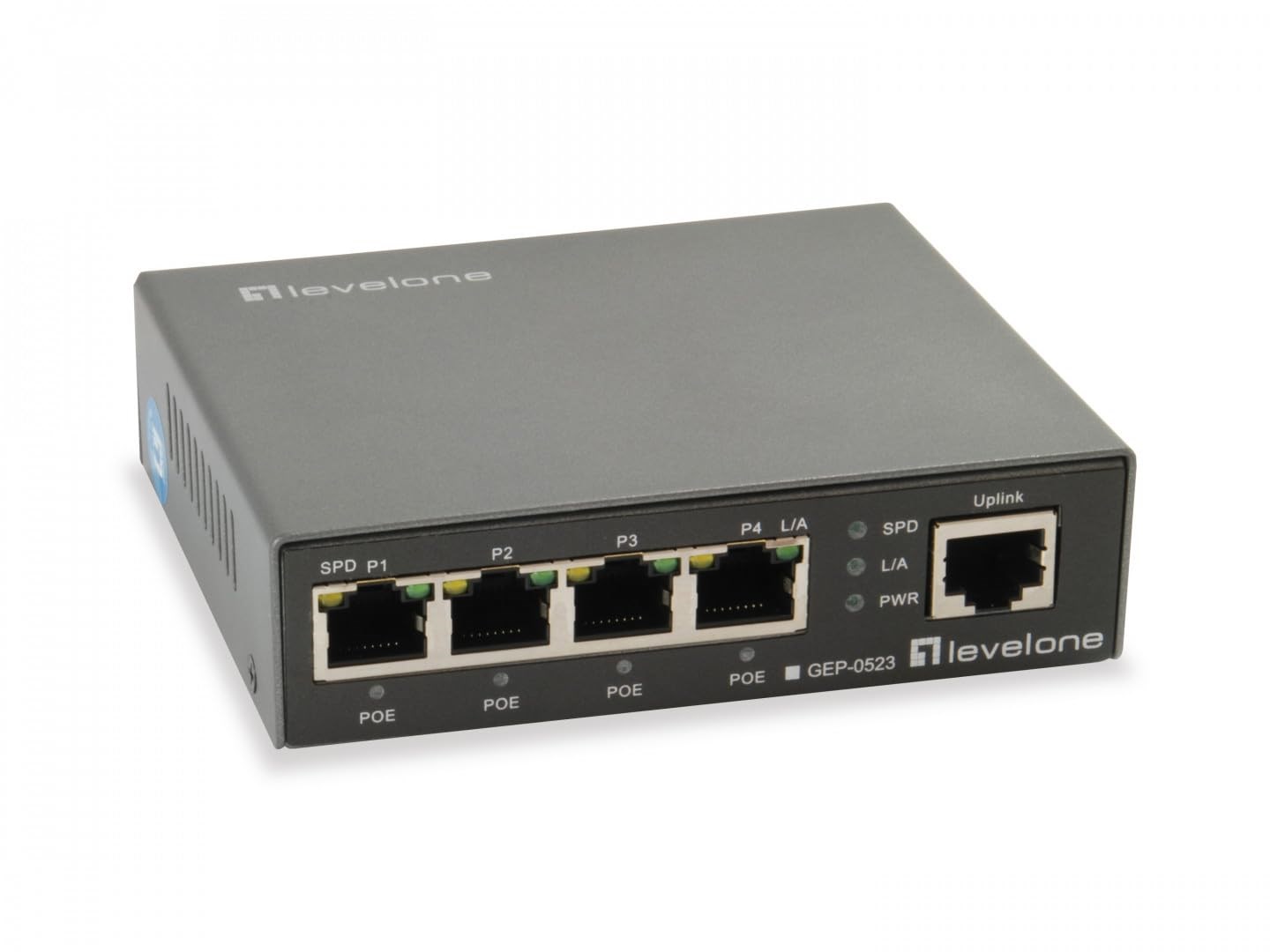

LevelOne 5-Port Gigabit PoE Switch, 802.3at /af PoE, 4 PoE Outputs, 60W

Design
Rack mounting: No
Product colour: Black

Power
DC input voltage: 52 - 57 V
Power protection features: Short circuit, Over current
Power supply included: Yes
Power consumption (typical): 5 W
Input current: 1.25 A

Operational conditions
Operating temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 5 - 90%
Storage temperature (T-T): -20 - 70 °C
Storage relative humidity (H-H): 5 - 90%

Management features
Traffic classification: Yes

Weight & dimensions
Depth: 30 mm
Width: 96 mm
Height: 111 mm
Weight: 350 g

Network
10G support: No
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3at, IEEE 802.3x, IEEE 802.3af

Performance
Mean time between failures (MTBF): 30000 h

Packaging data
Package weight: 750 g
Package width: 190 mm
AC adapter included: Yes
Package depth: 55 mm
Package height: 230 mm

Packaging content
Quick start guide: Yes

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
MAC address table: 8000 entries
Jumbo frames: 9126
Jumbo frames support: Yes
Store-and-forward: Yes
Packet buffer memory: 1 MB
Maximum data transfer rate: 1000 Gbit/s

Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 60 W
Power over Ethernet (PoE) ports quantity: 4
Power over Ethernet (PoE): Yes
