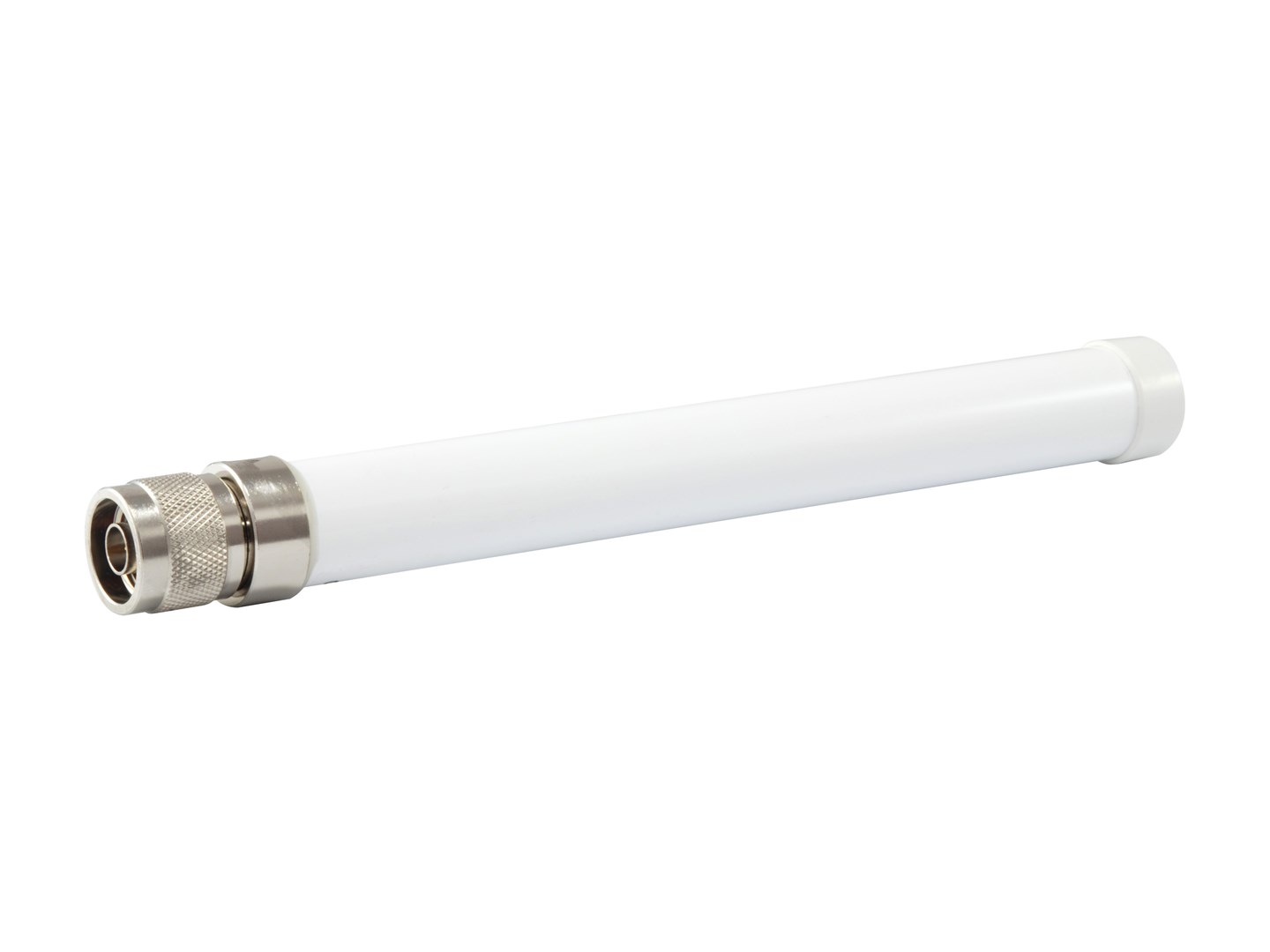

LevelOne 5dBi /8dBi 2.4GHz /5GHz Dual Band Omnidirectional Antenna, Indoor /Outdoor

Features
Antenna connector type: N-type
Connector gender: Female
Product colour: White
Antenna type: Omni-directional antenna
Voltage Standing Wave Ratio (VSWR): 2
Polarization: Vertical polarization

Operational conditions
Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions
Depth: 203 mm
Width: 22 mm
Weight: 860 g
Height: 22 mm

Performance
Networking standards: IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n, IEEE 802.11a, IEEE 802.11b
Frequency band: 2.4 - 5 GHz
Antenna gain level (max): 8 dBi
Horizontal beam width (2.4 GHz): 360°
Antenna gain (2.4 GHz): 5 dBi
Horizontal beam width (5 GHz): 360°
Impedance: 50 Ω
Gain: 5 / 8 dBi
Vertical beam width (2.4 GHz): 51.7°
Antenna gain (5 GHz): 8 dBi
Vertical beam width (5 GHz): 27.7°

Packaging data
Package depth: 60 mm
Package width: 70 mm
Package weight: 192 g
Package type: Blister
Package height: 265 mm

Packaging content
Quantity per pack: 1 pc(s)

Logistics data
Country of origin: Taiwan
Master (outer) case length: 560 mm
Master (outer) case volume: 50 cm³
Master (outer) case width: 480 mm
Master (outer) case gross weight: 11 kg
Master (outer) case height: 290 mm
Products per master (outer) case: 50 pc(s)
Harmonized System (HS) code: 85177100
