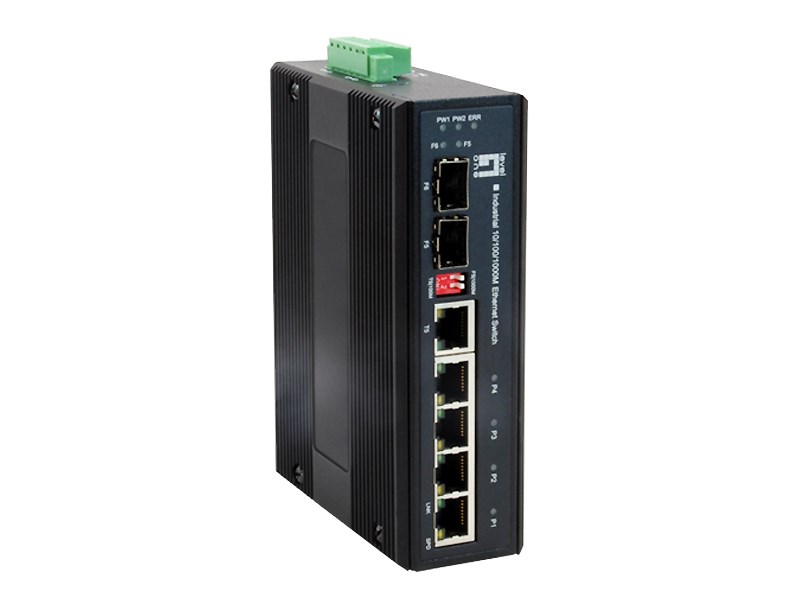

LevelOne 6-Port Gigabit Industrial Switch, 1 x SFP, 1 x SFP /RJ45 Combo, -40°C to 75°C, DIN-Rail

Design
Wall mountable: Yes
International Protection (IP) code: IP30
Housing material: Metal
DIN rail mounting: Yes
LED indicators: Activity, Link, Power
Product colour: Black

Power
Power protection features: Reverse polarity, Overload
Input voltage: 5 - 56 V

Operational conditions
Storage relative humidity (H-H): 5 - 95%
Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -40 - 85 °C

Weight & dimensions
Depth: 105 mm
Height: 38 mm
Width: 40 mm
Weight: 720 g

Network
Full duplex: Yes
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
Flow control support: Yes
10G support: No
Networking standards: IEEE 802.3z, IEEE 802.3x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Packaging data
Package height: 65 mm
Package type: Box
Package width: 215 mm
Package depth: 165 mm
Package weight: 120 g

Packaging content
Quick start guide: Yes

Ports & interfaces
SFP module slots quantity: 1
Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Other features
Terminal block port: Yes

Logistics data
Harmonized System (HS) code: 85176990
Country of origin: Taiwan

Data transmission
Switching capacity: 12 Gbit/s
Packet forwarding rate (1 Gbps): 1488000 pps
Packet buffer memory: 1 MB
Jumbo frames: 10000
Store-and-forward: Yes
Packet forwarding rate (100 Mbps): 148000 pps
Packet forwarding rate (10 Mbps): 14880 pps
MAC address table: 1024 entries

Power over Ethernet (PoE)
Power over Ethernet (PoE): No
