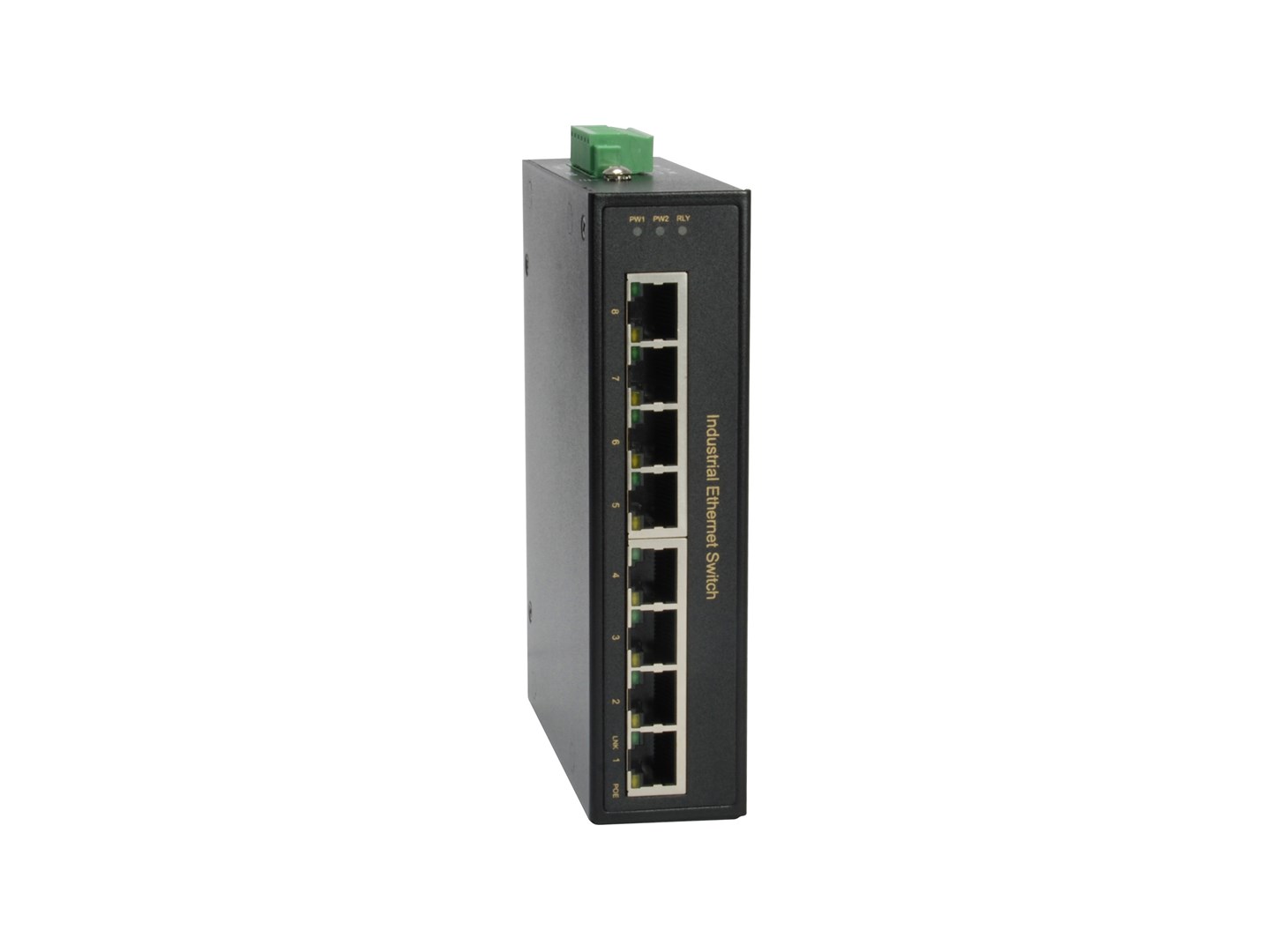

LevelOne 8-Port Fast Ethernet PoE Industrial Switch, 4 PoE Outputs, 802.3at /af PoE, 126W, -40°C to 75°C

Design
Safety: IEC EN60950-1
Wall mountable: Yes
DIN rail mounting: Yes
Product colour: Black
LED indicators: Link, Power, Status

Power
Redundant power supply (RPS) support: Yes
Power consumption (typical): 5.76 W

Operational conditions
Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions
Height: 142 mm
Width: 105 mm
Depth: 36.2 mm
Weight: 525 g

Network
Auto-negotiation: Yes
Networking standards: IEEE 802.3, IEEE 802.3at, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
Auto MDI/MDI-X: Yes
10G support: No
Flow control support: Yes
Full duplex: Yes
Copper ethernet cabling technology: 100BASE-TX, 10BASE-T

Performance
Plug and Play: Yes
Mean time between failures (MTBF): 510304 h

Packaging data
Terminal block included: Yes
Package weight: 730 g
Package depth: 65 mm
Package height: 215 mm
Wall mounting kit: Yes
Package type: Box
Package width: 165 mm
DIN rail included: Yes

Packaging content
Manual: Yes

Ports & interfaces
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity: 12

Other features
Terminal block port: Yes

Logistics data
Master (outer) case length: 240 mm
Master (outer) case gross weight: 12.6 kg
Country of origin: Taiwan
Harmonized System (HS) code: 85176990
Products per master (outer) case: 16 pc(s)
Master (outer) case width: 350 mm
Master (outer) case height: 570 mm

Data transmission
MAC address table: 1000 entries
Packet buffer memory: 1 MB
Store-and-forward: Yes
Switching capacity: 1.6 Gbit/s

Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port: 30 W
Power over Ethernet plus (PoE+) ports quantity: 4
Total Power over Ethernet (PoE) budget: 126 W
Power over Ethernet (PoE) voltage range: 44 - 56 V
Power over Ethernet (PoE): Yes
