Design
International Protection (IP) code: IP67
Mounting type: Ceiling/wall
Form factor: Bullet
Country of origin: China
Product colour: White
LED indicators: Power
Weatherproof: Yes
Power
Power consumption (max): 5 W
Power source type: DC, PoE
Power consumption (Power over Ethernet (PoE)): 7 W
Security
Video motion detection: Yes
Active tampering alarm: Yes
Anti-flicker: Yes
Mirror: Yes
Heartbeat: Yes
Password protection: Yes
Digital watermark: Yes
Operational conditions
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 50 °C
Management features
Reset button: Yes
Weight & dimensions
Width: 69.1 mm
Height: 172.7 mm
Depth: 66 mm
Weight: 280 g
Network
Ethernet interface type: Fast Ethernet
Number of users: 32 user(s)
Number of simultaneous live view channels: 6 channels
User access level: Administrator, Operator, User
Wi-Fi: No
Ethernet LAN: Yes
Networking standards: IEEE 802.3u, IEEE 802.3af, IEEE 802.3
Supported network protocols: IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, QoS
Bluetooth: No
Quality of Service (QoS) support: Yes
Live view: Yes
Certification: CE/FCC
Performance
Placement supported: Indoor & outdoor
Wide Dynamic Range (WDR): Yes
Connectivity technology: Wired

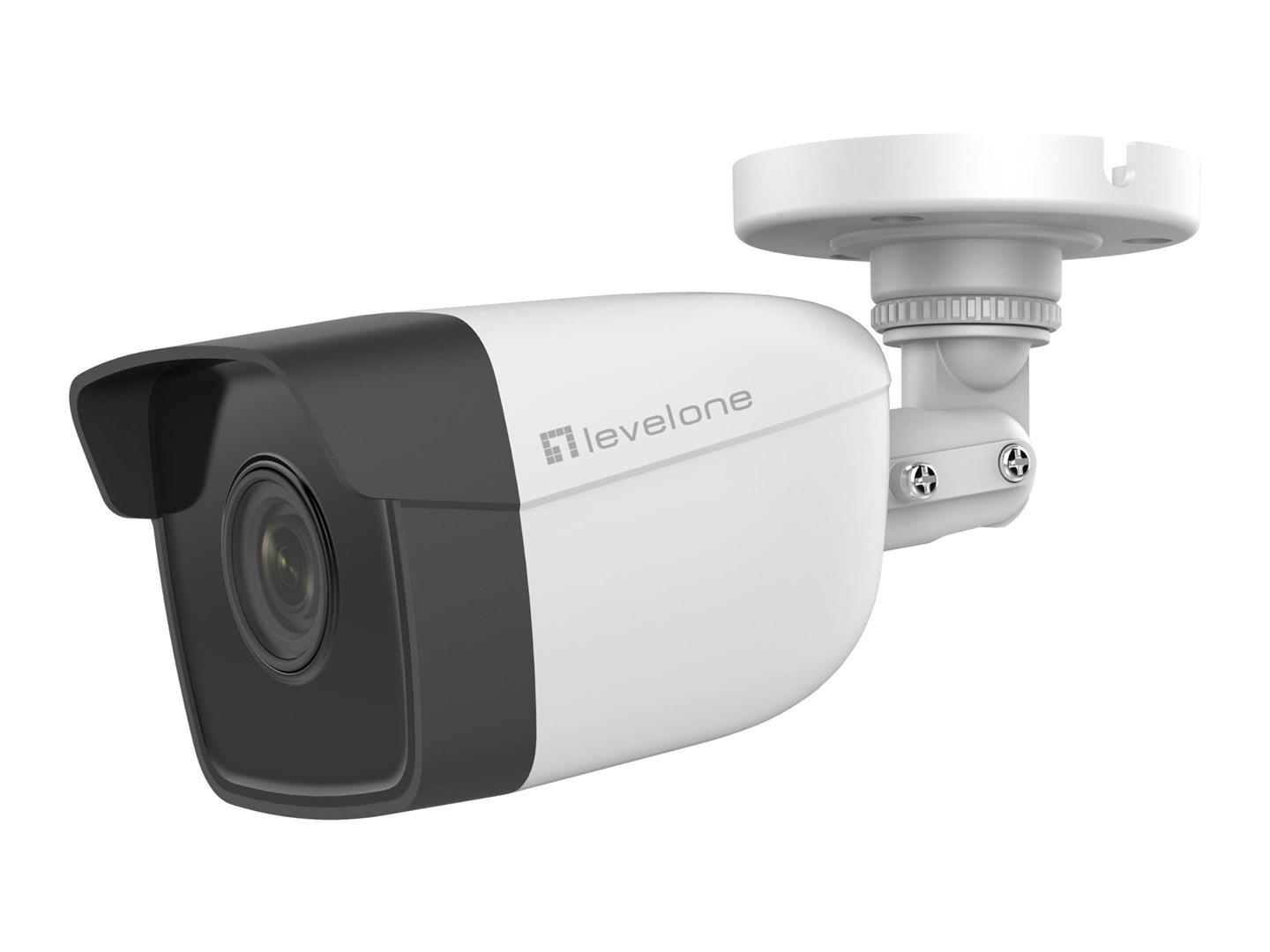

Type: IP security camera
Infrared (IR) cut-off filter: Yes
Packaging data
Package height: 216 mm
Package depth: 118 mm
Package weight: 530 g
Package width: 121 mm
Package type: Box
Packaging content
Number of cameras: 1
Manual: Yes
Resource CD: Yes
Storage
Built-in HDD: No
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Camera
Camera shutter speed: 1/3 - 1/100000 s
Field of view (FOV) angle: 83.6°
Other features
Browser supported: IIE7+, Chrome18-42, Firefox5.0+, Safari5.02+
Logistics data
Products per master (outer) case: 18 pc(s)
Harmonized System (HS) code: 85258900
Master (outer) case height: 650 mm
Master (outer) case width: 245 mm
Master (outer) case length: 360 mm
Master (outer) case gross weight: 9.6 kg
Image sensor
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Sensor type: CMOS
Video
Back Light Compensation (BLC): Yes
Bit rate: 32 Kbps - 8 Mbps
Total megapixels: 2 MP
Gain control type: Auto
Noise reduction technology: 3D noise reduction
Region of Interest (ROI) encoding: Yes
Noise reduction: Yes
Video formats supported: H.264, M-JPEG, H.265
Frame rate: 60 fps
Supported graphics resolutions: 1280 x 960, 1920 x 1080 (HD 1080), 320 x 240, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720)
Maximum resolution: 1920 x 1080 pixels
Privacy masking: Yes
Image quality adjustment: Saturation, Contrast, Brightness, Sharpness
Night vision
LED type: IR
Night vision distance: 30 m
Night vision: Yes
Lens system
Zoom capability: Yes
Digital zoom: 8x
Fixed focal length: 4 mm
Focus adjustment: 2.0
